NSN 5310-00-764-7274 MS210474, MS21047-4, R2000X4

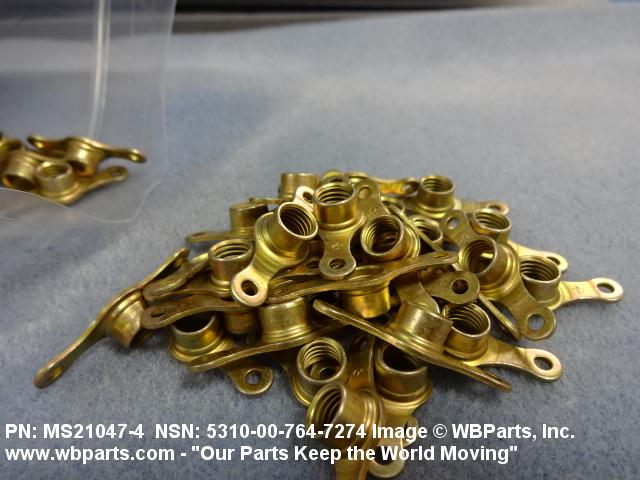

Product Details | PLATE SELF-LOCKING NUT
5310-00-764-7274 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS210474, MS21047-4, R2000X4, T2S428CPC, F52LHTA51A048, F52LHTA51A-048, 12600NM048, 12600NM-048, 5310-00-764-7274, 00-764-7274, 5310007647274, 007647274
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-764-7274 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

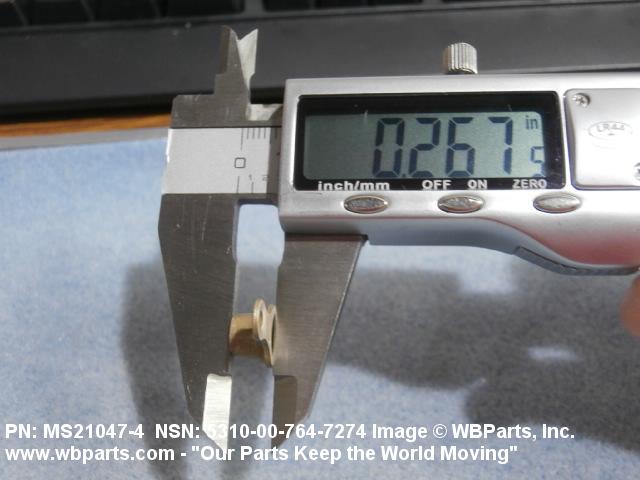

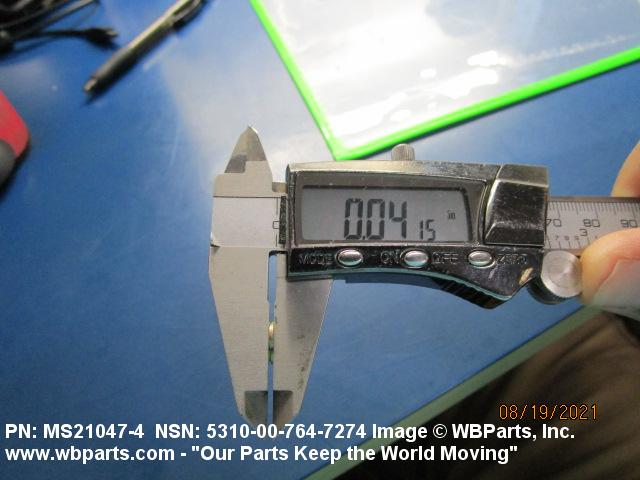

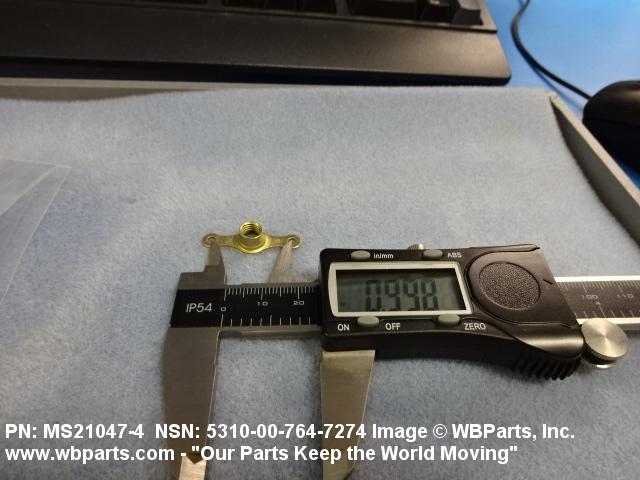

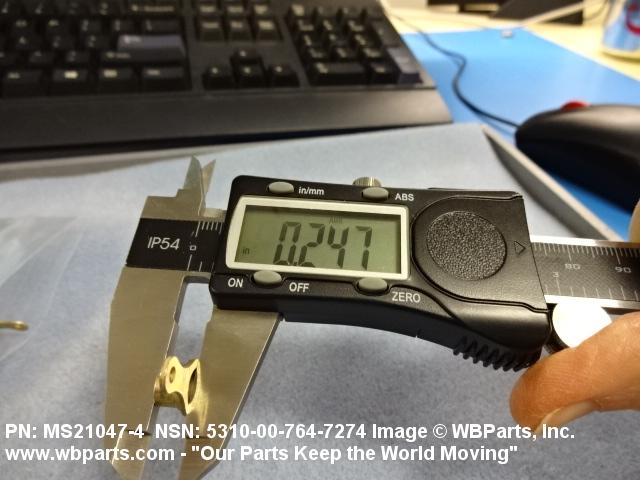

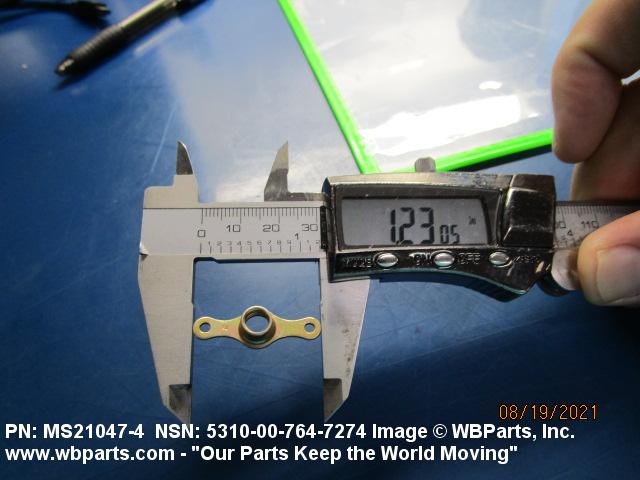

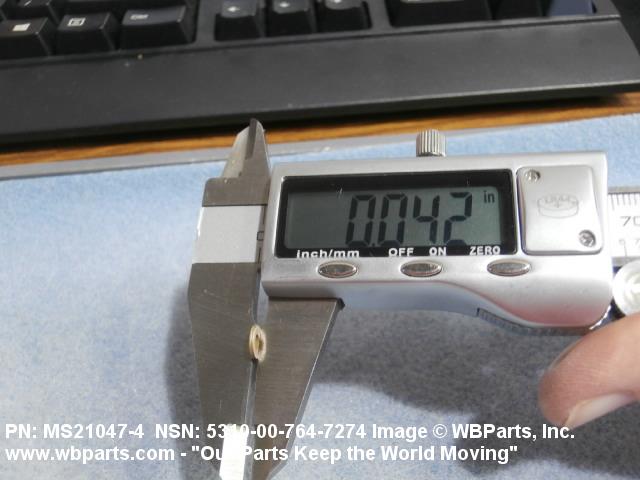

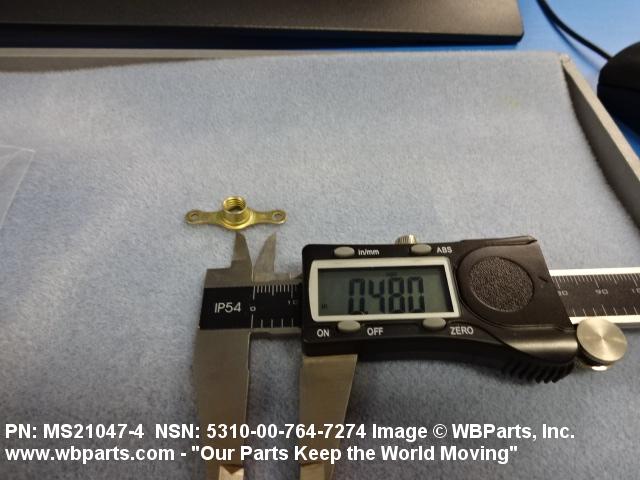

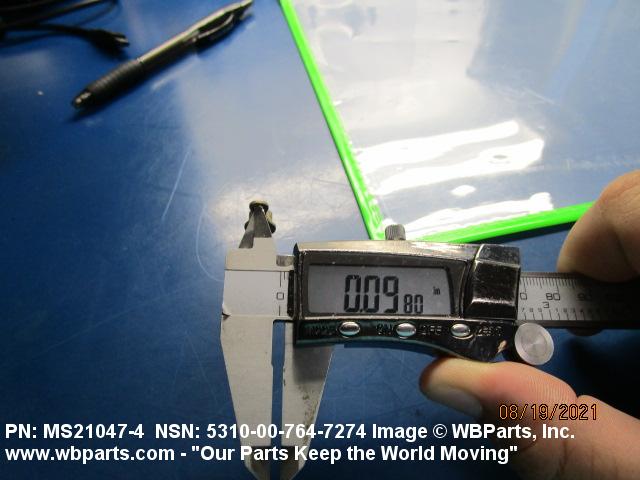

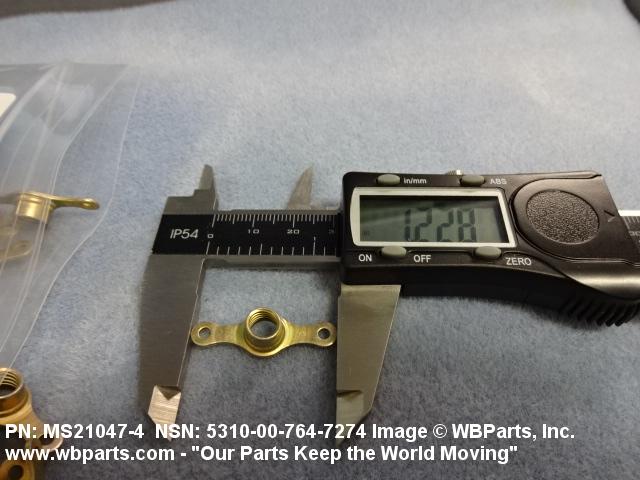

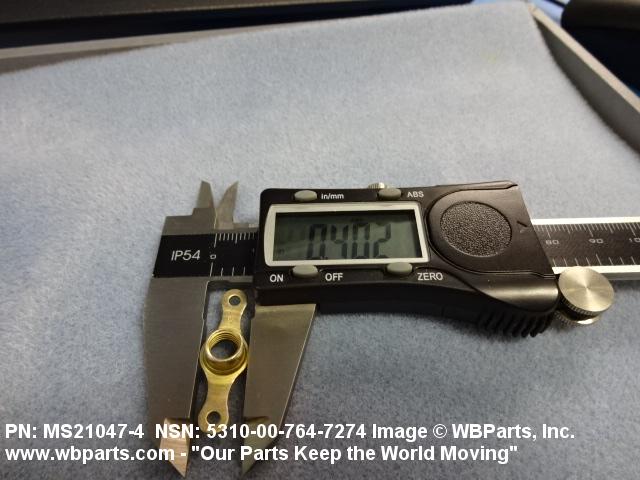

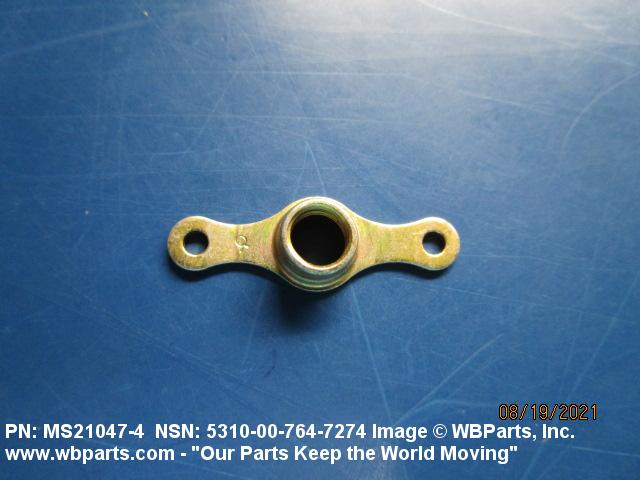

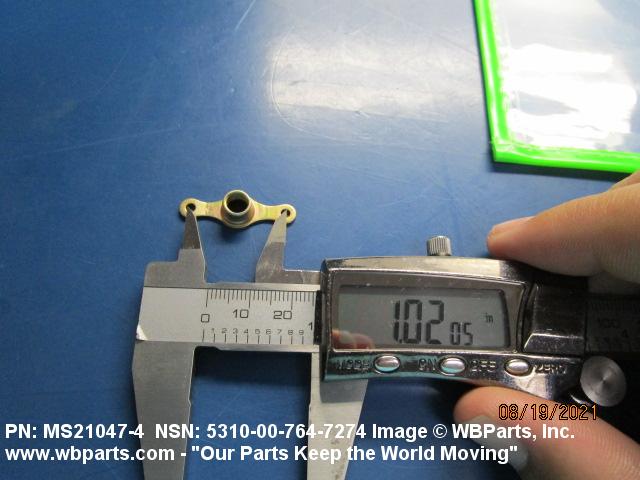

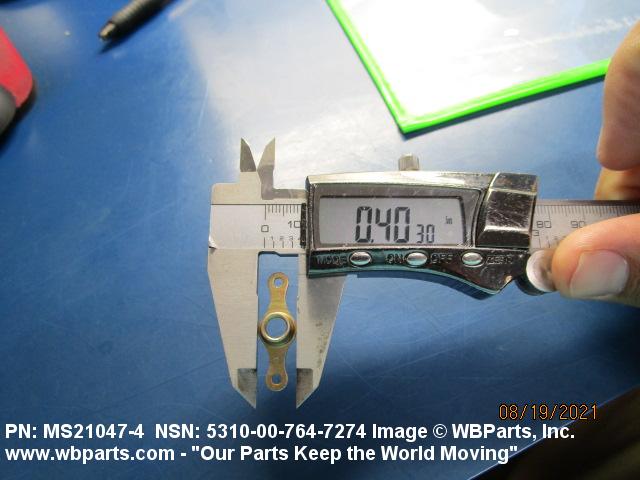

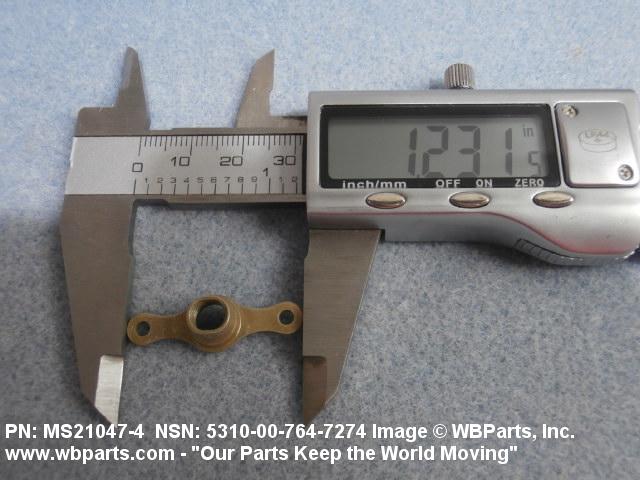

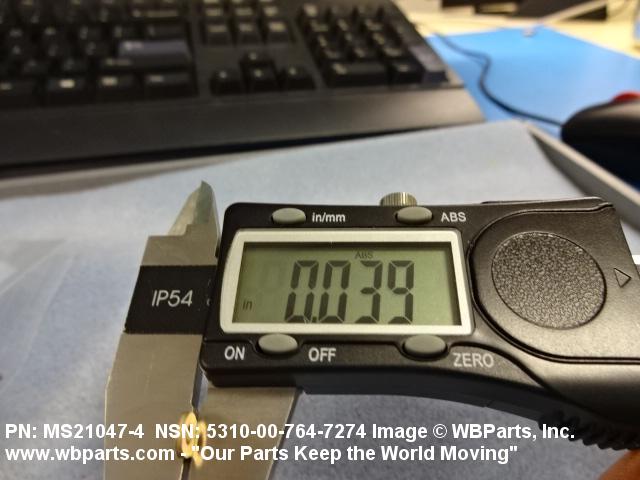

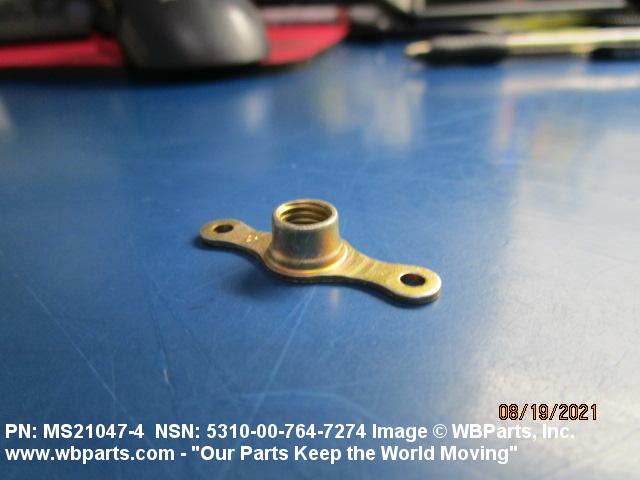

Drawings & Photos | NSN 5310-00-764-7274
Demand History | NSN 5310-00-764-7274
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS210474 | 2024-08-222 | 150 | United States |
| MS210474 | 2024-04-92 | 100 | ES |
| MS210474 | 2021-12-362 | 5 | Hong Kong |
| MS210474 | 2016-08-223 | 25 | us |
| MS21047-4 | 2014-06-157 | 50 | United States |
| MS210474 | 2008-03-62 | 50 | US |
Cross Reference | NSN 5310-00-764-7274
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12600NM-048 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 12600NM-048 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| F52LHTA51A-048 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| F52LHTA51A-048 | 72962 | HARVARD INDUSTRIES INC |
| MS21047-4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21047-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| R2000X4 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| T2S428CPC | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| T2S428CPC | 71087 | REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-764-7274
Related Products | NSN 5310-00-764-7274
Technical Data | NSN 5310-00-764-7274
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 1.260 INCHES MAXIMUM |
| NUT HEIGHT | 0.281 INCHES MAXIMUM |
| PLATE THICKNESS | 0.055 INCHES MAXIMUM |
| PLATE WIDTH | 0.375 INCHES MINIMUM AND 0.414 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.062 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.254 INCHES MINIMUM NUT |
| LUBRICATION | SOLUBLE LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.998 INCHES MINIMUM AND 1.002 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21047-4 |
