NSN 5310-00-764-7281 MS21047L08, H1S832NL, MILN25027

Product Details | PLATE SELF-LOCKING NUT

5310-00-764-7281 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21047L08, H1S832NL, MILN25027, MIL-N-25027, RM52LHTA51A82, RM52LHTA51A-82, T2S832, Z00.N5421375175, Z00N5421375175, 10121656 , 1260082, 12600-82, 22A882, 22A8-82, 5310-00-764-7281, 00-764-7281, 5310007647281, 007647281

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1960	00-764-7281	05280 ( NUT, SELF-LOCKING, PLATE )

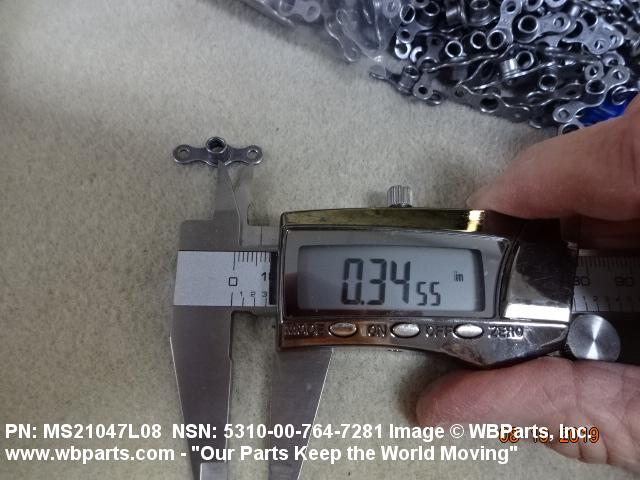

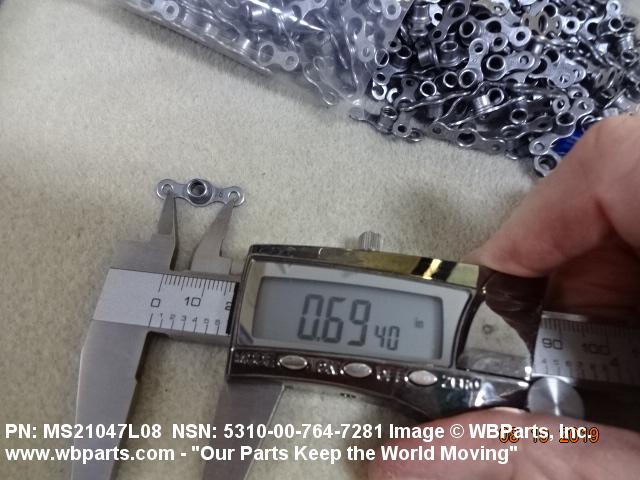

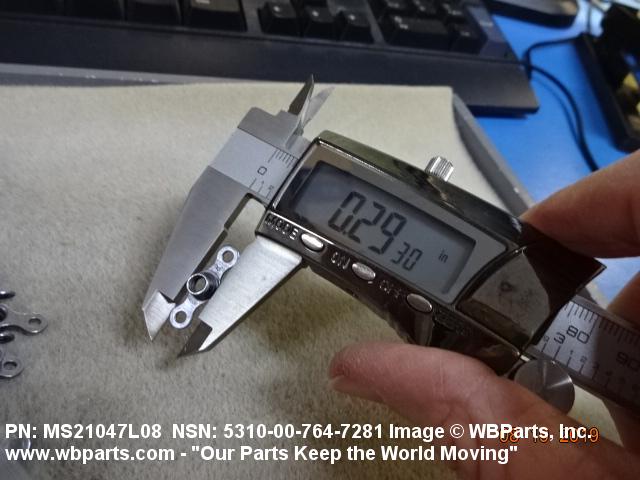

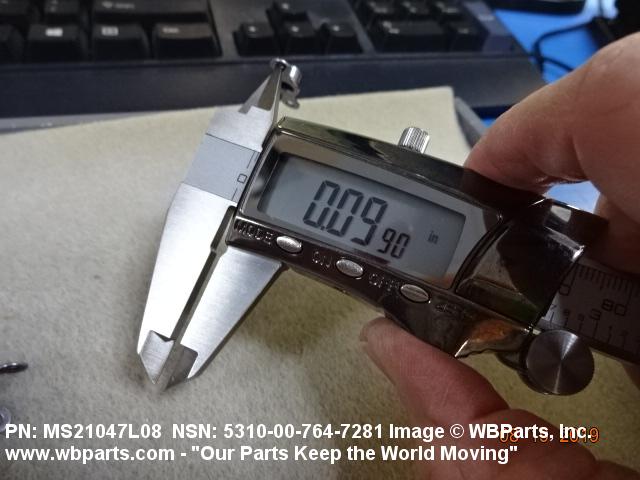

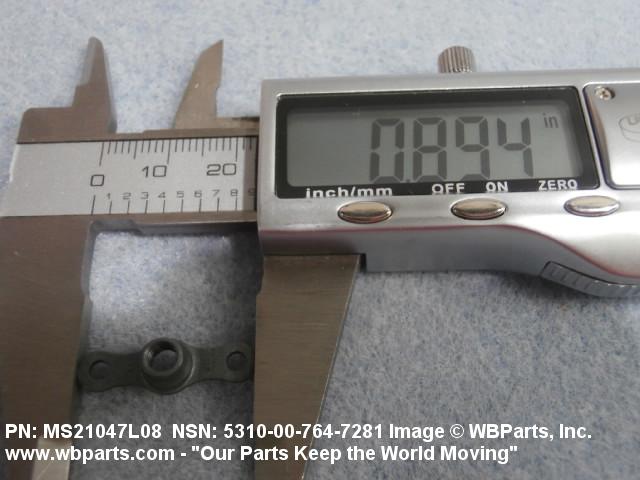

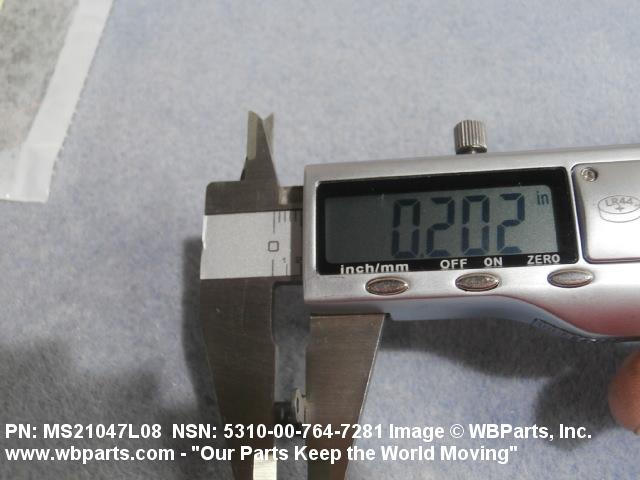

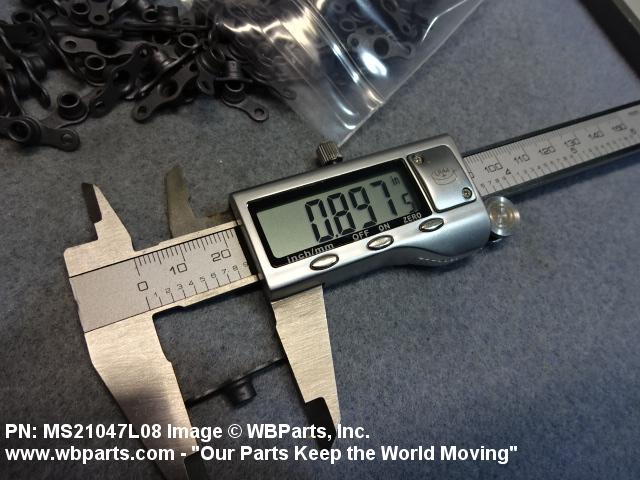

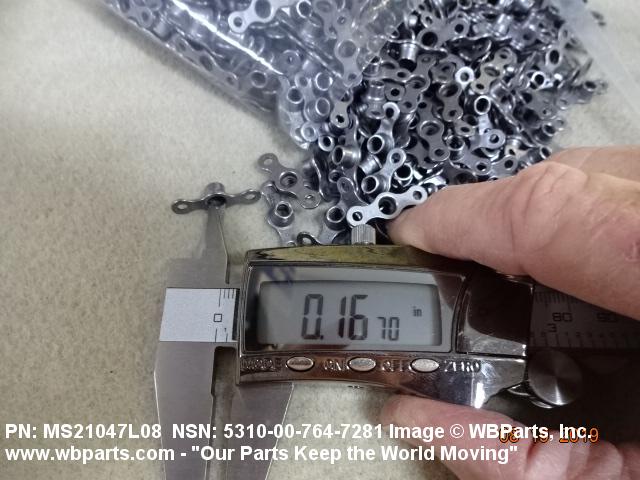

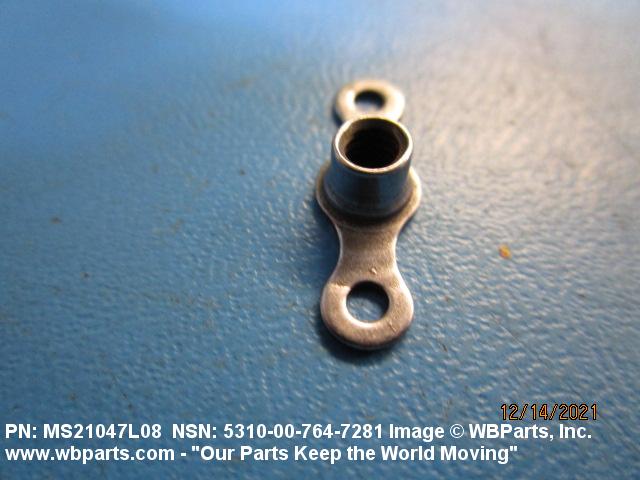

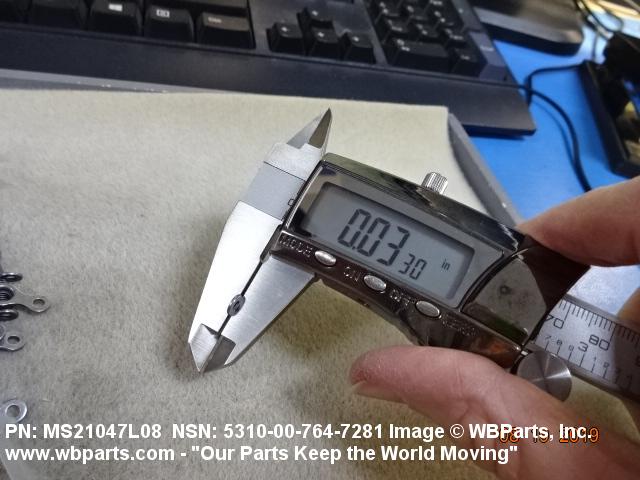

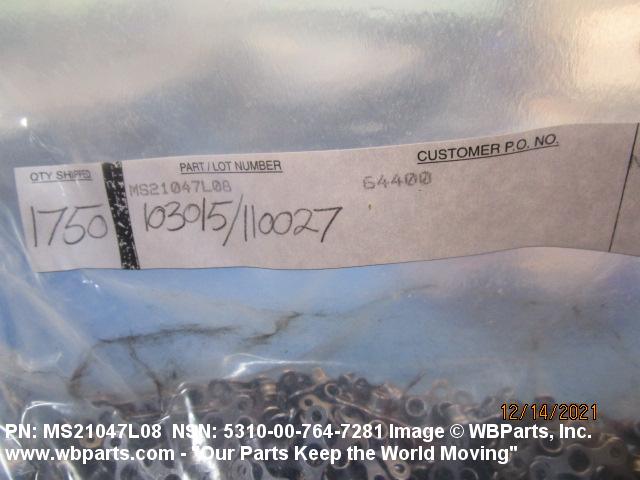

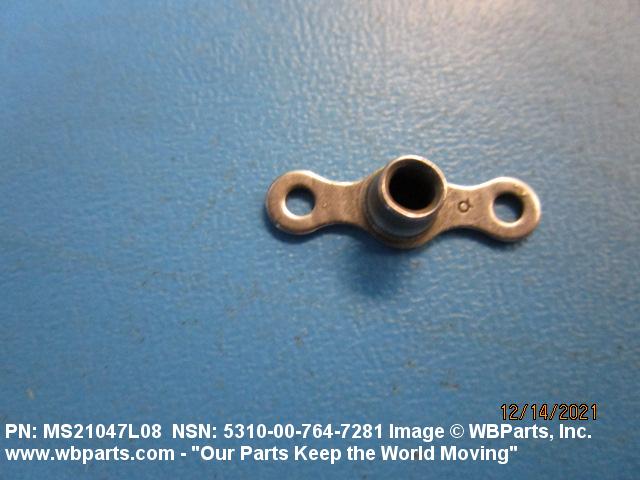

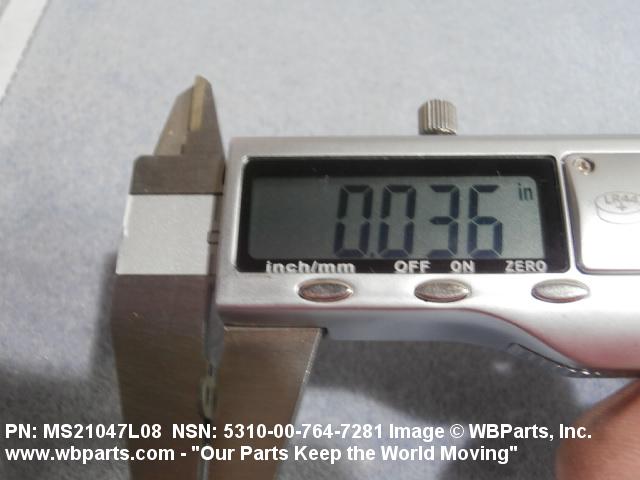

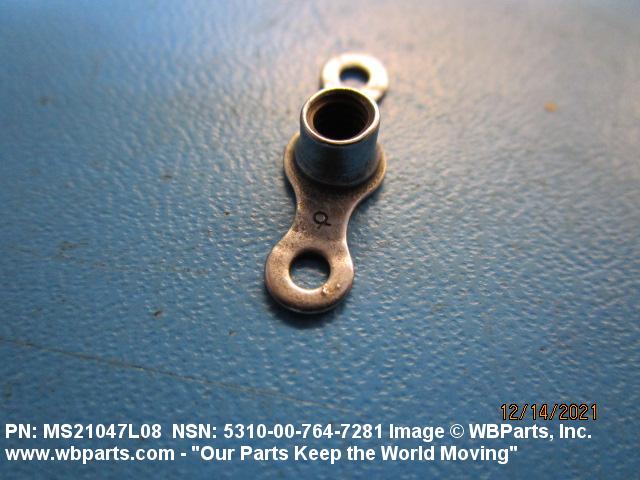

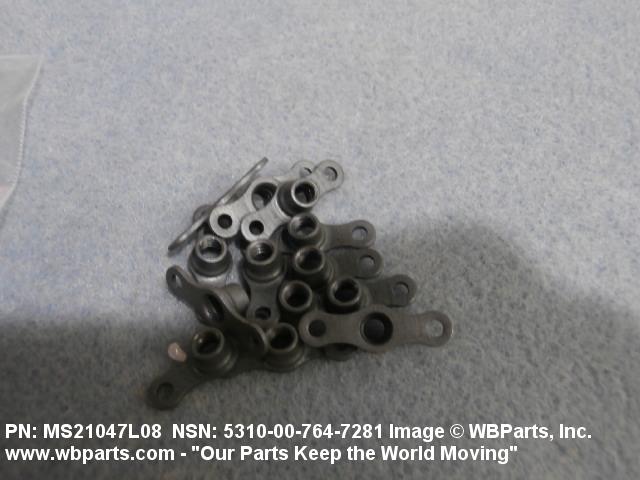

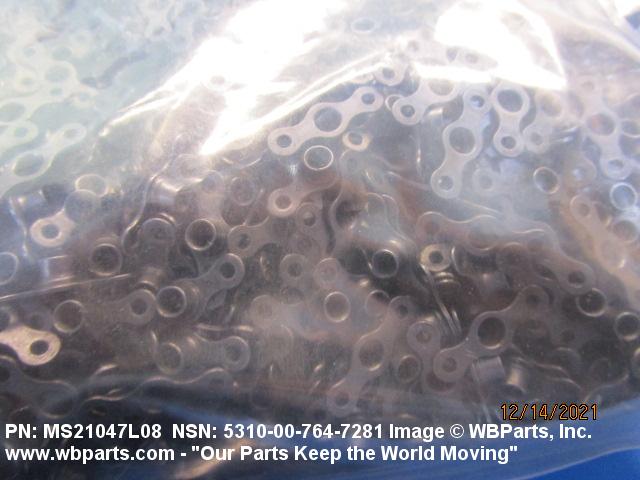

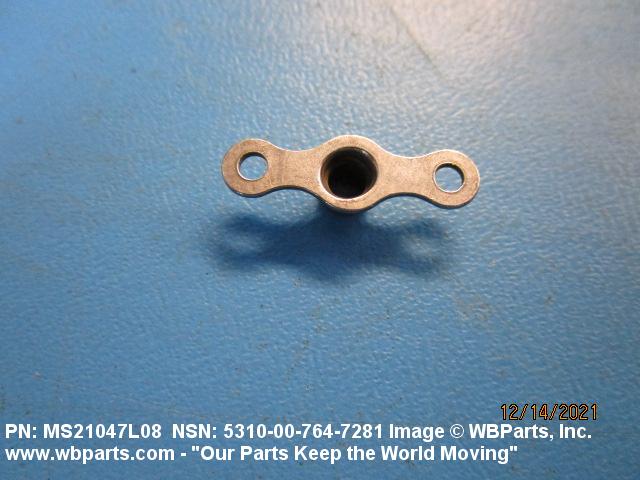

Drawings & Photos | NSN 5310-00-764-7281

Part Number	Request Date	QTY	Origin
MS21047L08	2024-04-110	1500	United States
MS21047L08	2024-04-110	1500	United States
MS21047L08	2023-12-352	6213	United States
MS21047L08	2023-12-352	1200	United States
MS21047L08	2023-12-348	6213	United States
MS21047L08	2023-11-314	6079	us
MILN25027	2023-08-236	54	US
MILN25027	2020-09-262	156	US
MS21047L08	2019-10-301	26	United States
MS21047L08	2015-05-138	32	United States
MS21047L08	2015-05-138	32	United States
MS21047L08	2015-04-92	5000	US
MS21047L08	2015-03-78	5000	United States
MS21047L08	2013-12-337	55	United States
MS21047L08	2013-11-316	50	China
MS21047L08	2013-04-102	2	India
MS21047L08	2012-11-310	50
MILN25027	2012-06-157	16	United States
MILN25027	2012-05-139	15	United States
MS21047L08	2012-04-94	100	United States
MILN25027	2011-09-265	28	US
MILN25027	2011-09-264	25	Canada
MILN25027	2011-02-49	5	US
MILN25027	2011-02-49	10	US
MILN25027	2011-02-49	40	US
MS21047L08	2010-09-258	3050	Serbia
MS21047L08	2010-09-258	4050	Serbia
MILN25027	2010-06-181	50	United States
MILN25027	2010-04-111	5000	US
MS21047L08	2010-03-60	200	US
MS21047L08	2009-12-350	10000	Serbia
MILN25027	2009-11-321	560	US
MILN25027	2009-10-281	8	Canada
MILN25027	2008-09-270	50	Italy

Cross Reference | NSN 5310-00-764-7281

Part Number	Cage Code	Manufacturer
12600-82	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
12600-82	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
22A8-82	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
22A8-82	72962	HARVARD INDUSTRIES INC
H1S832NL	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
MIL-N-25027	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS21047L08	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21047L08	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
RM52LHTA51A-82	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RM52LHTA51A-82	72962	HARVARD INDUSTRIES INC
T2S832	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
T2S832	71087	REPUBLIC FASTENER MFG. CORP. Use CAGE Code 52828 for Cataloging.
Z00.N5421375175	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-764-7281

Compare

Related Products | NSN 5310-00-764-7281

5310-00-764-7282, 5310-00-764-7283, 5310-00-764-7284, 5310-00-764-7285, 5310-00-764-7286

Technical Data | NSN 5310-00-764-7281

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE

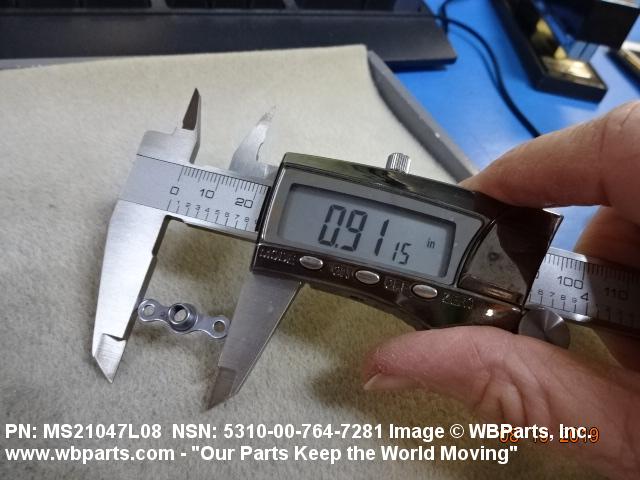

NUT LENGTH	0.948 INCHES MAXIMUM

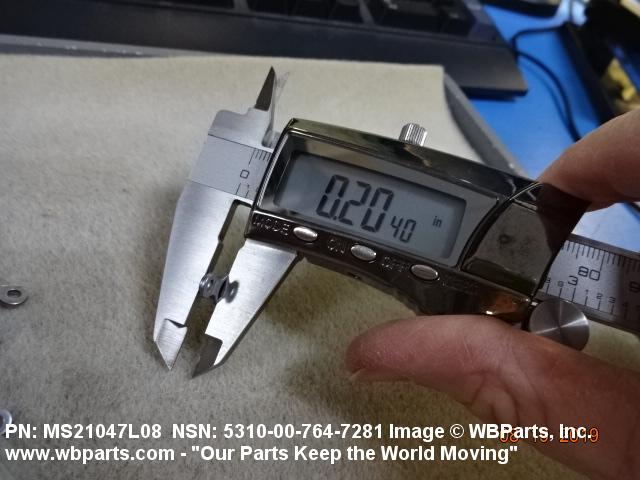

NUT HEIGHT	0.250 INCHES MAXIMUM
PLATE THICKNESS	0.047 INCHES MAXIMUM
PLATE WIDTH	0.277 INCHES MINIMUM AND 0.297 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT COUNTERBORE DEPTH	0.062 INCHES MINIMUM NUT
COUNTERBORE DIAMETER	0.168 INCHES MINIMUM NUT
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILN25027
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21047L08

Restrictions/Controls & Freight Information | NSN 5310-00-764-7281

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-764-7281

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	A	Item requires special handling or condemnation procedures for specific reasons, such as precious metal content, high dollar value, critical material, or hazardous materiel. Refer to appropriate manuals or directives for specific instructions.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
