NSN 5310-00-764-7282 MS21047L3, MS21047-L3, NAS1023A3
Product Details | PLATE SELF-LOCKING NUT

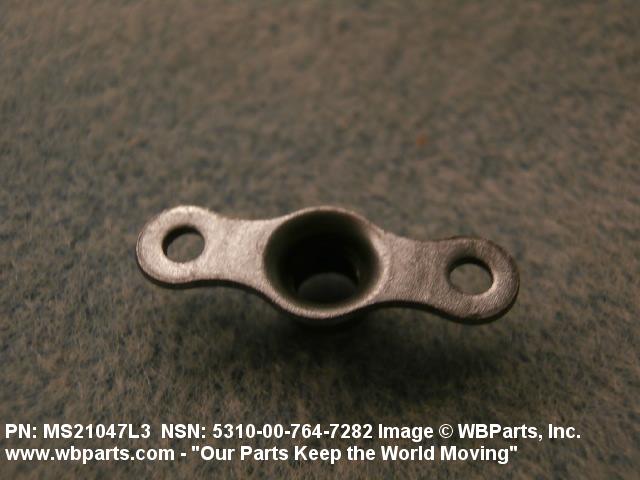

5310-00-764-7282 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21047L3, MS21047-L3, NAS1023A3, R2000A3, T2S1032, Z00.N5421375225, Z00N5421375225, K10001032, K1000-1032, 10121657 , 1260002, 12600-02, 5310-00-764-7282, 00-764-7282, 5310007647282, 007647282
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-764-7282 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

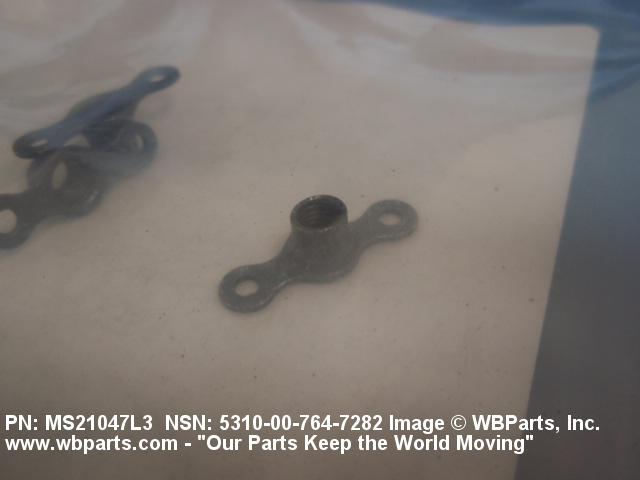

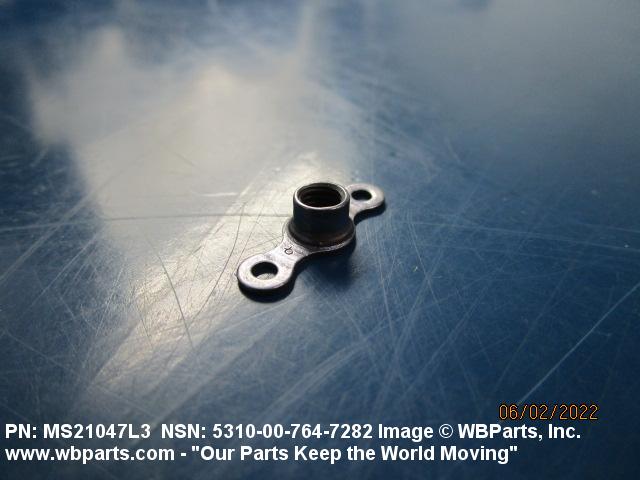

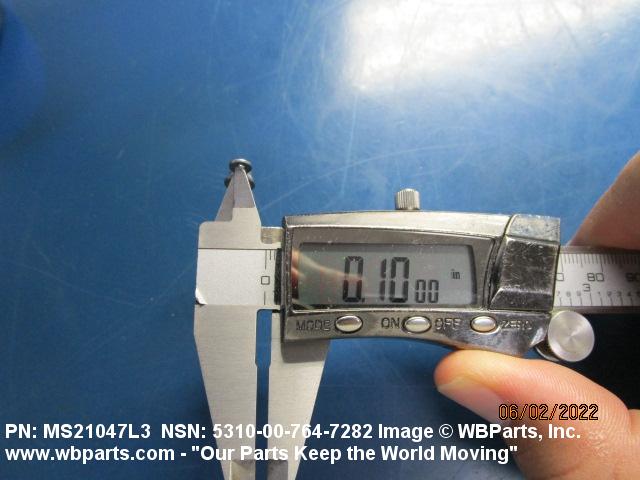

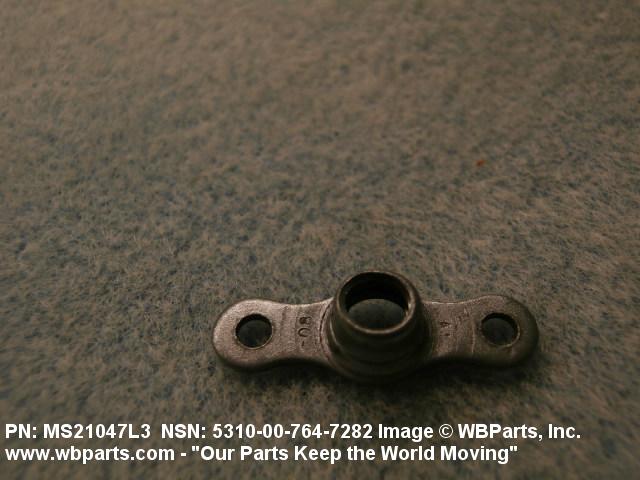

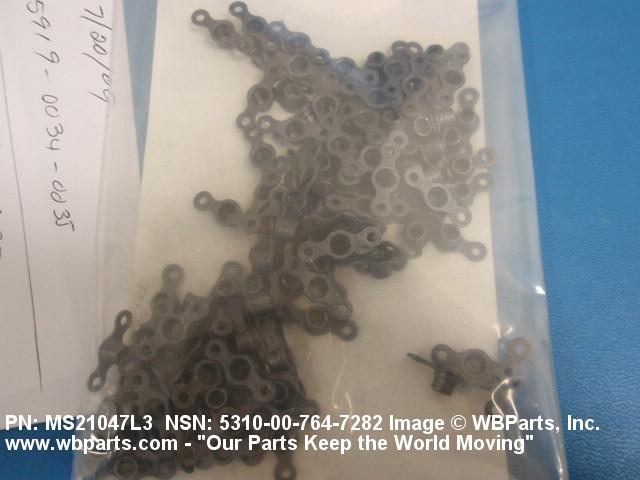

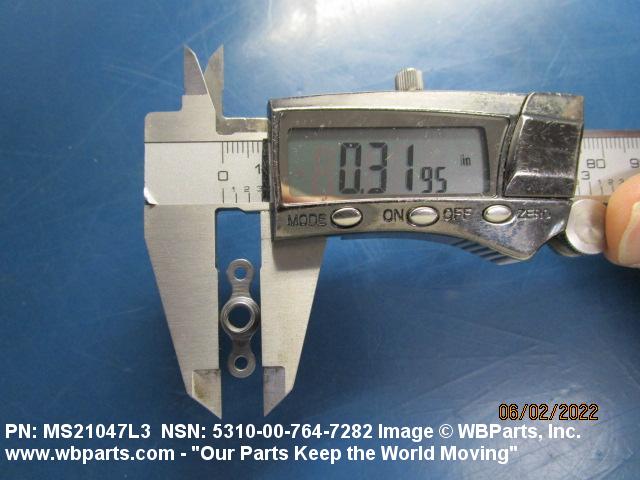

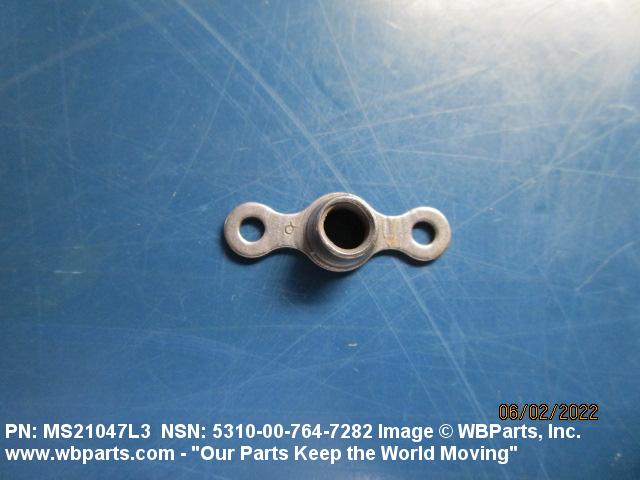

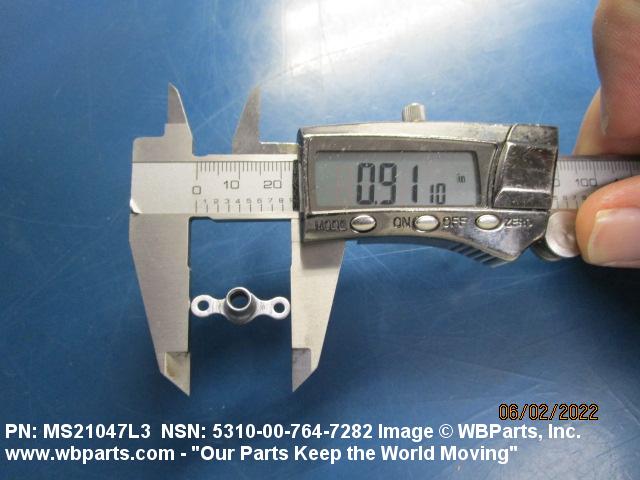

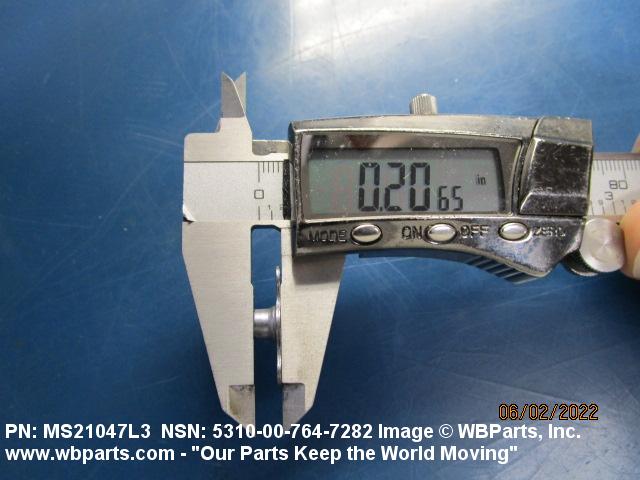

Drawings & Photos | NSN 5310-00-764-7282
Demand History | NSN 5310-00-764-7282
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21047L3 | 2024-11-311 | 1000 | United States |
| MS21047L3 | 2024-11-310 | 1000 | United States |
| MS21047L3 | 2024-05-150 | 600 | United States |
| MS21047L3 | 2024-01-25 | 500 | United States |
| MS21047L3 | 2023-09-249 | 1000 | United States |
| 5310-00-764-7282 | 2021-03-84 | 504 | DIBBS |
| 5310-00-764-7282 | 2019-11-325 | 308 | DIBBS |
| MS21047L3 | 2019-06-178 | 36 | US |
| MS21047L3 | 2019-03-63 | 30 | China |
| MS21047L3 | 2018-04-113 | 300 | Colombia |
| MS21047L3 | 2018-02-37 | 800 | China |
| MS21047L3 | 2017-10-290 | 240 | Colombia |
| MS21047L3 | 2017-09-244 | 1000 | United States |
| MS21047L3 | 2016-09-273 | 8 | United States |
| MS21047L3 | 2016-06-159 | 5000 | us |
| MS21047L3 | 2016-06-159 | 10000 | us |
| MS21047L3 | 2015-05-138 | 22 | United States |
| MS21047L3 | 2015-05-138 | 32 | United States |
| MS21047L3 | 2015-05-138 | 22 | United States |
| MS21047L3 | 2015-05-138 | 32 | United States |
| 5310-00-764-7282 | 2015-05-124 | 76 | Singapore |
| 5310-00-764-7282 | 2014-05-138 | 503 | DIBBS |
| MS21047L3 | 2014-02-56 | 27500 | US |
| MS21047L3 | 2013-10-282 | 4 | United States |
| MS21047L3 | 2013-08-239 | 100 | TR |
| MS21047L3 | 2012-11-310 | 160 | |
| 5310-00-764-7282 | 2012-10-283 | 2597 | DIBBS |
| 5310-00-764-7282 | 2012-08-216 | 2597 | DIBBS |
| 5310-00-764-7282 | 2012-07-206 | 2596 | DIBBS |
| 5310-00-764-7282 | 2012-06-171 | 2000 | US |
| K10001032 | 2012-01-12 | 10 | US |
| 5310-00-764-7282 | 2011-01-17 | 150 | US |
| 5310-00-764-7282 | 2010-11-313 | 15 | US |
| 5310-00-764-7282 | 2010-11-308 | 20 | US |
| MS21047L3 | 2010-11-305 | 25 | US |
| 5310-00-764-7282 | 2010-04-97 | 238 | DIBBS |
| MS21047L3 | 2010-02-39 | 300 | Italy |
| 5310-00-764-7282 | 2009-07-209 | 444 | DIBBS |
| MS21047L3 | 2009-06-176 | 31 | Canada |
| MS21047L3 | 2009-06-176 | 38 | Canada |
| MS21047L3 | 2009-06-169 | 200 | Canada |
| 5310-00-764-7282 | 2008-11-331 | 280 | United States |
| MS21047L3 | 2008-05-135 | 200 | United States |
| 5310-00-764-7282 | 2008-03-65 | 412 | China |
Cross Reference | NSN 5310-00-764-7282
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12600-02 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 12600-02 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| K1000-1032 | 75237 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21047-L3 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS21047L3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21047L3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NAS1023A3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| R2000A3 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| T2S1032 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| Z00.N5421375225 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-764-7282
Related Products | NSN 5310-00-764-7282
Technical Data | NSN 5310-00-764-7282
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.948 INCHES MAXIMUM |
| NUT HEIGHT | 0.250 INCHES MAXIMUM |
| PLATE THICKNESS | 0.047 INCHES MAXIMUM |
| PLATE WIDTH | 0.308 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.062 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.194 INCHES MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-00-764-7282
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-764-7282
