NSN 5310-00-728-7715 MS21069L08, M 12600-82, M1260082

Product Details | PLATE SELF-LOCKING NUT

5310-00-728-7715 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21069L08, M 12600-82, M1260082, MD31623410A3L, MD31623-410A3-L, MK100008BAC, MK1000-08BAC, NAS697A08, NS10319782, NS103197-82, BRM200A08, RM200A08, RMA9201M82, RMA9201M-82, T8076S832, VN202A182, VN202A1-82, Z00.N5452397175, Z00N5452397175, 131B5480G4 , 1375M022, 1375-M022 , 5310-00-728-7715, 00-728-7715, 5310007287715, 007287715

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-728-7715	05280 ( NUT, SELF-LOCKING, PLATE )

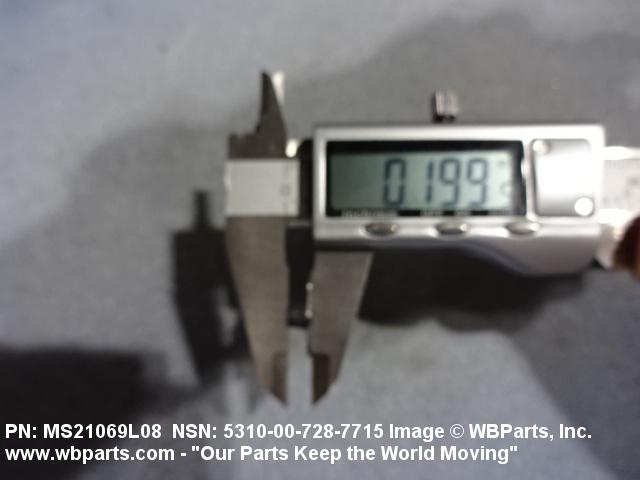

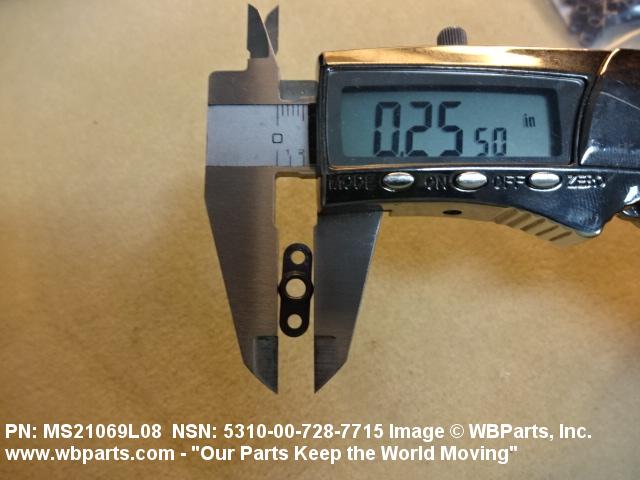

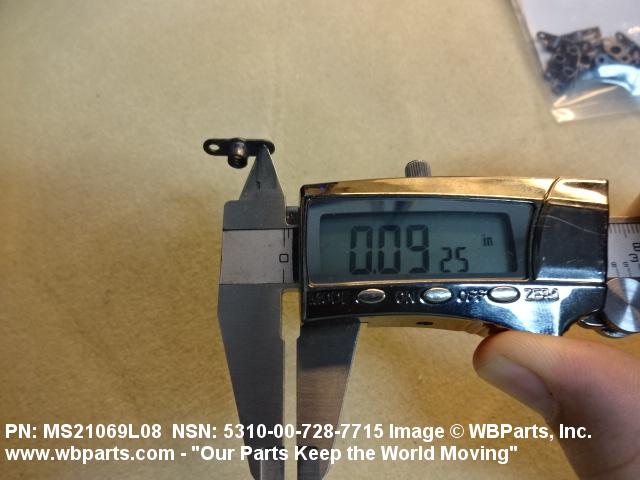

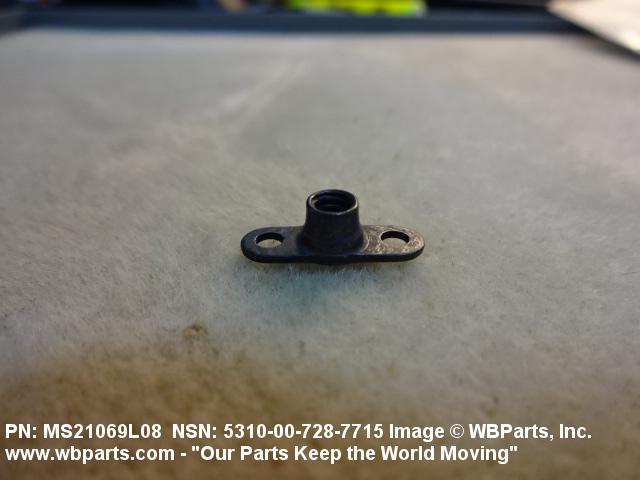

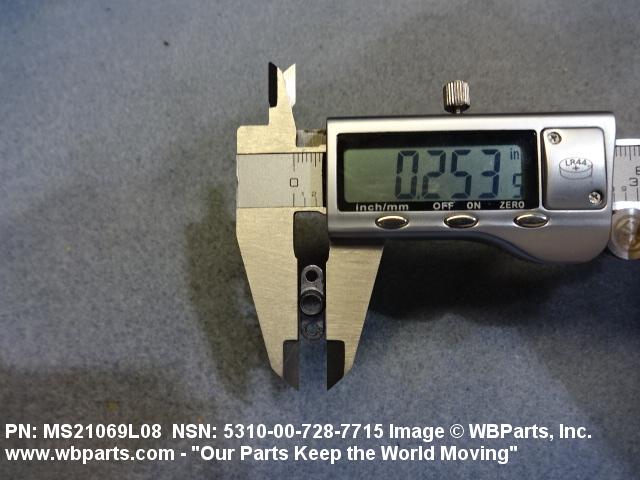

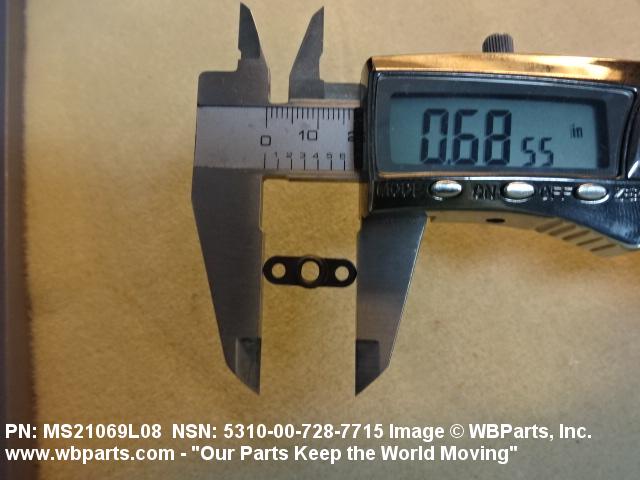

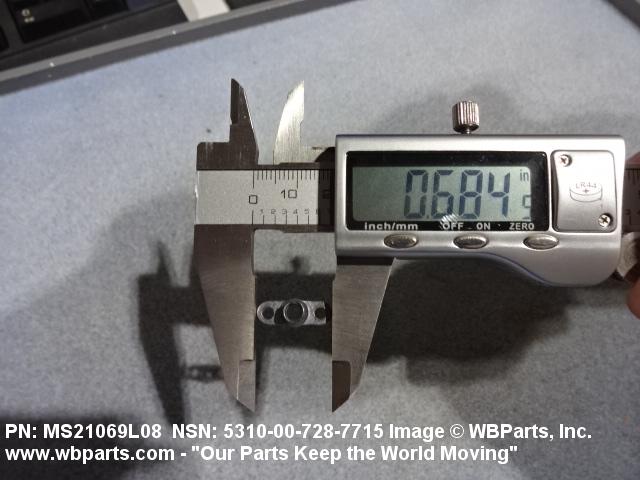

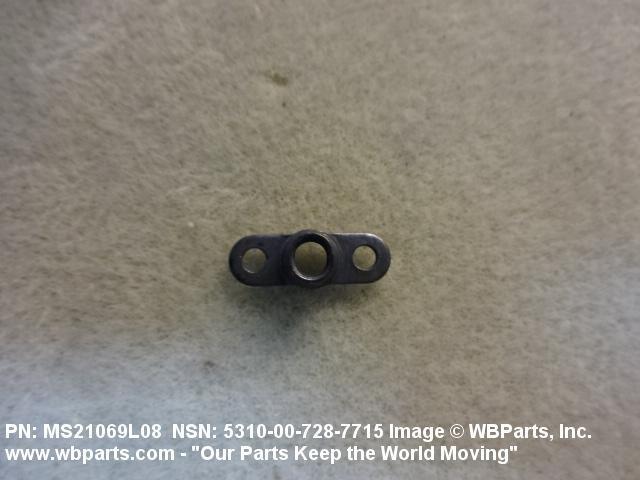

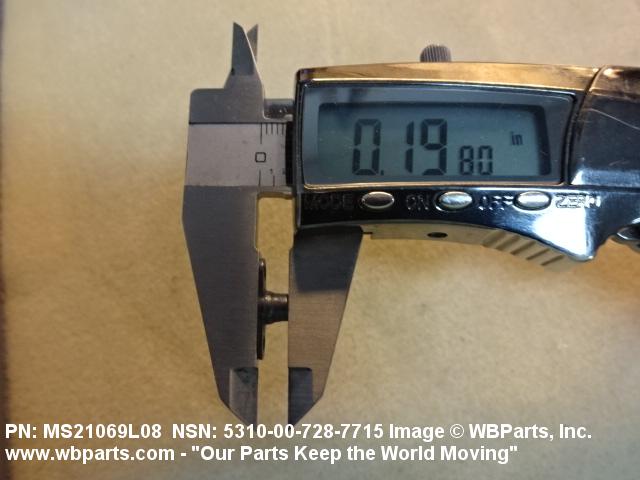

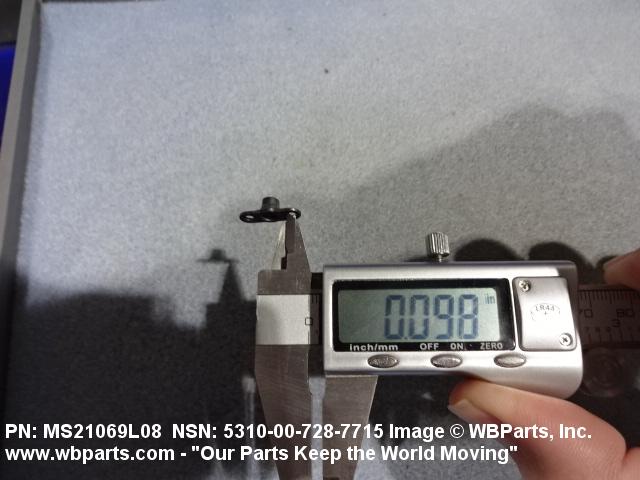

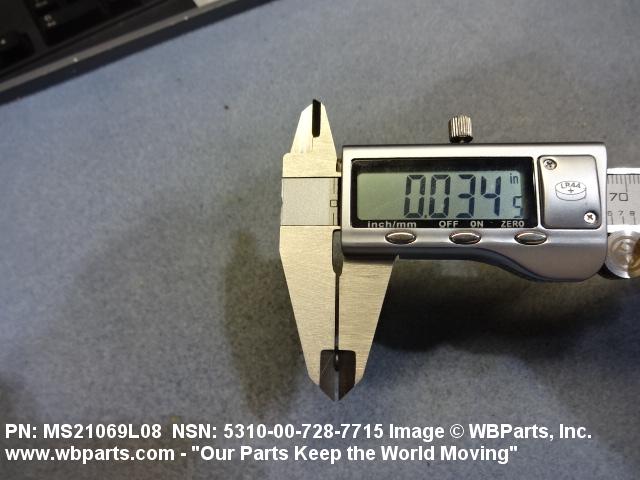

Drawings & Photos | NSN 5310-00-728-7715

Part Number	Request Date	QTY	Origin
NAS697A08	2024-07-183	1000	Germany
MS21069L08	2022-09-252	72	United States
MS21069L08	2020-06-163	100	US
MS21069L08	2019-03-63	75	China
MS21069L08	2017-06-167	120	United States
MS21069L08	2017-04-109	48	United States
MS21069L08	2016-10-287	400	South Africa
5310-00-728-7715	2014-12-341	9840	DIBBS
MS21069L08	2014-06-169	10	ZA
MS21069L08	2014-03-66	300	United Arab Emirates
MS21069L08	2013-02-43	1000	US
5310-00-728-7715	2010-03-77	30	MX
MS21069L08	2010-01-20	1	United Kingdom
5310-00-728-7715	2009-11-321	5	US
5310-00-728-7715	2009-07-211	26160	DIBBS
5310-00-728-7715	2008-07-192	144	United States

Cross Reference | NSN 5310-00-728-7715

Part Number	Cage Code	Manufacturer
BRM200A08	52828	REPUBLIC FASTENER MFG. CORP.
M 12600-82	80067	ARMED SERVICES ELECTRO STANDARDS AGENCY
MD31623-410A3-L	K0349	M L AVIATION LTD INCORPORATING M L WALLOP DEFENCE SYSTEMS LTD
MD31623-410A3-L	K4234	CURTISS-WRIGHT FLOW CONTROL (UK) LTD DBA DOUGLAS EQUIPMENT
MK1000-08BAC	15653	ALCOA GLOBAL FASTENERS, INC.
MK1000-08BAC	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
MK1000-08BAC	R1120	SATAIR A/S
MS21069L08	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21069L08	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NAS697A08	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
NS103197-82	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
RM200A08	52828	REPUBLIC FASTENER MFG. CORP.
RMA9201M-82	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
RMA9201M-82	72962	HARVARD INDUSTRIES INC
T8076S832	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
VN202A1-82	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
VN202A1-82	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
Z00.N5452397175	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-728-7715

Compare

Related Products | NSN 5310-00-728-7715

5310-00-728-7716, 5310-00-728-7717, 5310-00-728-7718, 5310-00-728-7719, 5310-00-728-7721

Technical Data | NSN 5310-00-728-7715

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE
NUT LENGTH	0.692 INCHES MAXIMUM
NUT HEIGHT	0.250 INCHES MAXIMUM
PLATE THICKNESS	0.047 INCHES MAXIMUM
PLATE WIDTH	0.230 INCHES MINIMUM AND 0.297 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.234 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.466 INCHES MINIMUM AND 0.470 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-728-7715

Restrictions
Freight

Category	Code	Description
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	064300	EXPLOSIVES:AMMO OR CARTRIDGES SUB1
Less than car load rating	F	150
Less than truck load rating	D	200.0
Water commodity Code	421	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	3	Ammunition (all types). including inert component parts. When a 3 is in the first position, then the special handling code must be determined from table 85 , part 1. If the primary hazard of the Ammunition item is Chemical (irritant, corrosive, oxidizer) in nature, as indicated by the DOT Proper Shipping Name, use first position Code ?C.
Air Special Handling
Special Handling Code	4	unknonwn
HAZMAT	BT
Type of Cargo	I	Explosives, class A, UN class 1

Management | NSN 5310-00-728-7715

Army

Category	Code	Description
Materiel Category and Inventory Manager	D	Single Manager Ammunition
Appropriation and Budget Activity	K	Ammunition
Management Inventory Segment	1	REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
Specific Group/Generic Code	X	Special Ammunition
Weapons Systems/End Item or Homogeneous Group	XG	Bulk Propellant, Explosives, (and Demolition Charges)
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	B14	US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000
Agency	DA	Department of the Army
Service Organization	L	Lead Service - 22 (Repairable)
Acquisition Advice Codes	C	SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item Code	2	HIGH SENSITIVITY (SRC II) - UNCLASSIFIED AA&E. (SEE NOTES (4), (5), AND (6) BELOW).
Purchasing	QTY UOM	8 EA : Each
