NSN 5310-00-728-7716 MS21069L3, RM200A3, Z00.N5452397225

Product Details | PLATE SELF-LOCKING NUT

5310-00-728-7716 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21069L3, RM200A3, Z00.N5452397225, Z00N5452397225, 10121623 , 5310-00-728-7716, 00-728-7716, 5310007287716, 007287716

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-728-7716	05280 ( NUT, SELF-LOCKING, PLATE )

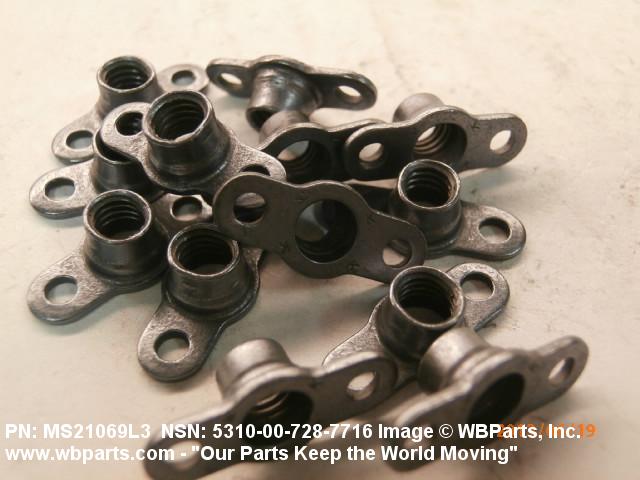

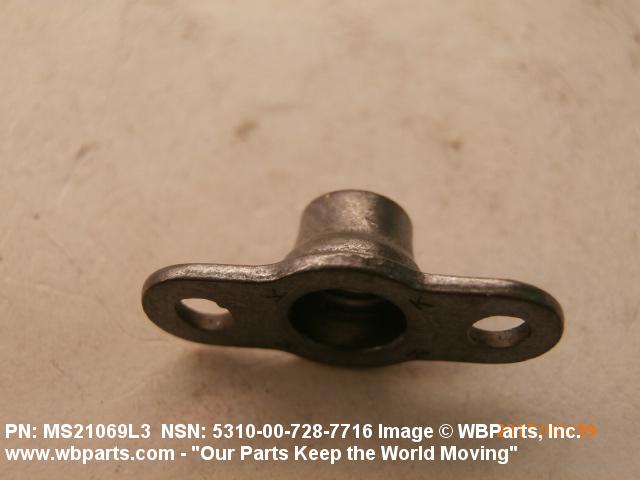

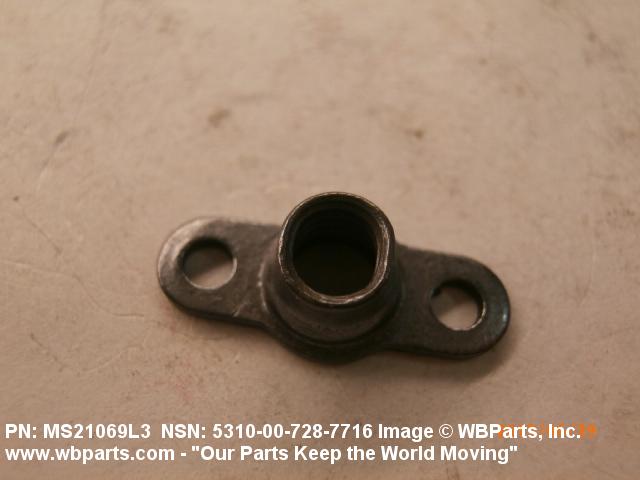

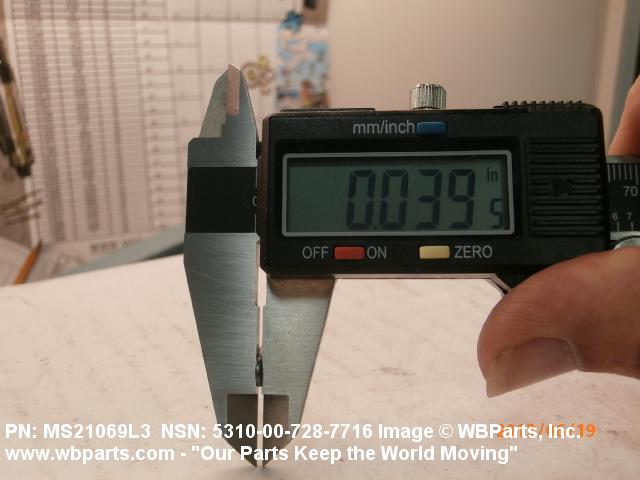

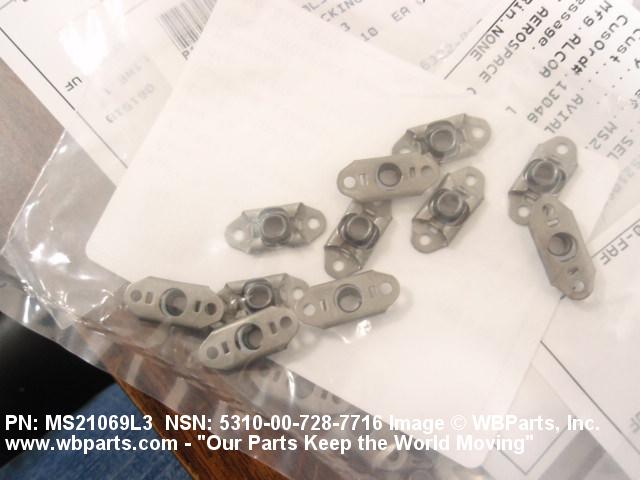

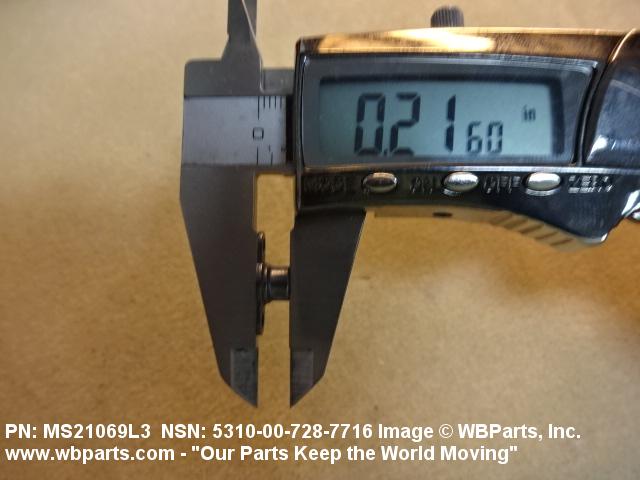

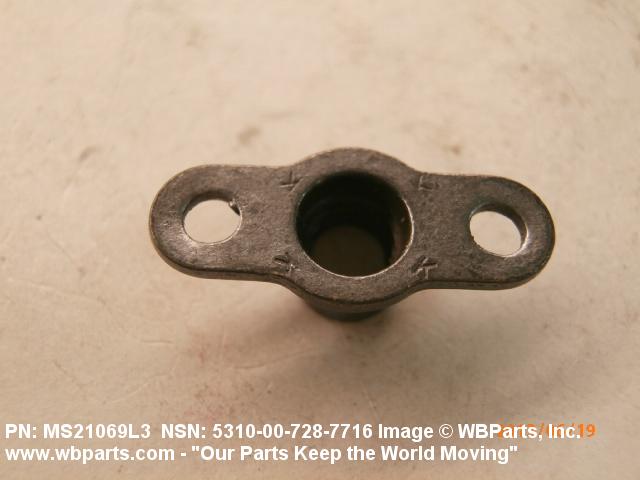

Drawings & Photos | NSN 5310-00-728-7716

Part Number	Request Date	QTY	Origin
MS21069L3	2024-06-179	150	US
MS21069L3	2023-08-228	10	US
MS21069L3	2022-09-252	6	United States
MS21069L3	2022-04-115	12000	US
5310-00-728-7716	2022-01-05	15	United States
5310-00-728-7716	2020-08-237	200	Taiwan
MS21069L3	2020-06-163	100	US
MS21069L3	2018-10-274	32	United States
MS21069L3	2018-02-57	130	United States
MS21069L3	2016-01-20	80	United States
MS21069L3	2016-01-20	1	United States
MS21069L3	2015-09-266	8	United Kingdom
MS21069L3	2015-05-138	88	United States
MS21069L3	2015-05-138	4	United States
MS21069L3	2015-05-138	88	United States
MS21069L3	2015-05-138	4	United States
5310-00-728-7716	2015-04-120	20	Singapore
MS21069L3	2014-10-290	12	US
MS21069L3	2014-02-56	4000	US
5310-00-728-7716	2013-11-325	1	DIBBS-RFPs
5310-00-728-7716	2013-10-291	1	DIBBS-RFPs
5310-00-728-7716	2013-09-246	1	DIBBS-RFPs
MS21069L3	2013-08-239	100	TR
MS21069L3	2013-05-150	100	Indonesia
MS21069L3	2013-05-134	50	CZ
MS21069L3	2013-01-04	20	Indonesia
MS21069L3	2012-12-341	100	US
MS21069L3	2012-11-332	100	China
MS21069L3	2012-11-310	6
MS21069L3	2012-10-277	200	us
MS21069L3	2012-10-277	550	us
MS21069L3	2012-04-94	100	United States
MS21069L3	2012-01-18	20000	Italy
5310-00-728-7716	2011-12-354	2	United States
MS21069L3	2011-08-220	16	US
5310-00-728-7716	2011-03-63	250	US
MS21069L3	2010-08-242	50	United States
5310-00-728-7716	2010-01-18	264	us
5310-00-728-7716	2009-06-160	2455	DIBBS
5310-00-728-7716	2009-05-125	200	US
MS21069L3	2009-03-86	125	US
5310-00-728-7716	2009-03-86	1280	DIBBS
MS21069L3	2008-08-232	10000	us
MS21069L3	2008-08-231	10000	us
5310-00-728-7716	2008-05-128	40000	us
5310-00-728-7716	2007-11-324	50	US
5310-00-728-7716	2006-10-303	80	US

Cross Reference | NSN 5310-00-728-7716

Part Number	Cage Code	Manufacturer
MS21069L3	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21069L3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
RM200A3	52828	REPUBLIC FASTENER MFG. CORP.
Z00.N5452397225	F0086	SOCATA

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-728-7716

Compare

Related Products | NSN 5310-00-728-7716

5310-00-728-7717, 5310-00-728-7718, 5310-00-728-7719, 5310-00-728-7721, 5310-00-728-7722

Technical Data | NSN 5310-00-728-7716

Characteristic	Specifications
THREAD SERIES	UNJF

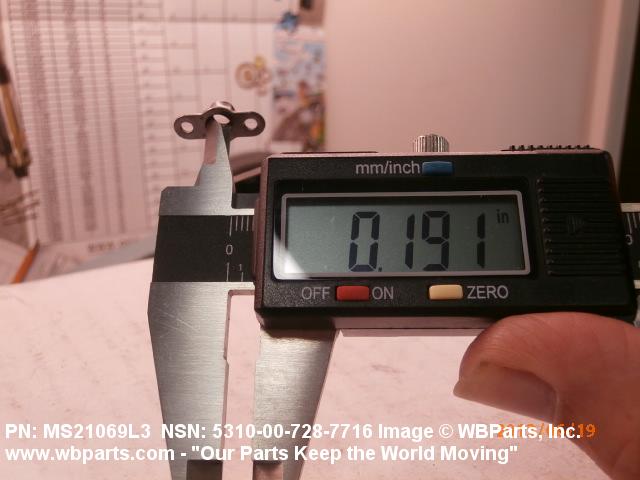

NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	STEEL OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A116 PLATE

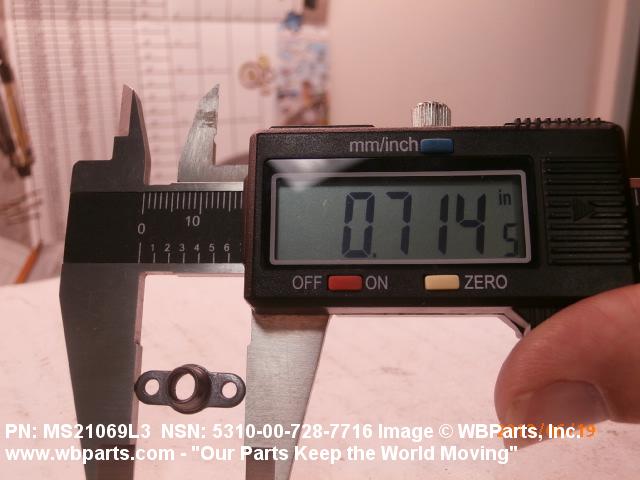

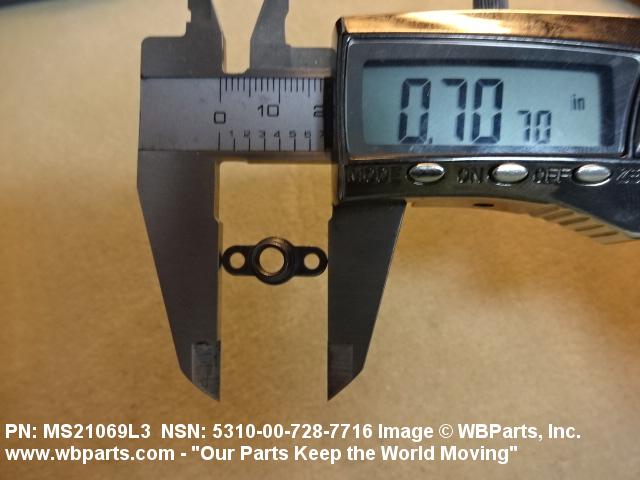

NUT LENGTH	0.724 INCHES MAXIMUM

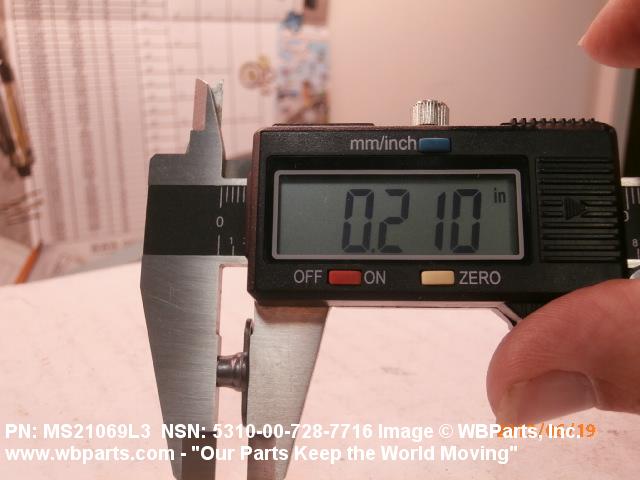

NUT HEIGHT	0.250 INCHES MAXIMUM

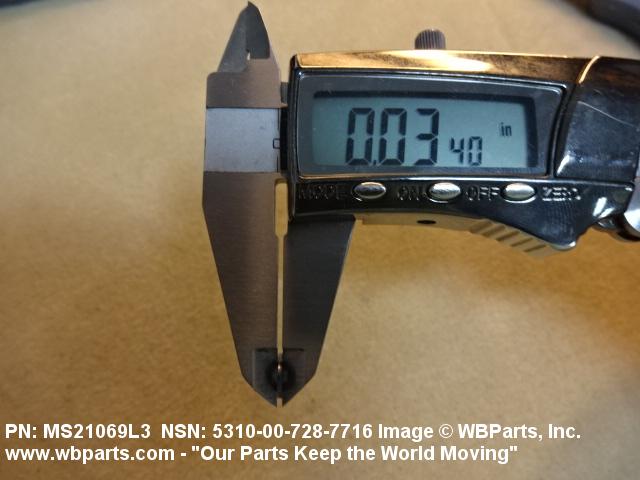

PLATE THICKNESS	0.047 INCHES MAXIMUM

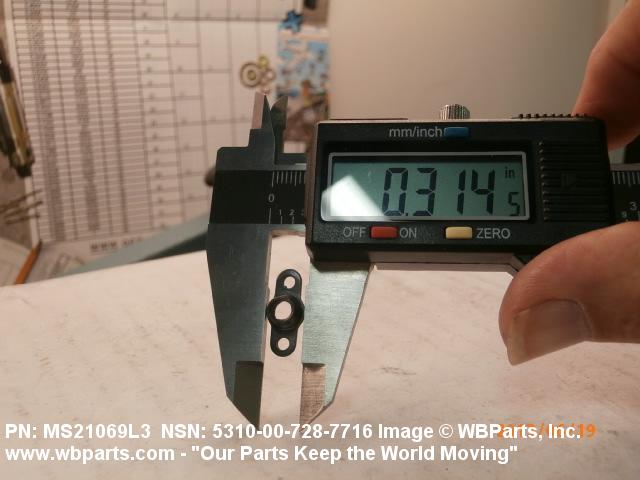

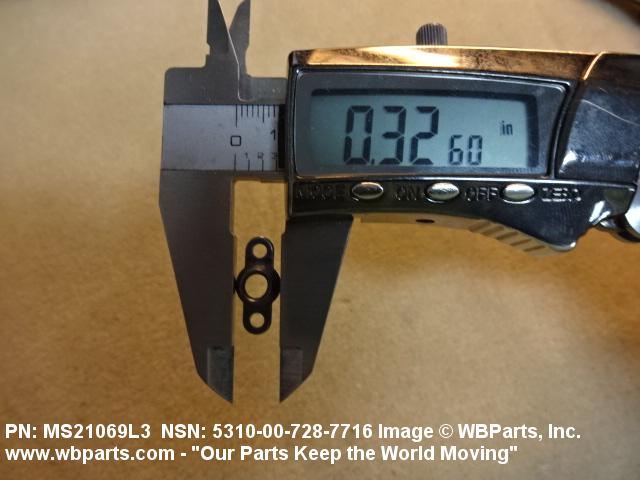

PLATE WIDTH	0.298 INCHES MINIMUM AND 0.328 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES

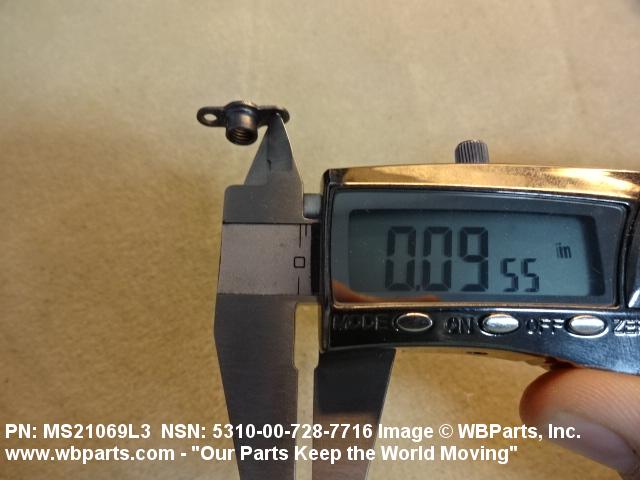

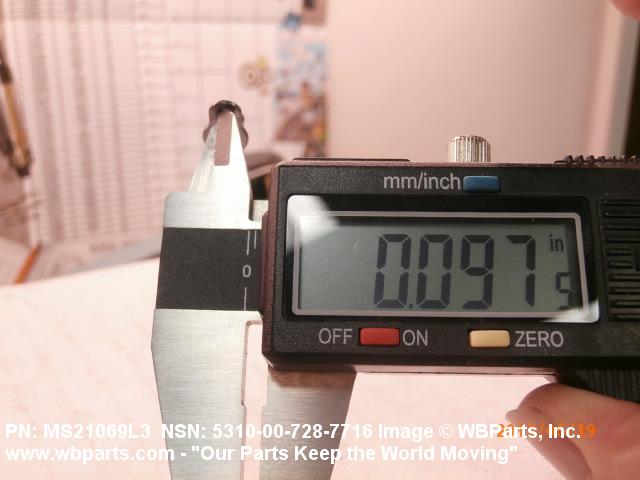

MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM

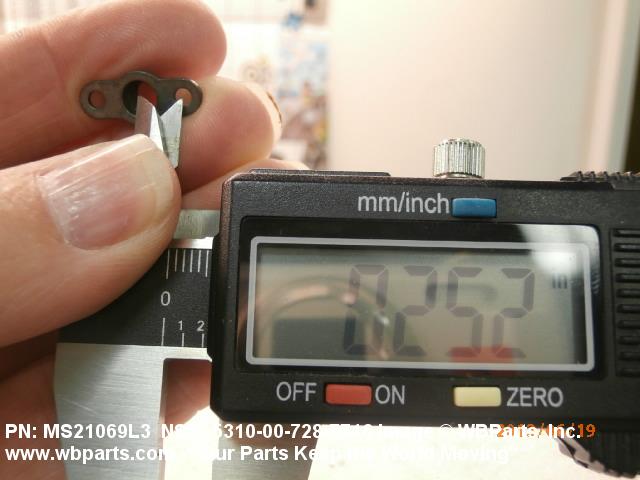

DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.250 INCHES NOMINAL

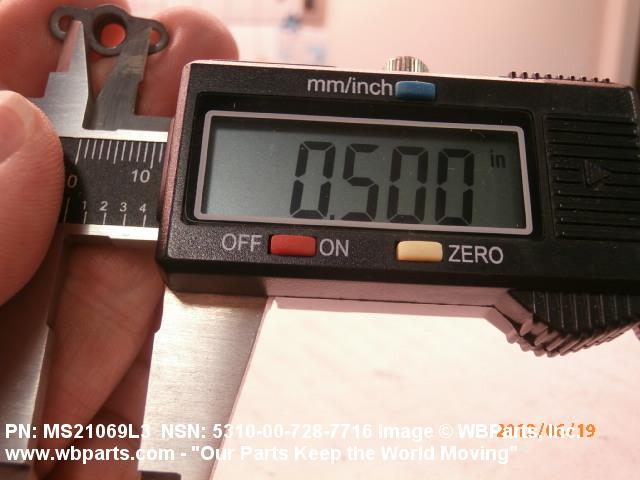

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.498 INCHES MINIMUM AND 0.502 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-728-7716

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-728-7716

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BJ	AH-64 Airframe
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
