NSN 5310-00-728-7717 MS21069L4, MK10004, MK1000-4
Product Details | PLATE SELF-LOCKING NUT
5310-00-728-7717 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS21069L4, MK10004, MK1000-4, MK10004BAC, MK1000-4BAC, NS103197048, NS103197-048, BACN10JP4A, BRM200A4, RM200A4, RMA9201M4, RMA9201M-4, T8076S428, VN202A1048, VN202A1-048, 5310-00-728-7717, 00-728-7717, 5310007287717, 007287717
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-728-7717 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

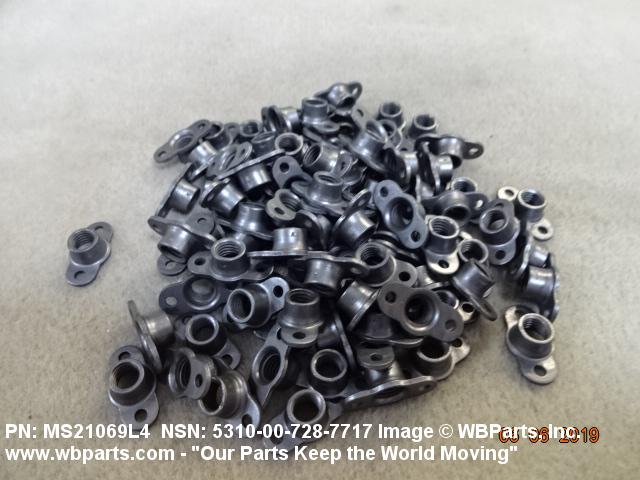

Drawings & Photos | NSN 5310-00-728-7717
Demand History | NSN 5310-00-728-7717
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10JP4A | 2024-10-299 | 10 | US |
| BACN10JP4A | 2024-10-299 | 25 | US |
| BACN10JP4A | 2024-10-299 | 50 | US |
| BACN10JP4A | 2024-10-299 | 75 | US |
| BACN10JP4A | 2024-10-299 | 100 | US |
| 5310-00-728-7717 | 2023-03-68 | 2918 | DIBBS |
| MS21069L4 | 2022-09-269 | 2 | ES |
| MS21069L4 | 2020-06-163 | 100 | US |
| MS21069L4 | 2020-02-57 | 10 | US |
| 5310-00-728-7717 | 2015-09-250 | 4566 | DIBBS |
| MS21069L4 | 2013-11-316 | 50 | China |
| MS21069L4 | 2013-01-18 | 6 | Philippines |
| 5310-00-728-7717 | 2009-10-285 | 1150 | Australia |
| 5310-00-728-7717 | 2009-03-70 | 1100 | China |
| 5310-00-728-7717 | 2009-03-70 | 1100 | China |
| MS21069L4 | 2006-02-58 | 250 | US |
Cross Reference | NSN 5310-00-728-7717
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACN10JP4A | 81205 | THE BOEING COMPANY DBA BOEING |
| BRM200A4 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| MK1000-4 | K1678 | FAIRCHILD FASTENERS UK LTD |
| MK1000-4BAC | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| MK1000-4BAC | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| MK1000-4BAC | R1120 | SATAIR A/S |
| MS21069L4 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21069L4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NS103197-048 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| RM200A4 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| RMA9201M-4 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| RMA9201M-4 | 72962 | HARVARD INDUSTRIES INC |
| T8076S428 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| VN202A1-048 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| VN202A1-048 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-728-7717
Related Products | NSN 5310-00-728-7717
Technical Data | NSN 5310-00-728-7717
| Characteristic | Specifications |
|---|---|

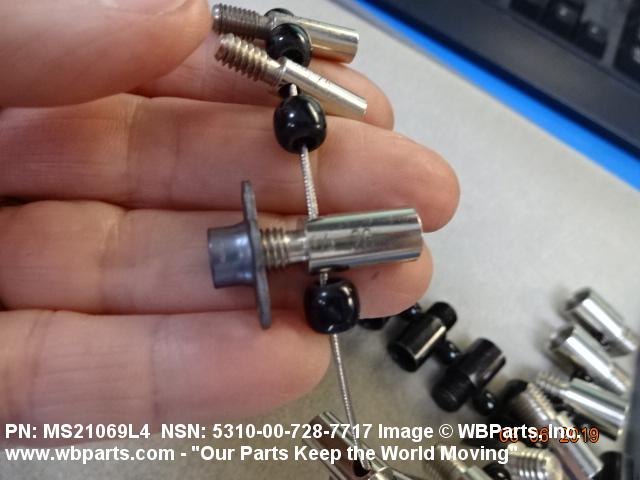

| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 49.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A116 PLATE |

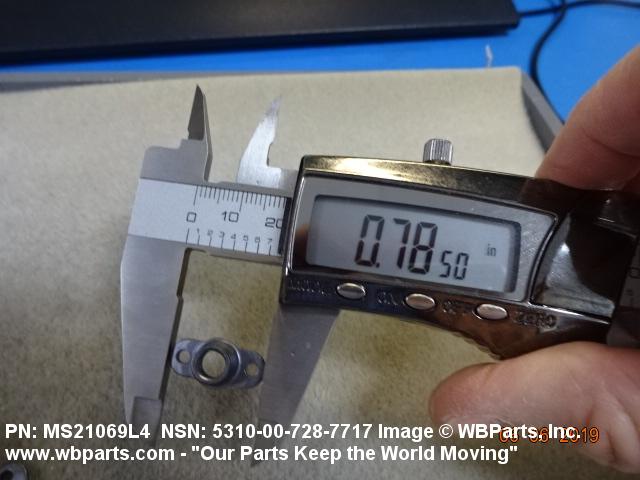

| NUT LENGTH | 0.786 INCHES MAXIMUM |

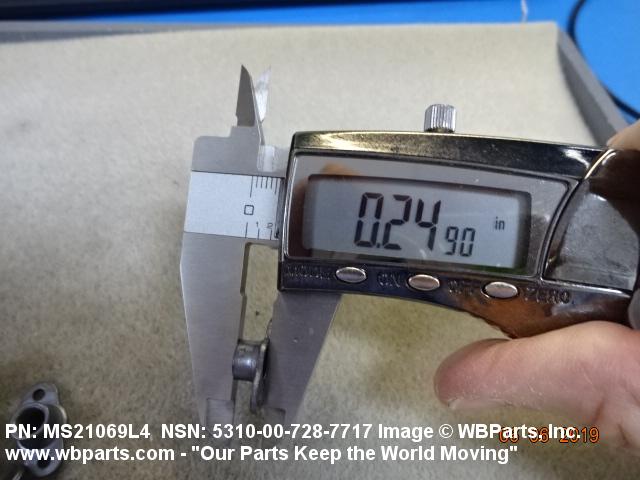

| NUT HEIGHT | 0.281 INCHES MAXIMUM |

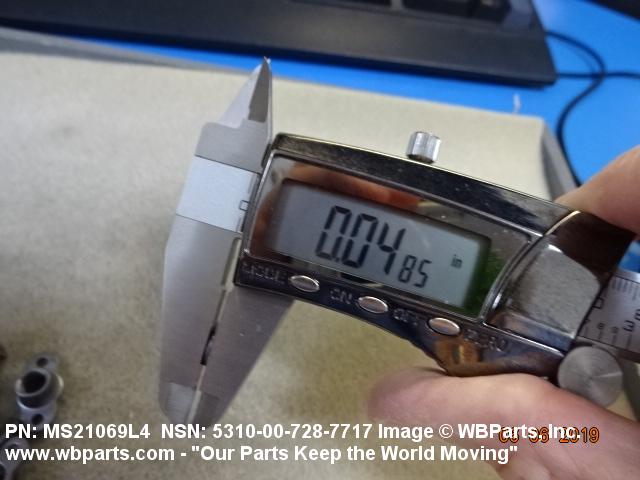

| PLATE THICKNESS | 0.055 INCHES MAXIMUM |

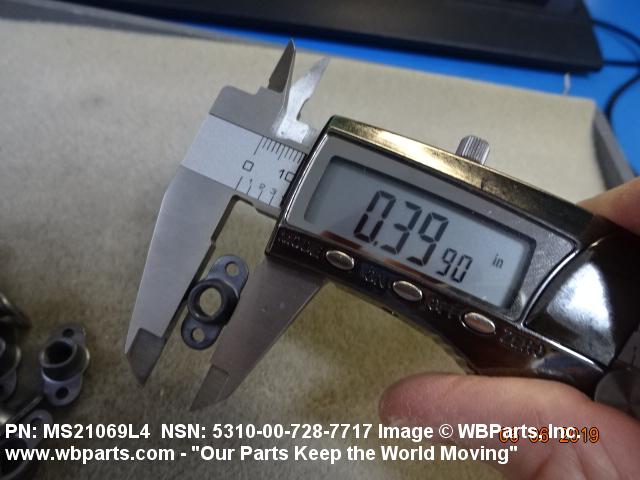

| PLATE WIDTH | 0.380 INCHES MINIMUM AND 0.414 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.281 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.560 INCHES MINIMUM AND 0.564 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-00-728-7717
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
