NSN 5310-00-574-5569 NAS1330H3K166L, CH10K116L, CH10K166L

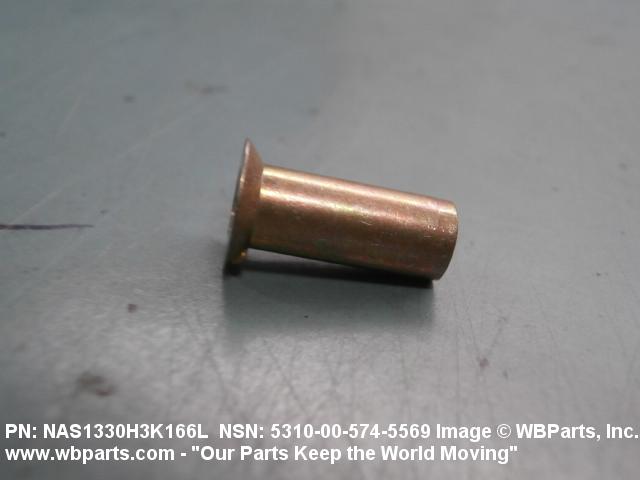

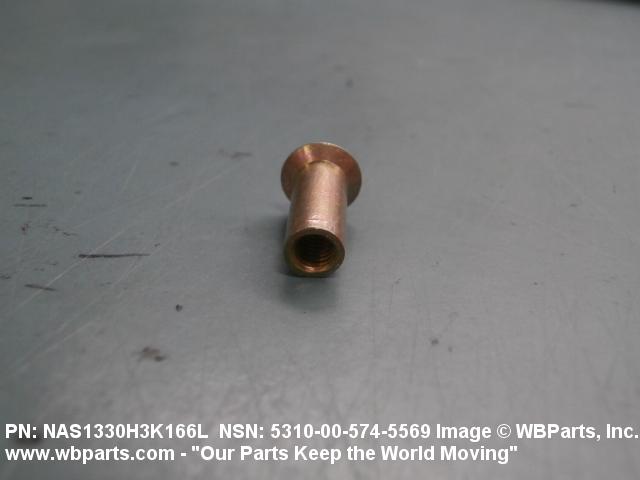

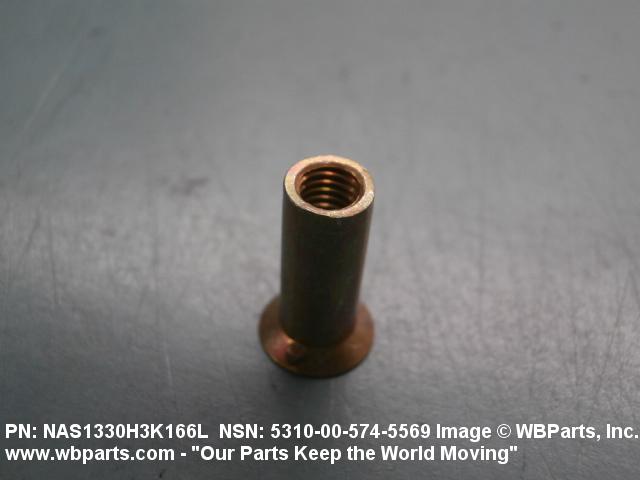

Product Details | BLIND RIVET SELF-LOCKING NUT
5310-00-574-5569 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. It is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1330H3K166L, CH10K116L, CH10K166L, 5310-00-574-5569, 00-574-5569, 5310005745569, 005745569
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 DEC 1974 | 00-574-5569 | 29724 ( NUT, SELF-LOCKING, BLIND RIVET ) |

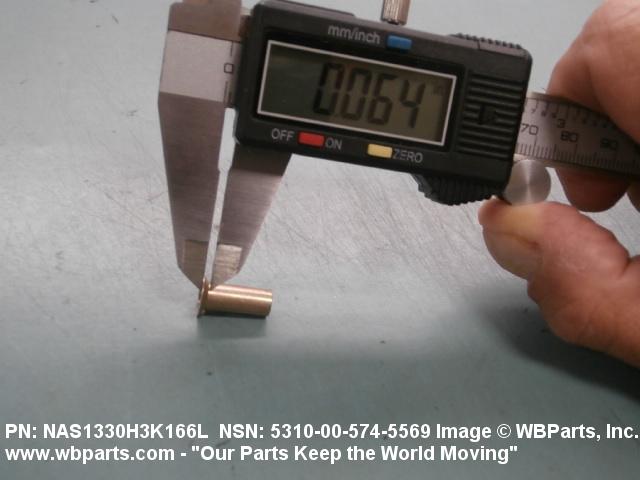

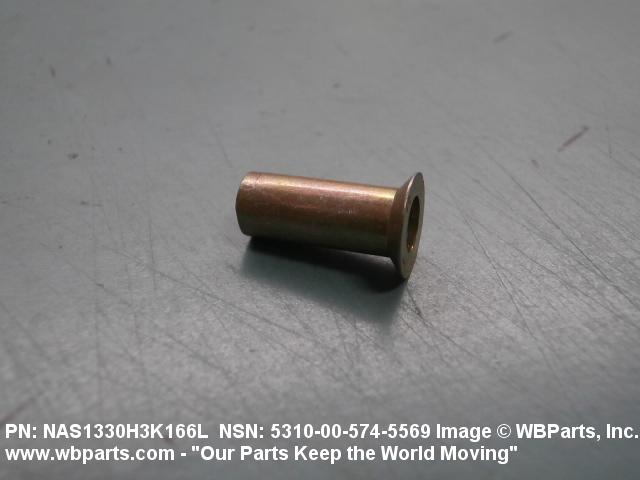

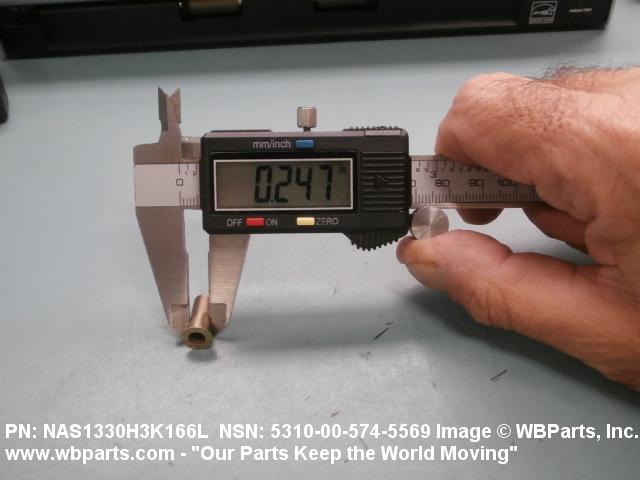

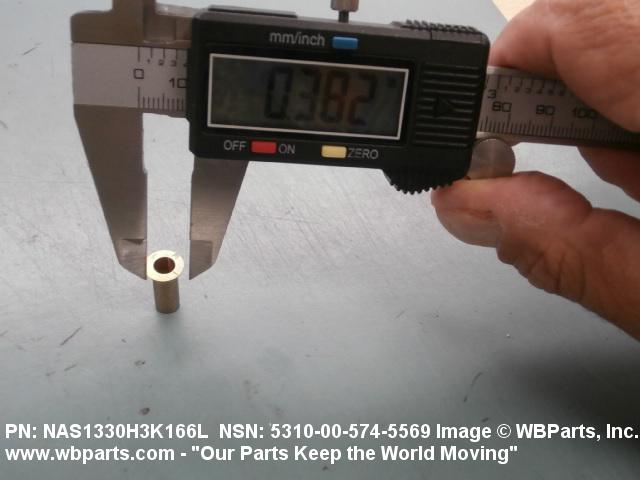

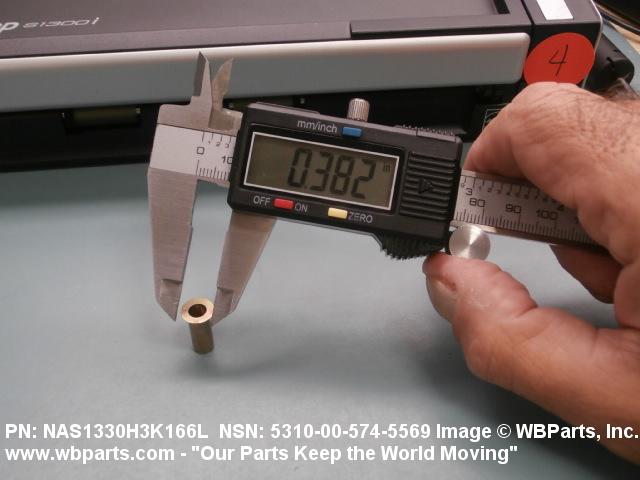

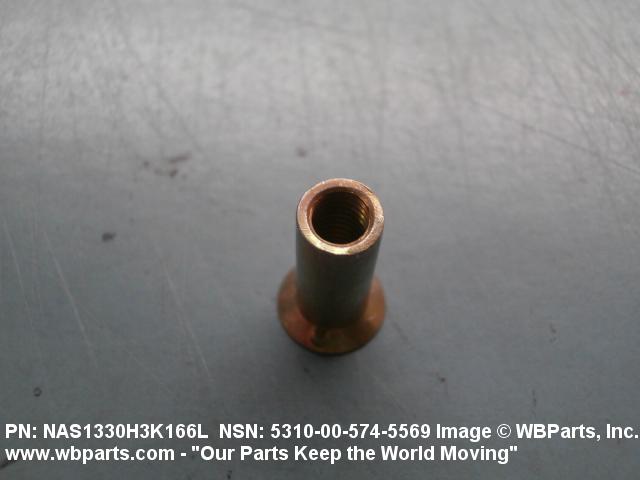

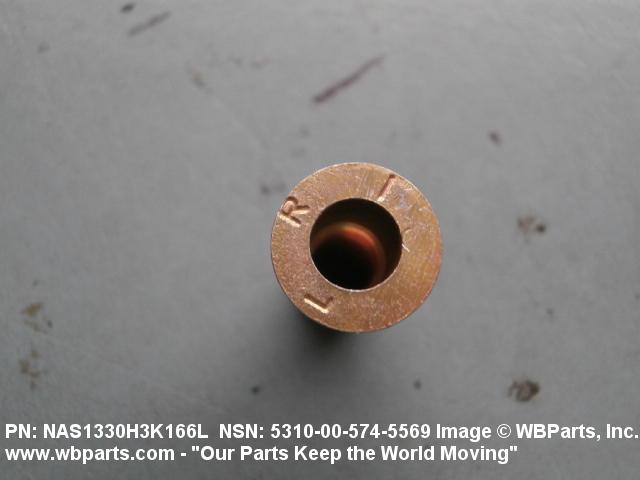

Drawings & Photos | NSN 5310-00-574-5569
Demand History | NSN 5310-00-574-5569
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-574-5569 | 2016-05-138 | 1975 | DIBBS |
| NAS1330H3K166L | 2015-10-295 | 25 | United States |
| 5310-00-574-5569 | 2015-07-186 | 896 | DIBBS |
| NAS1330H3K166L | 2013-10-289 | 11 | United States |
| NAS1330H3K166L | 2013-10-289 | 25 | United States |
| NAS1330H3K166L | 2013-10-289 | 50 | United States |
| NAS1330H3K166L | 2013-10-289 | 100 | United States |
| NAS1330H3K166L | 2012-10-293 | 22 | US |
| NAS1330H3K166L | 2012-10-293 | 22 | US |
| 5310-00-574-5569 | 2011-11-315 | 50 | United States |
| NAS1330H3K166L | 2011-09-258 | 2444 | US |
| CH10K116L | 2011-06-174 | 1000 | US |
| NAS1330H3K166L | 2011-06-174 | 1000 | US |
| NAS1330H3K166L | 2010-12-356 | 1 | Italy |
| NAS1330H3K166L | 2010-11-314 | 100 | US |
| NAS1330H3K166L | 2009-11-328 | 270 | Italy |
| 5310-00-574-5569 | 2008-09-259 | 20 | US |
| 5310-00-574-5569 | 2008-09-255 | 130 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-574-5569
Related Products | NSN 5310-00-574-5569
Technical Data | NSN 5310-00-574-5569
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 4037 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A547 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |
| NUT DIAMETER | 0.246 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| NUT LENGTH | 0.610 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| NUT GRIP RANGE | 0.116 TO 0.166 INCHES |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| HEAD STYLE | D16 FLAT COUNTERSUNK REVERSE KEYED |
| HEAD DIAMETER | 0.391 INCHES NOMINAL |
| KEY LENGTH | 0.061 INCHES NOMINAL |
| HEAD HEIGHT | 0.065 INCHES MAXIMUM |
| HEAD COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK END TYPE | OPEN |
| TEMP RATING | NOT RATED |
| SPECIFICATION/STANDARD DATA | 80205-NAS1330 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
