NSN 5310-00-557-4722 NAS57710, NAS577-10, 00-557-4722
Product Details | BARREL SELF-LOCKING NUT
5310-00-557-4722 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, ROUND.
Part Alternates: NAS57710, NAS577-10, 5310-00-557-4722, 00-557-4722, 5310005574722, 005574722
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 NOV 1974 | 00-557-4722 | 15891 ( NUT, SELF-LOCKING, BARREL ) |

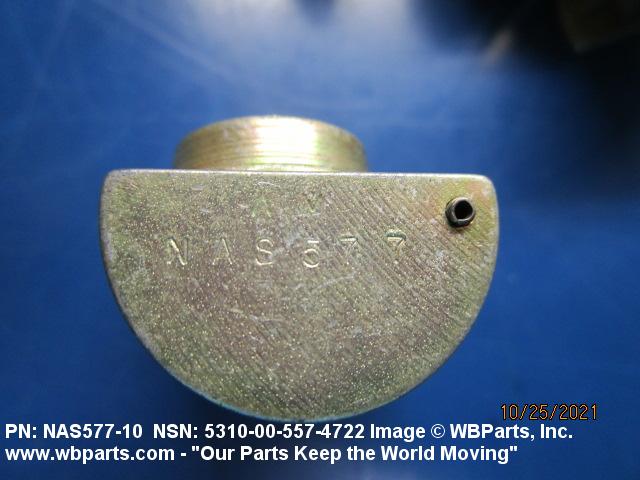

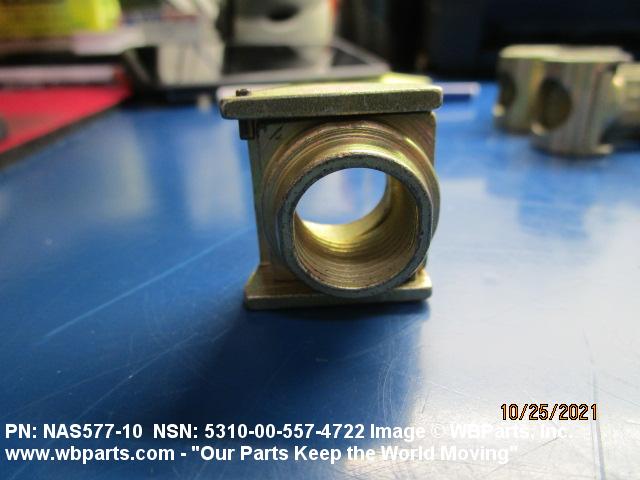

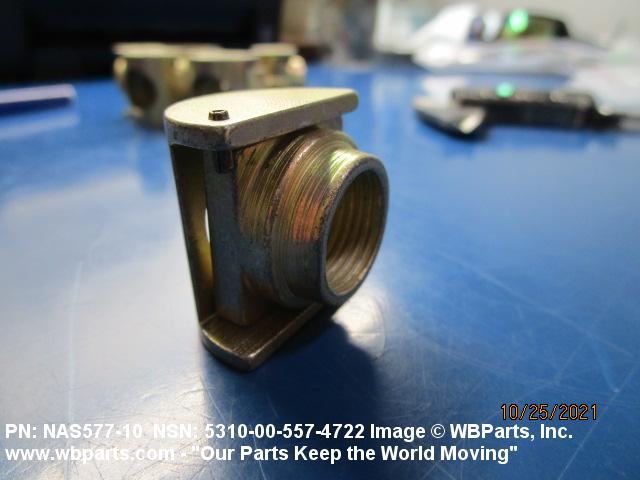

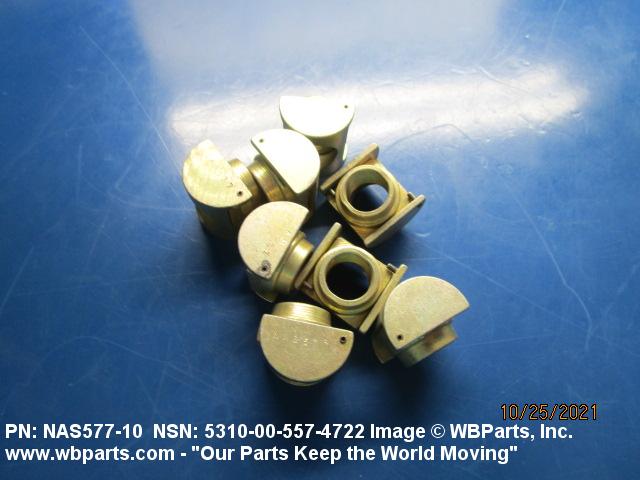

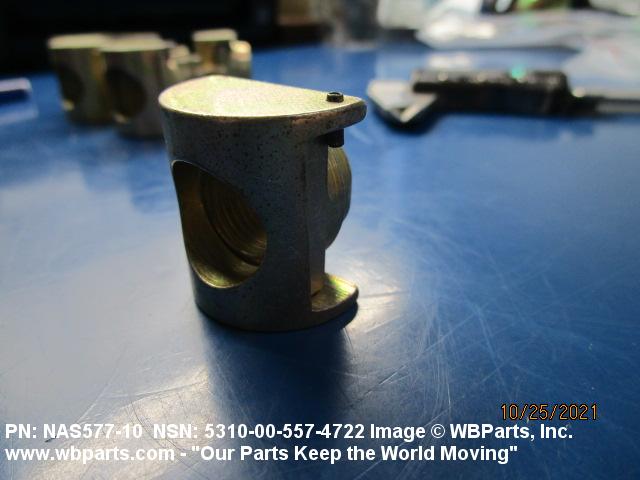

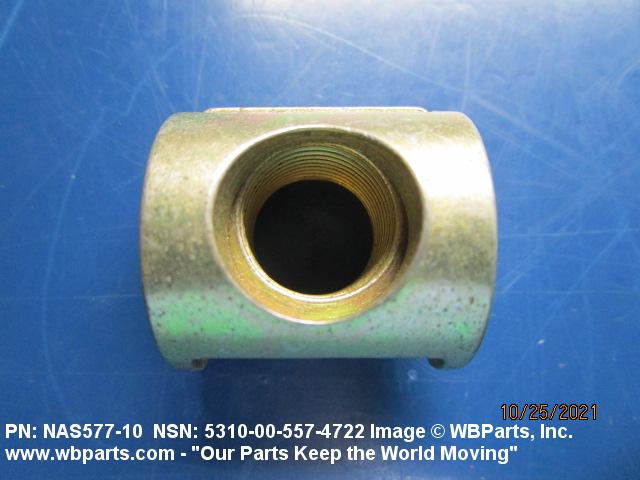

Drawings & Photos | NSN 5310-00-557-4722
Demand History | NSN 5310-00-557-4722
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS57710 | 2021-09-270 | 8 | United States |
| 5310-00-557-4722 | 2021-09-266 | 8 | US |
| 5310-00-557-4722 | 2017-11-319 | 6 | Malaysia |
| 5310-00-557-4722 | 2017-11-319 | 6 | Malaysia |
| NAS57710 | 2014-04-119 | 4 | US |
| NAS57710 | 2011-03-80 | 10 | CN |
| 5310-00-557-4722 | 2008-08-218 | 25 | United States |
| 5310-00-557-4722 | 2007-12-340 | 20 | us |
Cross Reference | NSN 5310-00-557-4722
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS577-10 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-557-4722
Related Products | NSN 5310-00-557-4722
Technical Data | NSN 5310-00-557-4722
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM |
| NUT STYLE | A40 FLOATING SELF-LOCKING BARREL |

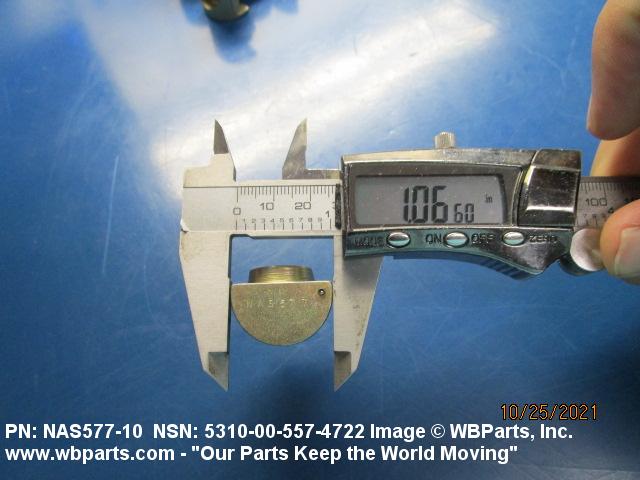

| NUT DIAMETER | 1.057 INCHES MINIMUM AND 1.060 INCHES MAXIMUM |

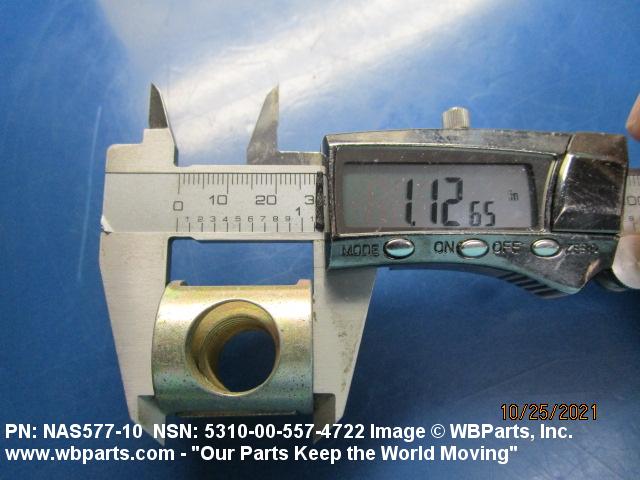

| NUT LENGTH | 1.115 INCHES MINIMUM AND 1.135 INCHES MAXIMUM |

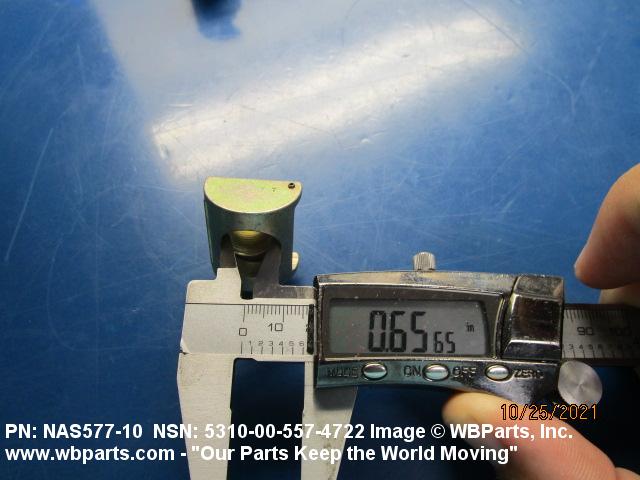

| BARREL HEIGHT | 0.640 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |

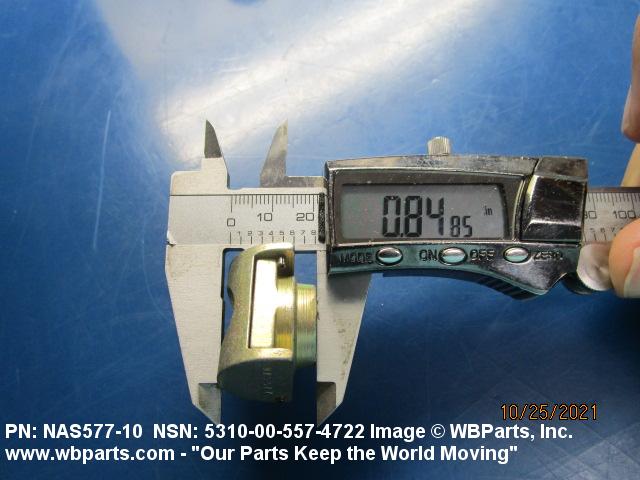

| NUT HEIGHT | 0.844 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.276 INCHES MINIMUM AND 0.286 INCHES MAXIMUM NUT |
| COUNTERBORE DIAMETER | 0.656 INCHES MINIMUM AND 0.666 INCHES MAXIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | NOT RATED |
| FEATURES PROVIDED | FLOATING NUT |
Restrictions/Controls & Freight Information | NSN 5310-00-557-4722
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-557-4722
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
