NSN 5310-00-402-5711 MS212243, MS21224-3, NE82353
Product Details | ASSEMBLED WASHER SELF-LOCKING NUT
5310-00-402-5711 A nut on which has been assembled a nonremovable washer. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MS212243, MS21224-3, NE82353, NE8235-3, CR5937, CR-5937, F12N76991032, F12N7699-1032, GN512AW3D, 5310-00-402-5711, 00-402-5711, 5310004025711, 004025711
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 APR 1970 | 00-402-5711 | 29736 ( NUT, SELF-LOCKING, ASSEMBLED WASHER ) |

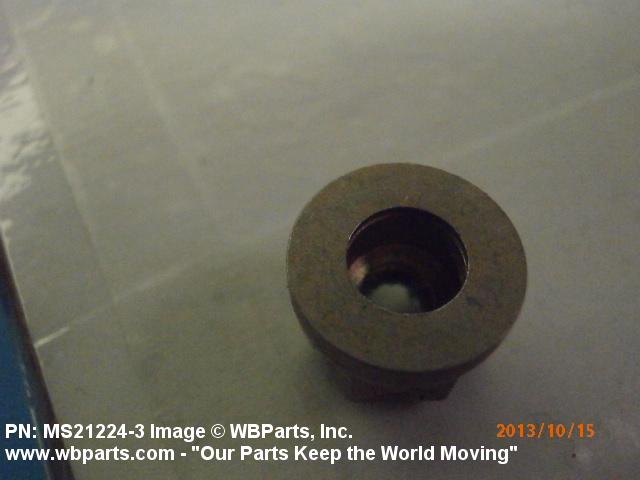

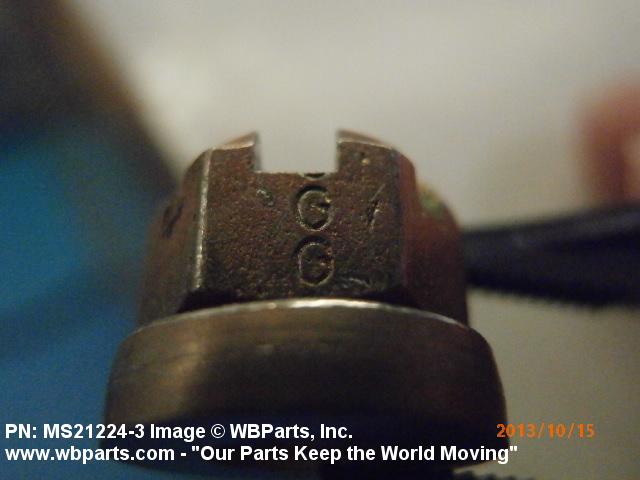

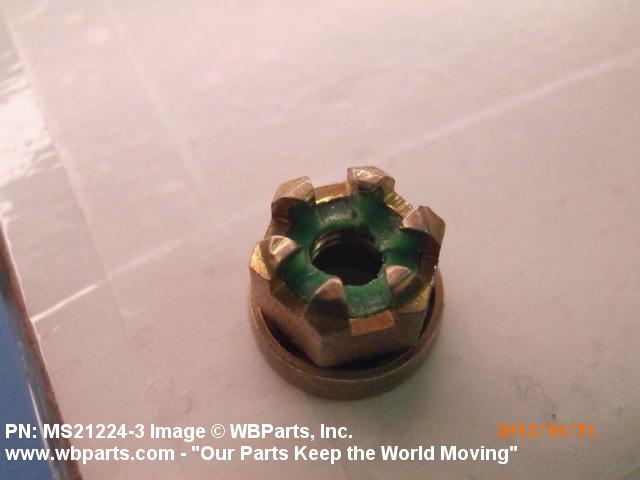

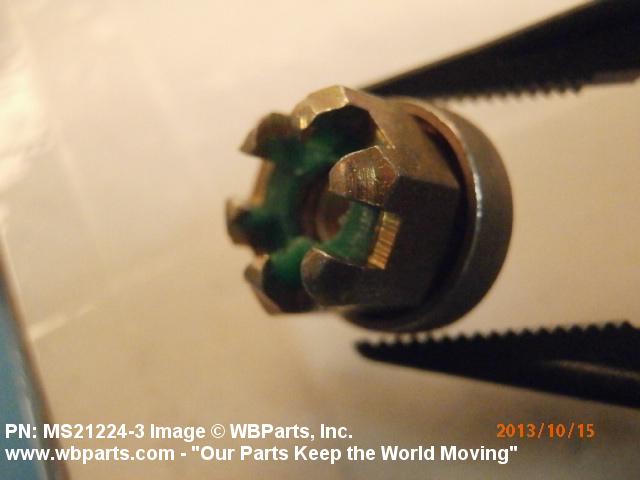

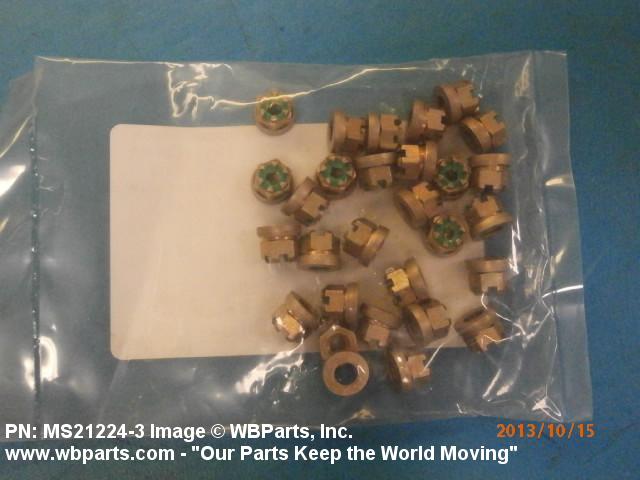

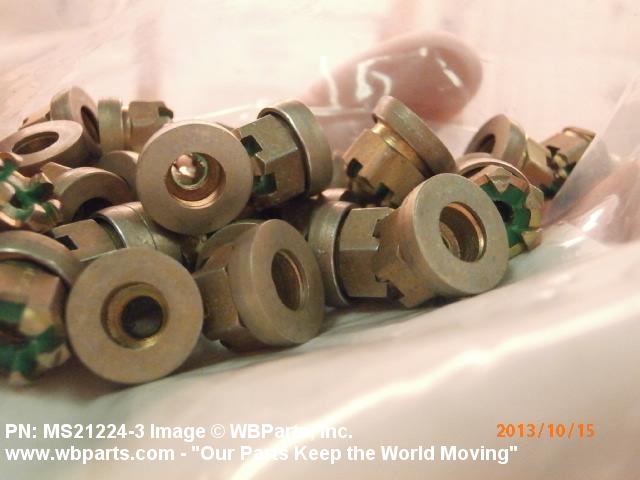

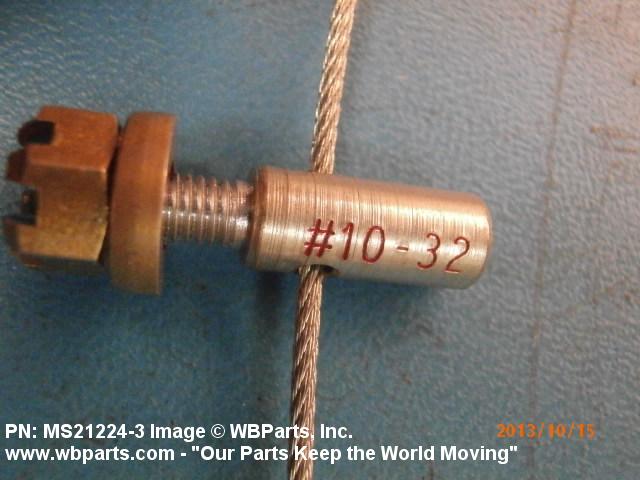

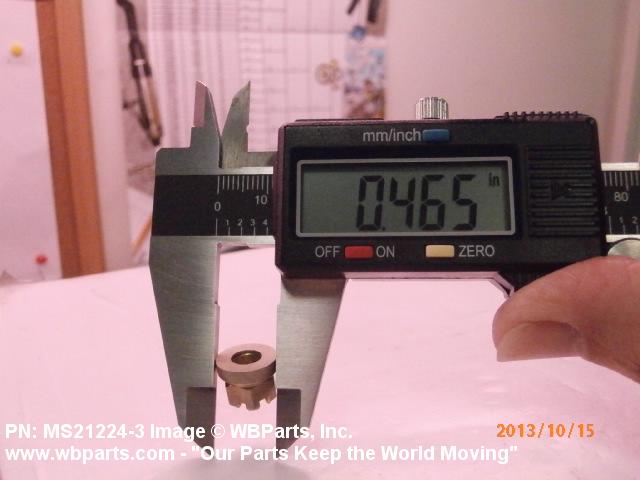

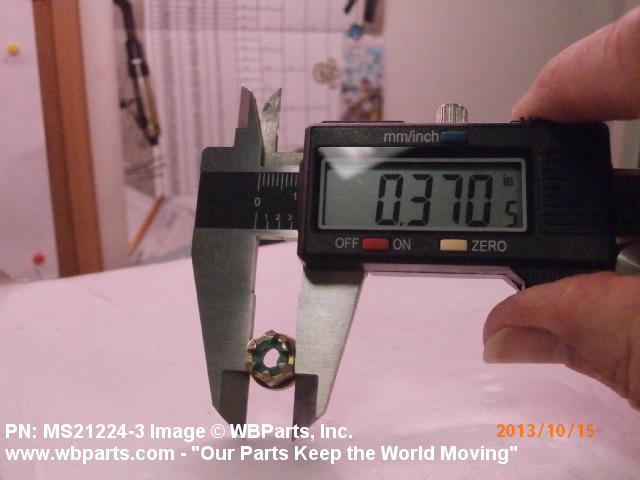

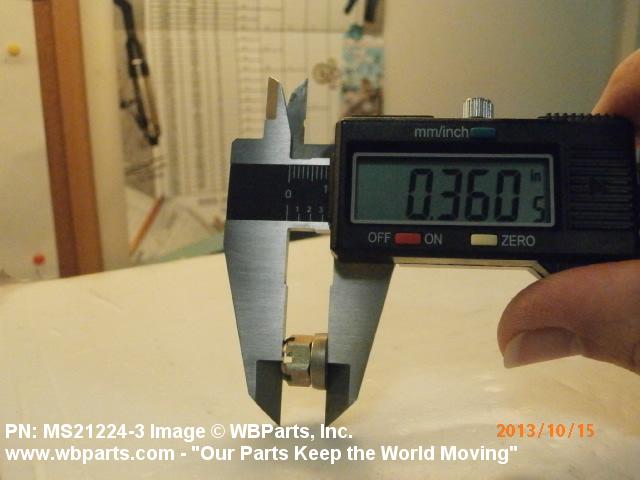

Drawings & Photos | NSN 5310-00-402-5711
Demand History | NSN 5310-00-402-5711
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS212243 | 2025-04-106 | 10 | United States |
| 5310-00-402-5711 | 2023-10-275 | 8 | Taiwan |
| 5310-00-402-5711 | 2023-08-215 | 54 | Taiwan |
| 5310-00-402-5711 | 2023-04-107 | 3000 | DIBBS |
| MS212243 | 2019-07-210 | 1 | US |
| 5310-00-402-5711 | 2017-03-89 | 20 | Taiwan |
| 5310-00-402-5711 | 2016-07-195 | 5908 | DIBBS |
| 5310-00-402-5711 | 2016-05-137 | 5908 | DIBBS |
| 5310-00-402-5711 | 2014-09-271 | 4892 | DIBBS |
| MS212243 | 2013-09-261 | 28 | United States |
| 5310-00-402-5711 | 2013-06-168 | 0 | DIBBS |
| MS21224-3 | 2012-02-33 | 50 | US |
| 5310-00-402-5711 | 2012-02-32 | 200 | TR |
Cross Reference | NSN 5310-00-402-5711
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CR-5937 | 62554 | ALCOA GLOBAL FASTENERS INC. DBA SIMMONDS MECAERO FAS PDTS DIV |
| F12N7699-1032 | 27687 | GREER STOP NUT INC. |
| GN512AW3D | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| MS21224-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS21224-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NE8235-3 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| NE8235-3 | 72962 | HARVARD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-402-5711
Related Products | NSN 5310-00-402-5711
Technical Data | NSN 5310-00-402-5711
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | PLASTIC NYLON LOCKING INSERT STEEL COMP 1137 OR STEEL COMP 11L37 OR STEEL COMP 8740 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5024 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5020 ASSN STD 2ND MATERIAL RESPONSE OR AMS 6322 ASSN STD 3RD MATERIAL RESPONSE OR AMS 6323 ASSN STD 3RD MATERIAL RESPONSE OR AMS 6325 ASSN STD 3RD MATERIAL RESPONSE OR AMS 6327 ASSN STD 3RD MATERIAL RESPONSE OR AMS 6358 ASSN STD 3RD MATERIAL RESPONSE NUT QQ-A-225/6,T4 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-250/13,T6 FED SPEC 2ND MATERIAL RESPONSE WASHER |
| SURFACE TREATMENT | CADMIUM AND CHROMATE NUT CHROMATE WASHER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE 2 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE NUT MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE WASHER |
| HARDNESS RATING | NOT RATED |

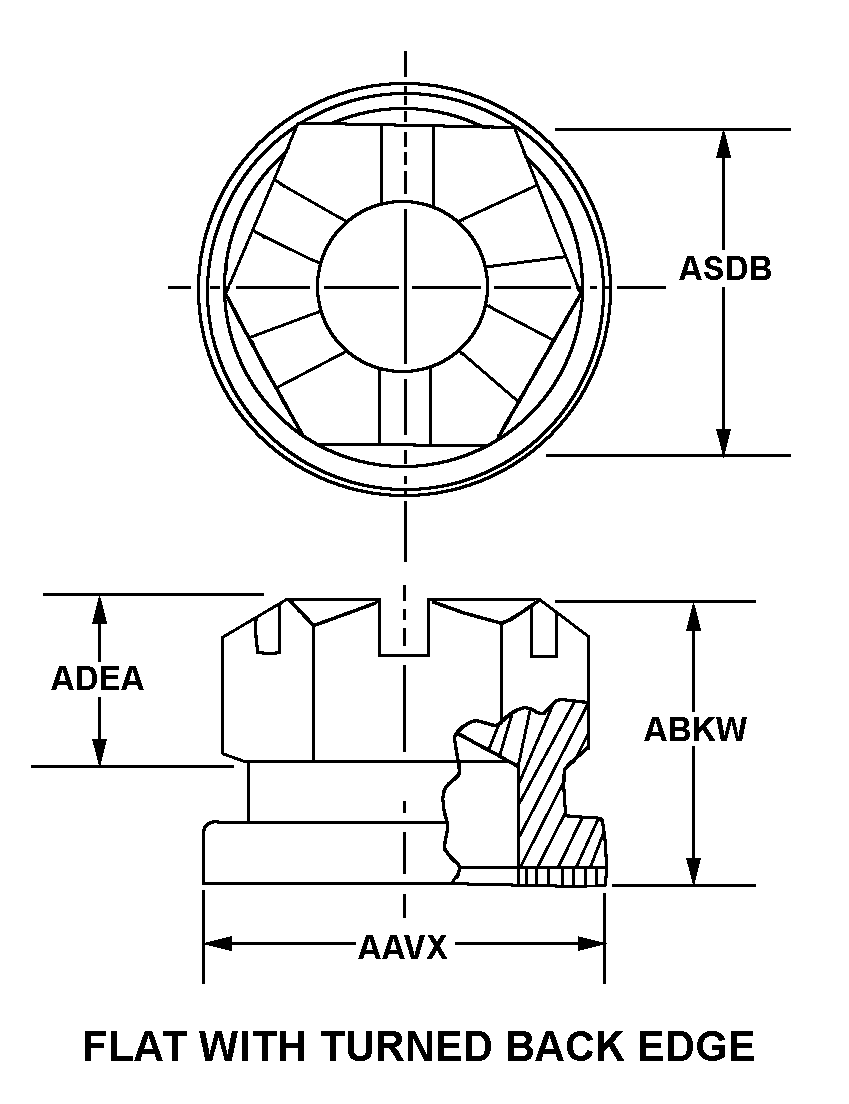

| NUT STYLE | A312 FLAT WITH TURNED BACK EDGE |
| WASHER OUTSIDE DIAMETER | 0.460 INCHES MINIMUM AND 0.490 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.334 INCHES MINIMUM AND 0.374 INCHES MAXIMUM |
| NUT HEIGHT | ANY ACCEPTABLE |
| WIDTH ACROSS FLATS | 0.367 INCHES MINIMUM AND 0.376 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE WITH NONMETALLIC INSERT |
| NUT COUNTERBORE DEPTH | 0.141 INCHES MINIMUM AND 0.161 INCHES MAXIMUM NUT |
| COUNTERBORE DIAMETER | 0.230 INCHES MINIMUM AND 0.240 INCHES MAXIMUM NUT |
| TEMP RATING | 250.0 DEG FAHRENHEIT MAXIMUM |
| III BEARING SURFACE FINISH | 125.0 MICROINCHES |
Restrictions/Controls & Freight Information | NSN 5310-00-402-5711
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013540 | ALUM NUTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-402-5711
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BJ | AH-64 Airframe |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
