NSN 5310-00-331-9556 560021, 00-331-9556, 003319556
Product Details | SHOULDERED AND RECESSED WASHER
5310-00-331-9556 A washer, round in shape, having a centrally located hole. One bearing surface is flat, the other surface is in the form of a raised shoulder (boss) having a flat bearing surface. Either or both of the bearing surfaces must be broken by a counterbore, countersink, or similar shaped recess. The thickness of the shoulder (boss) must not exceed 25 percent of the shoulder (boss) diameter. For items having a shoulder (boss) of greater thickness, use BEARING, SLEEVE; BUSHING, SLEEVE; or SPACER, SLEEVE. Excludes INSULATOR, WASHER and thrust type washers.
Part Alternates: 560021, 5310-00-331-9556, 00-331-9556, 5310003319556, 003319556
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-331-9556 | 15935 ( WASHER, SHOULDERED AND RECESSED ) |

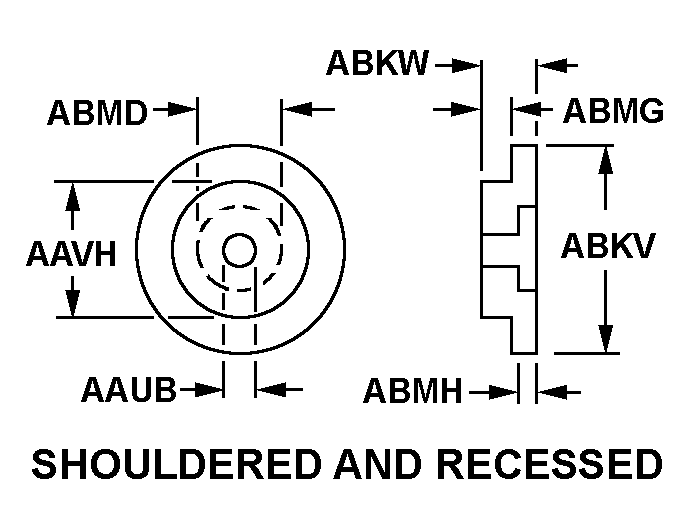

Drawings & Photos | NSN 5310-00-331-9556
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-331-9556
Technical Data | NSN 5310-00-331-9556
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6448 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS2400 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 46.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 36 SHOULDERED AND RECESSED |
| HOLE DIAMETER | 0.384 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| SHOULDER DIAMETER | 0.670 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.765 INCHES MINIMUM AND 1.775 INCHES MAXIMUM |
| RECESS DIAMETER | 1.650 INCHES NOMINAL |
| SHOULDER HEIGHT | 0.090 INCHES NOMINAL |
| RECESS DEPTH | 0.080 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.150 INCHES NOMINAL |
| MANUFACTURERS CODE | 30715 |
| DESIGN CONTROL REFERENCE | 560021 |
