Product Details | SHOULDERED AND RECESSED WASHER
5310-00-858-0838 A washer, round in shape, having a centrally located hole. One bearing surface is flat, the other surface is in the form of a raised shoulder (boss) having a flat bearing surface. Either or both of the bearing surfaces must be broken by a counterbore, countersink, or similar shaped recess. The thickness of the shoulder (boss) must not exceed 25 percent of the shoulder (boss) diameter. For items having a shoulder (boss) of greater thickness, use BEARING, SLEEVE; BUSHING, SLEEVE; or SPACER, SLEEVE. Excludes INSULATOR, WASHER and thrust type washers.
Part Alternates: 9026241, 902624-1, 5310-00-858-0838, 00-858-0838, 5310008580838, 008580838
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-858-0838 | 15935 ( WASHER, SHOULDERED AND RECESSED ) |

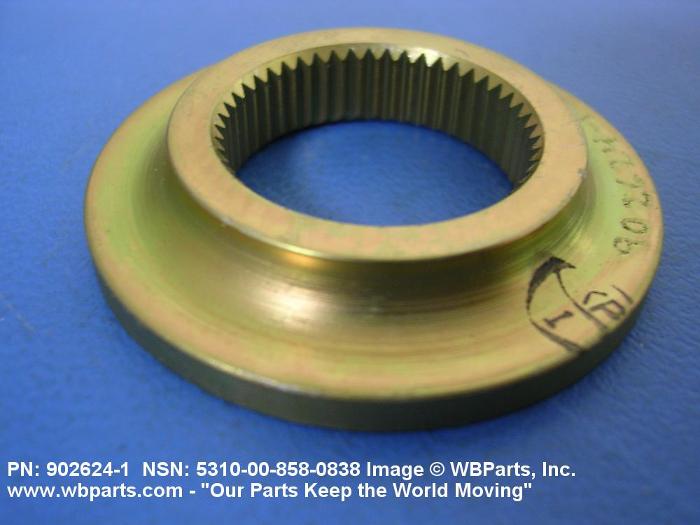

Drawings & Photos | NSN 5310-00-858-0838
Demand History | NSN 5310-00-858-0838
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-858-0838 | 2014-06-172 | 24 | DIBBS |
| 5310-00-858-0838 | 2013-12-357 | 18 | DIBBS |
| 5310-00-858-0838 | 2011-08-237 | 4 | DIBBS |
| 5310-00-858-0838 | 2008-07-199 | 14 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-858-0838
Technical Data | NSN 5310-00-858-0838
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 606 OR COPPER ALLOY 614 OR COPPER ALLOY 630 OR COPPER ALLOY 642 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-465 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |

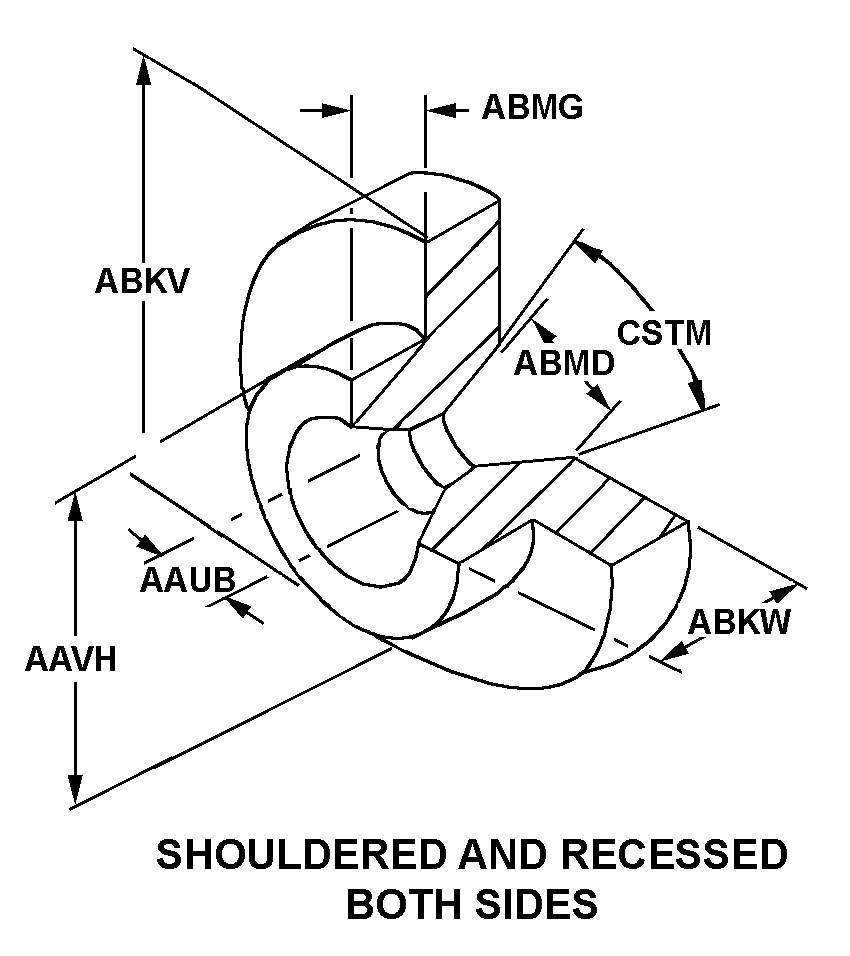

| STYLE DESIGNATOR | 39 SHOULDERED AND RECESSED BOTH SIDE |
| HOLE DIAMETER | 0.890 INCHES MINIMUM AND 0.920 INCHES MAXIMUM |
| SHOULDER DIAMETER | 1.110 INCHES MINIMUM AND 1.140 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.610 INCHES MINIMUM AND 1.640 INCHES MAXIMUM |
| RECESS DIAMETER | 0.930 INCHES MINIMUM AND 0.960 INCHES MAXIMUM |
| SHOULDER HEIGHT | 0.160 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.110 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| RECESS ANGLE | 45.0 DEGREES NOMINAL |
| SPECIAL FEATURES | SERRATIONS ON INSIDE DIAMETER |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 902624-1 |
