NSN 5310-00-858-2514 R60094, R600-94, 00-858-2514
Product Details | SLEEVE NUT
5310-00-858-2514 An internally threaded item with a cylindrical and/or square, hexagonal, octagonal, or dodecagonal outer periphery (parallel to the threaded axis) a portion(s) of which may or may not be enlarged, forming a flange(s) and/or shoulder(s). Items not having an enlarged outer portion may be threaded, a part of the full length, or tapped from both ends. Items having an enlarged outer portion (flange(s) or shoulder(s)) may be threaded the full length, threaded a part of the full length, or tapped from both ends. Items tapped from both ends shall have either right-hand threads on both ends or left-hand threads on both ends. For items conforming to any of the above and having a length overall exceeding two times the largest outside diameter or width across flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. For items with an outside contour that is the same the full length, having a continuous thread through its entire length, and the length does not exceed two times the diameter or width across the flats use NUT (1), PLAIN (as modified). Excludes NUT (1), PLAIN, CAP. See also TURNBUCKLE BODY.
Part Alternates: R60094, R600-94, 5310-00-858-2514, 00-858-2514, 5310008582514, 008582514
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-858-2514 | 29735 ( NUT, SLEEVE ) |

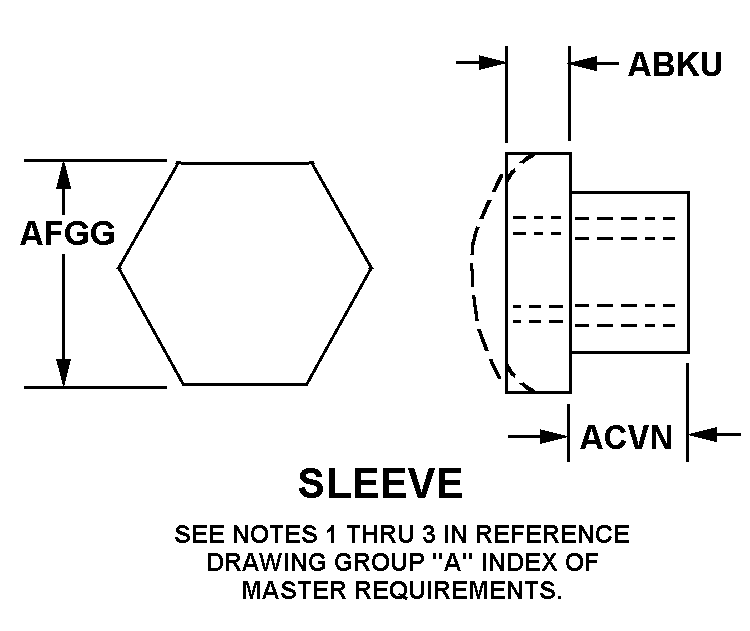

Drawings & Photos | NSN 5310-00-858-2514
Cross Reference | NSN 5310-00-858-2514
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| R600-94 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-858-2514
Technical Data | NSN 5310-00-858-2514
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UN |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A33A SLEEVE |
| FLANGE THICKNESS | 0.265 INCHES NOMINAL |
| NUT DIAMETER | 0.980 INCHES NOMINAL |
| NUT LENGTH | 0.270 INCHES NOMINAL |
| FLANGE WIDTH ACROSS FLATS | 1.000 INCHES NOMINAL |

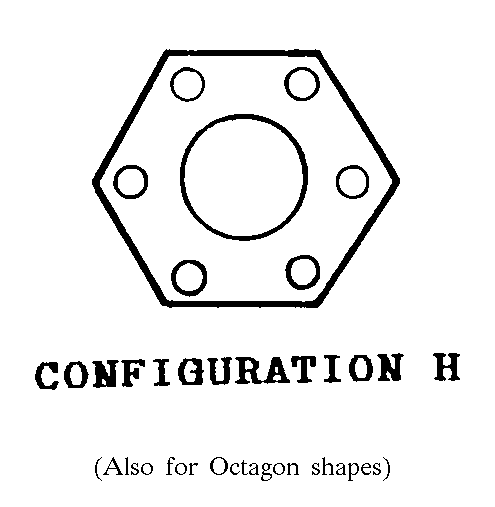

| HOLE CONFIGURATION STYLE | H8 CONFIGURATION H |
| HOLE TYPE AND QUANTITY | 6 DRILLED |
| DRILLED HOLE DIAMETER | 0.047 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE | ROUND NUT HEXAGONAL FLANGE |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | R600-94 |
