Product Details | SLEEVE NUT
5310-00-331-5257 An internally threaded item with a cylindrical and/or square, hexagonal, octagonal, or dodecagonal outer periphery (parallel to the threaded axis) a portion(s) of which may or may not be enlarged, forming a flange(s) and/or shoulder(s). Items not having an enlarged outer portion may be threaded, a part of the full length, or tapped from both ends. Items having an enlarged outer portion (flange(s) or shoulder(s)) may be threaded the full length, threaded a part of the full length, or tapped from both ends. Items tapped from both ends shall have either right-hand threads on both ends or left-hand threads on both ends. For items conforming to any of the above and having a length overall exceeding two times the largest outside diameter or width across flats, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. For items with an outside contour that is the same the full length, having a continuous thread through its entire length, and the length does not exceed two times the diameter or width across the flats use NUT (1), PLAIN (as modified). Excludes NUT (1), PLAIN, CAP. See also TURNBUCKLE BODY.
Part Alternates: 241109, 5310-00-331-5257, 00-331-5257, 5310003315257, 003315257
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-331-5257 | 29735 ( NUT, SLEEVE ) |

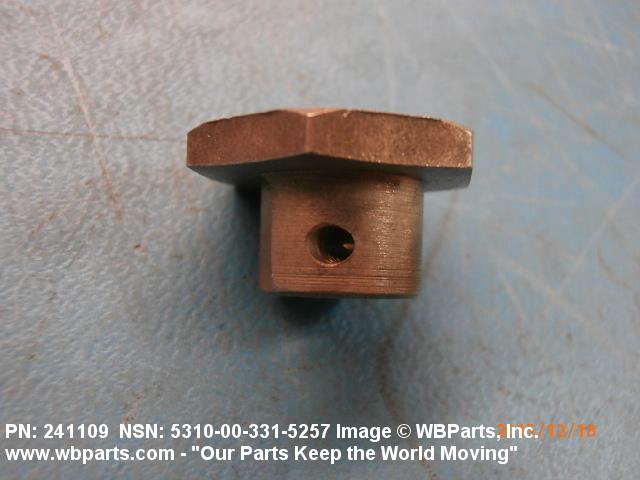

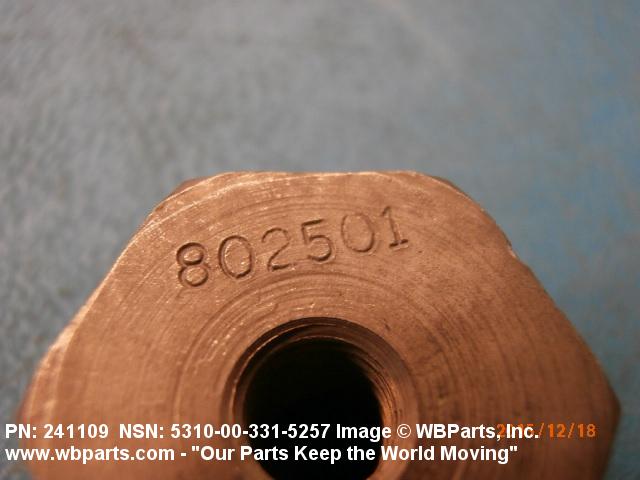

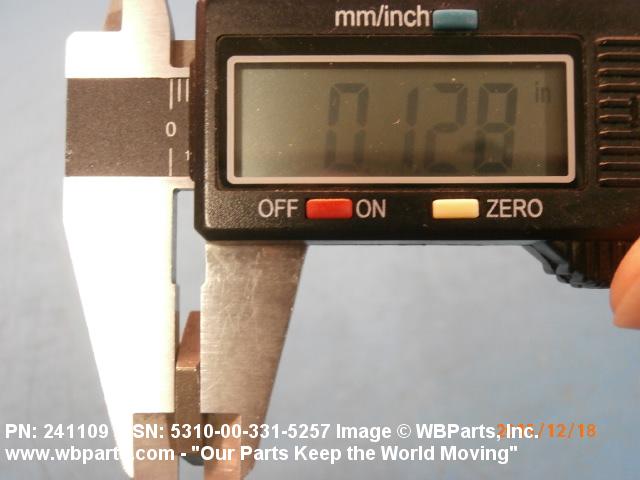

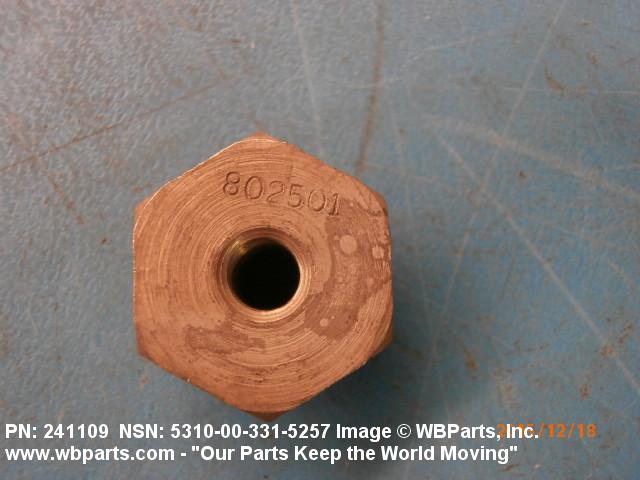

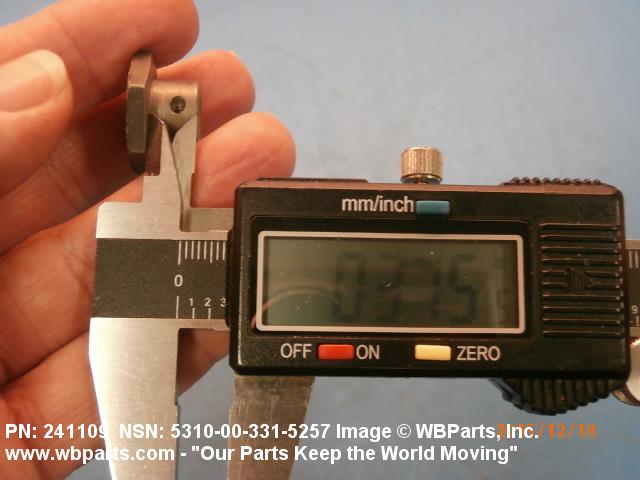

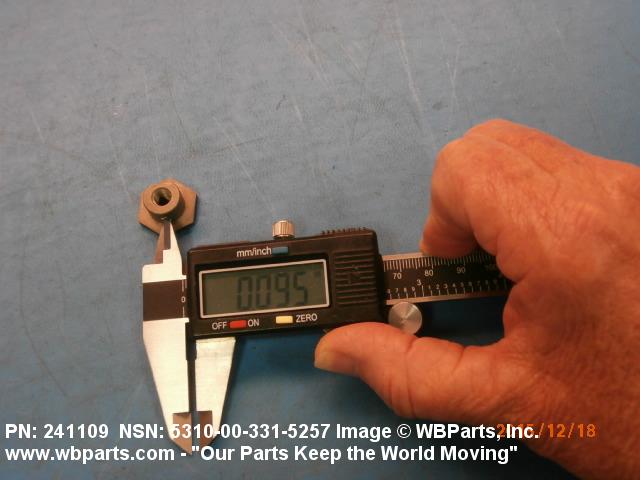

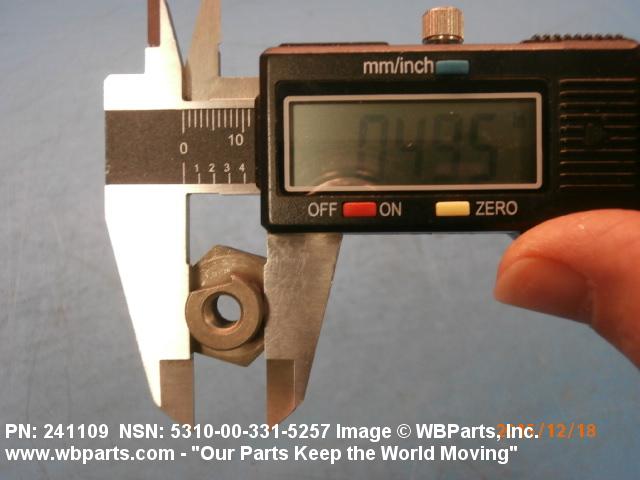

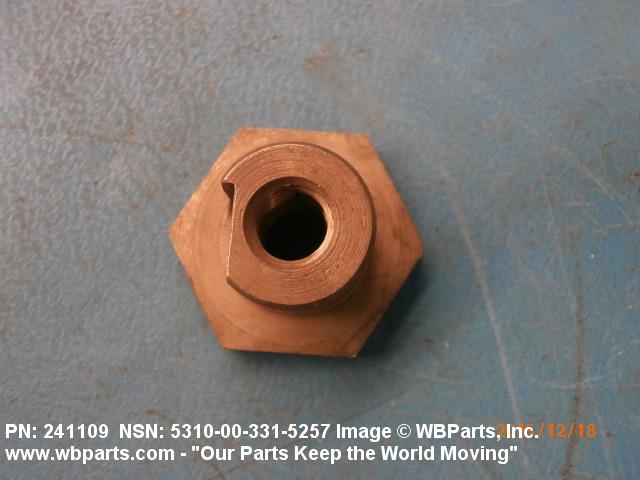

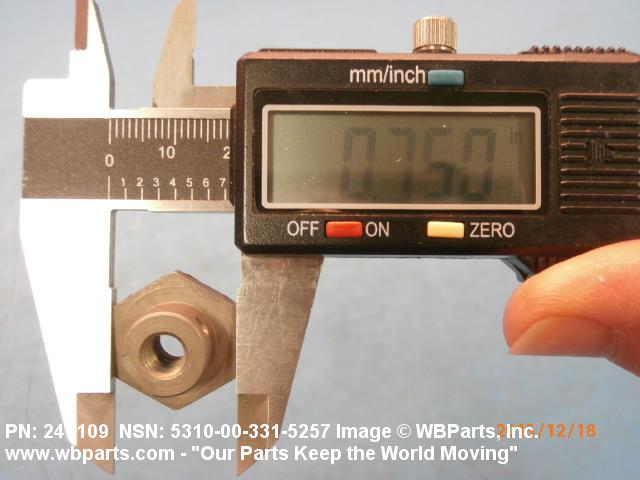

Drawings & Photos | NSN 5310-00-331-5257
Demand History | NSN 5310-00-331-5257
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 241109 | 2015-12-341 | 4 | United States |
| 241109 | 2014-05-128 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-00-331-5257
Technical Data | NSN 5310-00-331-5257
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | LEFT-HAND |
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A33A SLEEVE |
| FLANGE THICKNESS | 0.125 INCHES NOMINAL |
| NUT DIAMETER | 0.498 INCHES NOMINAL |
| NUT LENGTH | 0.318 INCHES NOMINAL |
| FLANGE WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL |
| COUNTERSINK ANGLE | 90.0 DEGREES NOMINAL NUT |
| CROSS-SECTIONAL SHAPE | HEXAGONAL FIRST END ROUND SECOND END |
| TEMP RATING | NOT RATED |
| SPECIAL FEATURES | ONE HOLE,0.094 IN. DIA LOCATED 0.125 IN. FROM END OF NUT |
| MANUFACTURERS CODE | 16004 |
| DESIGN CONTROL REFERENCE | 241109 |
