NSN 5310-00-332-0032 N86402ALT1PC4B, N8640-2ALT1PC4B, N86402ALT2PC4B
Product Details | FLAT WASHER
5310-00-332-0032 A washer having a centrally located hole with a solid or laminated cross-section and two flat parallel bearing surfaces. The hole must be 75 percent or less than the largest dimension and the bearing surface finish is greater than 32 microinch (0.8 micrometer). The thickness cannot exceed 25 percent of the largest outside dimension. When the largest outside dimension is less than 1/4 inch or 6mm, the thickness must be 0.006 inches (0.15mm) or greater and for items 1/4 inch (6mm) or larger, the thickness must be 0.016 inches (0.4mm) or greater. The maximum tolerance is applied to dimensions and used as a determining factor. Items with separable lamination use SHIM. For items fabricated from ceramic or electrically rated materials by specification or industry standards use INSULATOR (1), WASHER. Excludes DISK, VALVE, graphite impregnated and lubricated items.
Part Alternates: N86402ALT1PC4B, N8640-2ALT1PC4B, N86402ALT2PC4B, N8640-2ALT2PC4B, 521315901998669ALT2PC4B, 52131-5901-998669ALT2PC4B, 52131S5901998669ALT1PC4B, 52131S5901-998669ALT1PC4B, 52MAD1282N18PC1051132, 52MAD1282N18PC105-1132, 52MAD1282N18PC105X1132, 52MAD1343N3REVCPC71132, 52MAD1343N3REVCPC7-1132, 54MAD1343N3REVCPC71132, 54MAD1343N3REVCPC7-1132, 57138011444715REVAPC1051132, 571-3801-1444715REVAPC105-1132, 57138011444715REVAPC105X1132, 571-3801-1444715REVAPC105X1132, 5H401132, 5H40-1132, 5H40-1132 DISK VALVE, 5H401132DISKVALVE, 5310-00-332-0032, 00-332-0032, 5310003320032, 003320032
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-332-0032 | 13393 ( WASHER, FLAT ) |

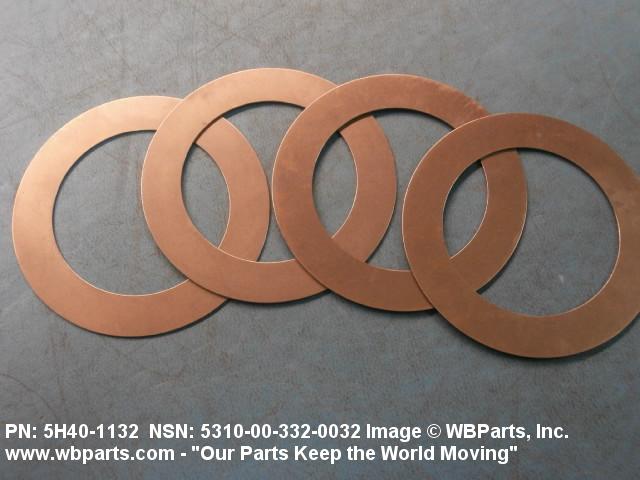

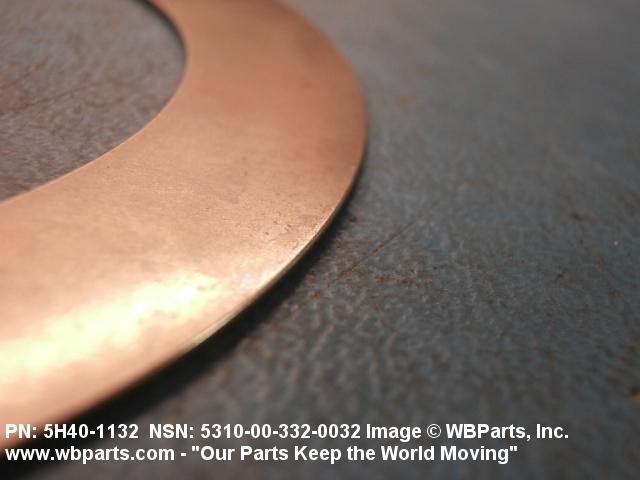

Drawings & Photos | NSN 5310-00-332-0032
Demand History | NSN 5310-00-332-0032
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 52MAD1282N18PC105-1132 | 2022-08-221 | 112 | DIBBS |
| 52MAD1282N18PC105X1132 | 2022-08-221 | 112 | DIBBS |
| 52MAD1343N3REVCPC7-1132 | 2022-08-221 | 112 | DIBBS |
| 5H40-1132 DISK VALVE | 2022-08-221 | 112 | DIBBS |
| 5310-00-332-0032 | 2018-11-332 | 72 | DIBBS |
| 5H401132 | 2016-10-294 | 4 | United States |
| 5H401132 | 2016-10-294 | 4 | United States |
| 5310-00-332-0032 | 2016-09-266 | 125 | DIBBS |
| 5310-00-332-0032 | 2016-07-209 | 38 | DIBBS |
| 5310-00-332-0032 | 2016-03-82 | 38 | DIBBS |
| 5310-00-332-0032 | 2015-10-281 | 50 | DIBBS |
| 5310-00-332-0032 | 2015-10-278 | 50 | DIBBS |
| 5310-00-332-0032 | 2014-10-295 | 67 | DIBBS |
| 5310-00-332-0032 | 2009-05-125 | 183 | DIBBS |
| 5310-00-332-0032 | 2006-01-24 | 12 | US |
Cross Reference | NSN 5310-00-332-0032
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 52131-5901-998669ALT2PC4B | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 52131S5901-998669ALT1PC4B | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 52MAD1282N18PC105-1132 | 10855 | CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION |
| 52MAD1282N18PC105X1132 | 10855 | CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION |
| 52MAD1343N3REVCPC7-1132 | 10855 | CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION |
| 54MAD1343N3REVCPC7-1132 | 10855 | CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION |
| 571-3801-1444715REVAPC105-1132 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 571-3801-1444715REVAPC105X1132 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 5H40-1132 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5H40-1132 DISK VALVE | 10855 | CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION |
| N8640-2ALT1PC4B | 10855 | CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION |
| N8640-2ALT2PC4B | 10855 | CARRIER CORPORATION DIV CARRIER TRANSICOLD DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-00-332-0032
Related Products | NSN 5310-00-332-0032
Technical Data | NSN 5310-00-332-0032
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 80.0 BRINELL NOMINAL |

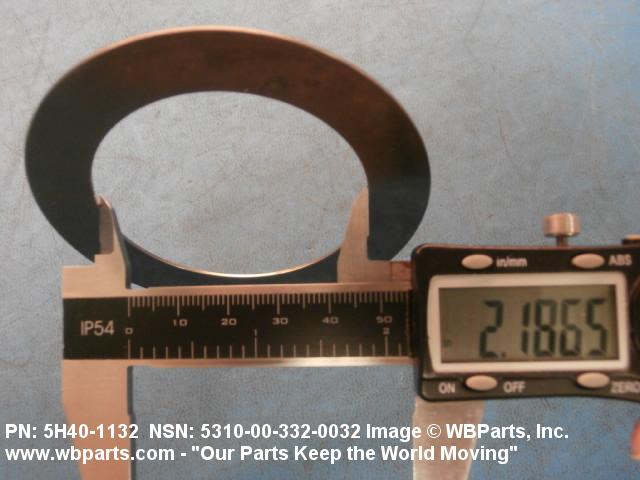

| HOLE DIAMETER | 2.187 INCHES MINIMUM AND 2.189 INCHES MAXIMUM |
| PERIPHERAL SHAPE STYLE | 1 ROUND |

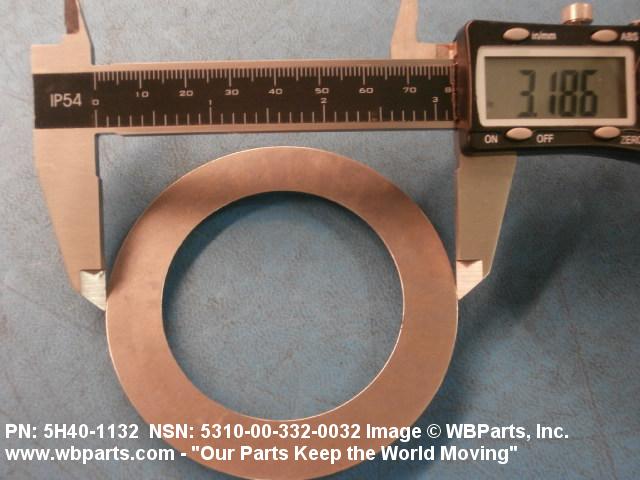

| OVERALL DIAMETER | 3.187 INCHES MINIMUM AND 3.189 INCHES MAXIMUM |
| CENTER HOLE SHAPE STYLE | 1 ROUND |
| CROSS-SECTIONAL SHAPE STYLE | 1 RECTANGULAR |

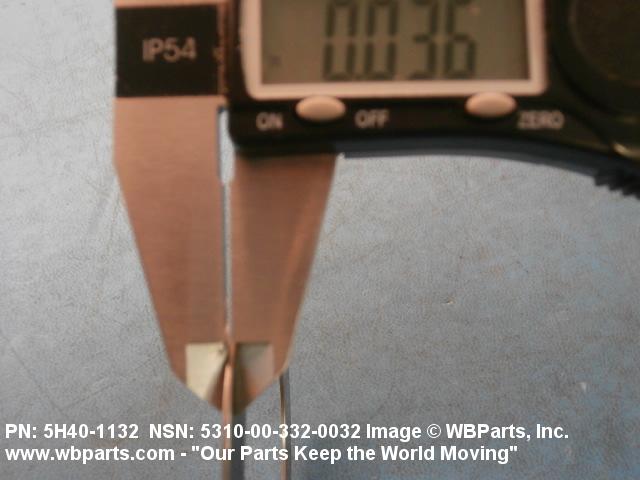

| THICKNESS | 0.034 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-00-332-0032
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-332-0032
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
F EA : Each |
