Product Details | SHEET SPRING NUT

5310-00-208-4936 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.

Part Alternates: 8200485, 5310-00-208-4936, 00-208-4936, 5310002084936, 5315002084936 , 002084936

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG) NSN Assign. NIIN
53 01 JAN 1963 00-208-4936

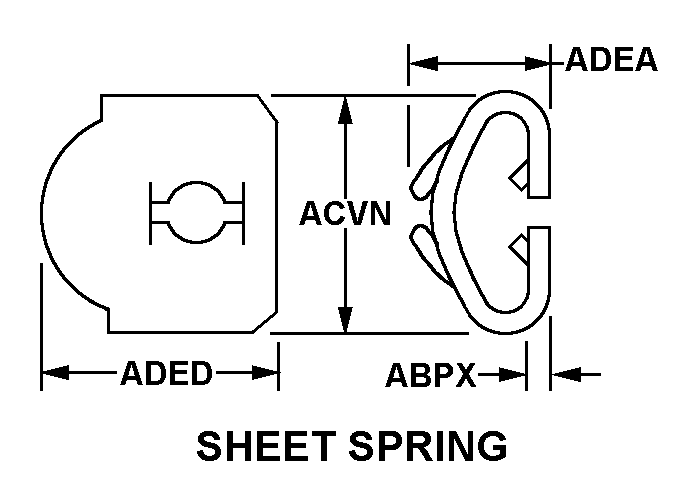

Drawings & Photos | NSN 5310-00-208-4936


Cross Reference | NSN 5310-00-208-4936

Part Number Cage Code Manufacturer
5315002084936 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
8200485 19200 US ARMY ARDEC RDECOM

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-208-4936

Technical Data | NSN 5310-00-208-4936

Characteristic Specifications
MATING MEMBER DIAMETER ACCOMMODATED 0.164 INCHES NOMINAL
MATERIAL STEEL OVERALL
NUT STYLE A170 SHEET SPRING
MATERIAL THICKNESS 0.025 INCHES NOMINAL
NUT LENGTH 0.437 INCHES NOMINAL
NUT HEIGHT ANY ACCEPTABLE
NUT WIDTH 0.375 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-208-4936

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 093486 BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 573 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable
