NSN 5310-00-208-4736 A6939632, A6939-632, A6939632125

Product Details | SHEET SPRING NUT

5310-00-208-4736 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.

Part Alternates: A6939632, A6939-632, A6939632125, A6939-632-125, A693963224G, A6939-632-24G, A693963224J, A6939-632-24J, NAS48715, NAS487-15, 14922150001, 1492215-0001, 2300119, 247628, 6939632, 6939-632, 7629381, 762938-1, 938.56.31.103, 9385631103, 5310-00-208-4736, 00-208-4736, 5310002084736, 002084736

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-208-4736	01865 ( NUT, SHEET SPRING )

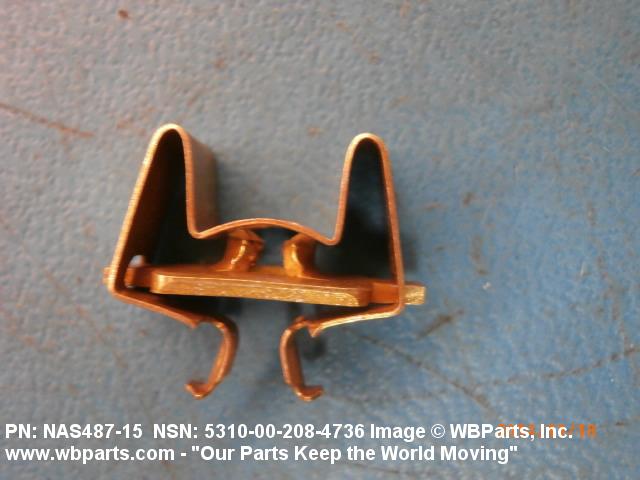

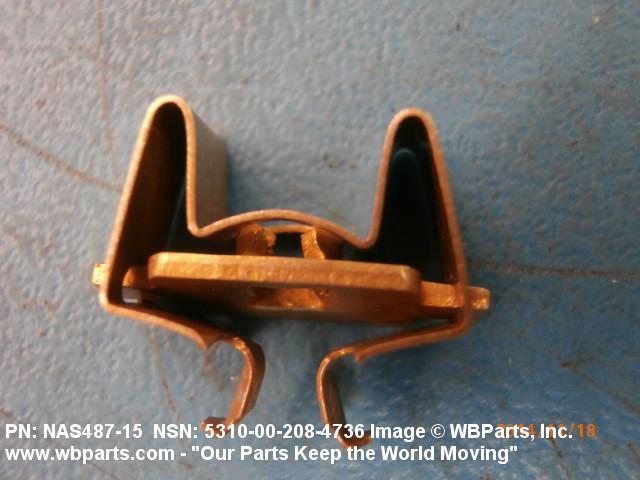

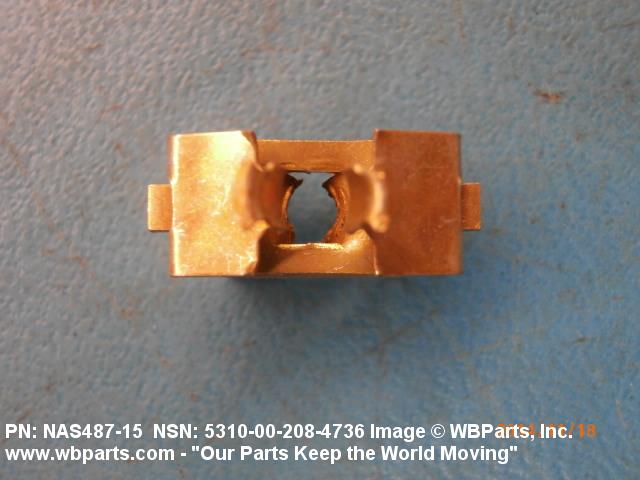

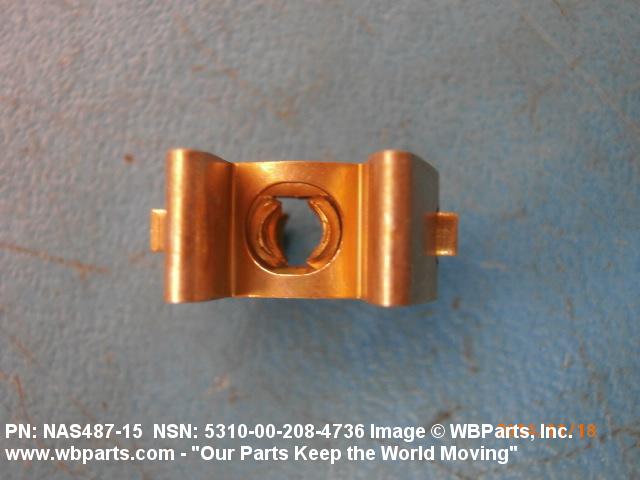

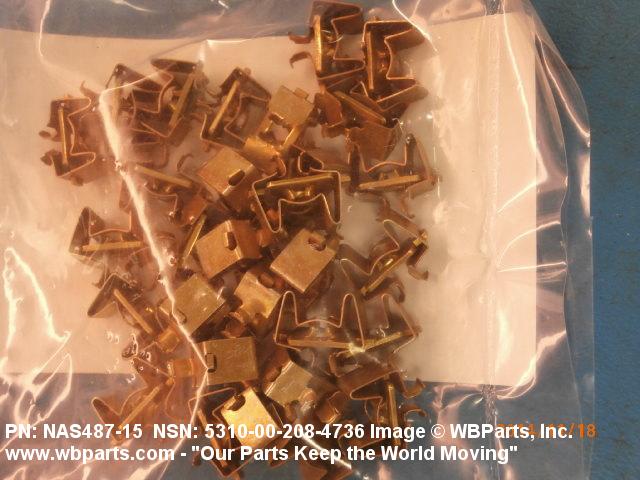

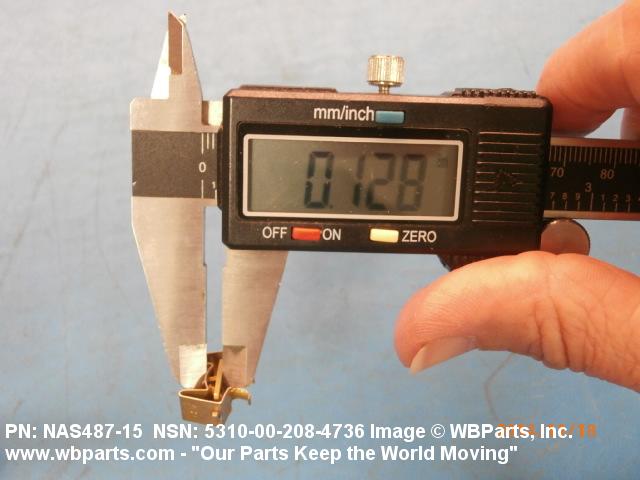

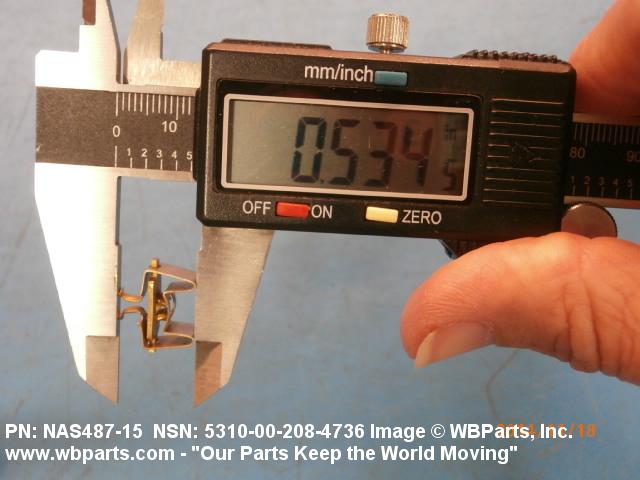

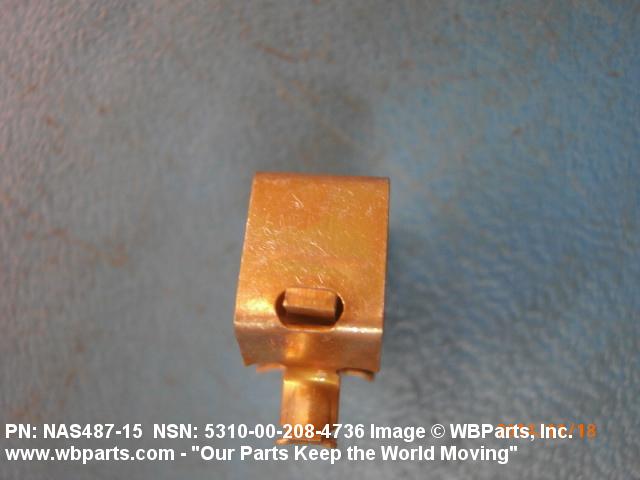

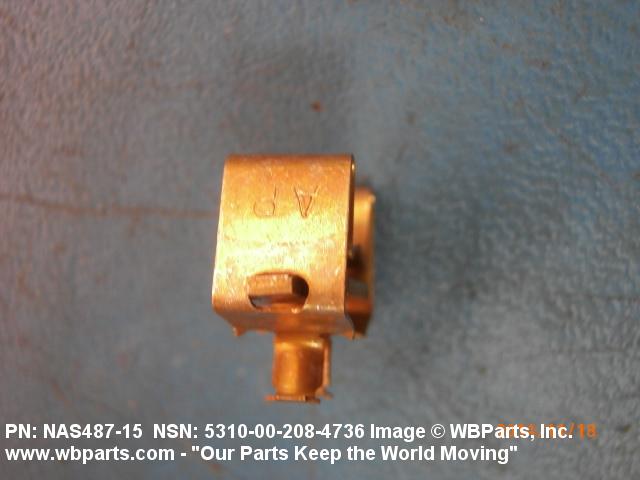

Drawings & Photos | NSN 5310-00-208-4736

Part Number	Request Date	QTY	Origin
5310-00-208-4736	2021-06-03	250	MANUAL
5310-00-208-4736	2016-12-18	7707	DIBBS
5310-00-208-4736	2016-11-02	100	Lebanon
5310-00-208-4736	2015-09-07	6299	DIBBS
NAS48715	2014-11-12	30	United States
5310-00-208-4736	2014-11-05	6586	DIBBS
5310-00-208-4736	2011-06-21	23340	DIBBS
5310-00-208-4736	2011-06-03	20	United States
NAS48715	2011-02-22	10	ES
5310-00-208-4736	2010-05-27	13130	DIBBS
A693963224G	2009-10-29	70	Malaysia
A693963224G	2009-10-26	70	Malaysia
A693963224G	2009-10-20	70	Malaysia
5310-00-208-4736	2009-04-01	14875	DIBBS
5310-00-208-4736	2009-03-10	2051	DIBBS
5310-00-208-4736	2009-01-30	1308	DIBBS
A693963224G	2008-12-18	70	Malaysia
5310-00-208-4736	2008-12-05	70	Philippines
5310-00-208-4736	2008-06-30	2161	DIBBS
5310-00-208-4736	2008-03-10	7609	DIBBS

Cross Reference | NSN 5310-00-208-4736

Part Number	Cage Code	Manufacturer
1492215-0001	02987	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX FLIGHT SYSTEMS
2300119	001JK	EMBRAER S/A
2300119	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
247628	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
6939-632	78553	TINNERMAN PALNUT ENGINEERED PRODUCTS INC
762938-1	19315	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND
762938-1	55972	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
762938-1	99251	CARLETON LIFE SUPPORT SYSTEMS INC. DBA COBHAM MISSION SYSTEM
938.56.31.103	S4080	PILATUS AIRCRAFT LTD
A6939-632	78553	TINNERMAN PALNUT ENGINEERED PRODUCTS INC
A6939-632-125	78553	TINNERMAN PALNUT ENGINEERED PRODUCTS INC
A6939-632-24G	78553	TINNERMAN PALNUT ENGINEERED PRODUCTS INC
A6939-632-24J	78553	TINNERMAN PALNUT ENGINEERED PRODUCTS INC
NAS487-15	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-208-4736

Compare

Related Products | NSN 5310-00-208-4736

5310-00-208-4738, 5310-00-208-4747, 5310-00-208-4755, 5310-00-208-4764, 5310-00-208-4767

Technical Data | NSN 5310-00-208-4736

Characteristic	Specifications
MATING MEMBER DIAMETER ACCOMMODATED	0.138 INCHES NOMINAL
MATERIAL	COPPER ALLOY OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
NUT STYLE	A168 SHEET SPRING

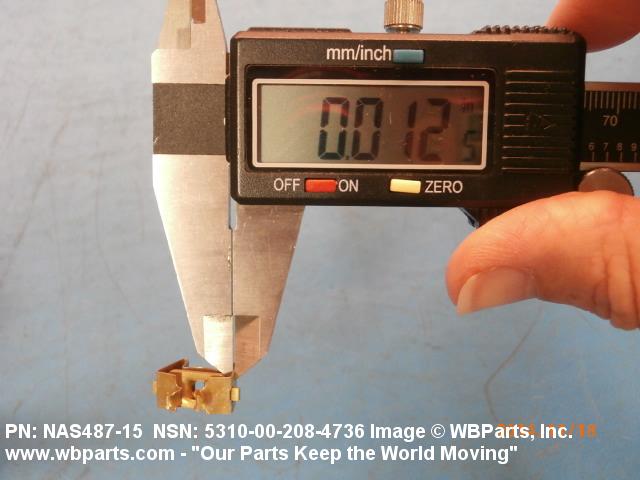

MATERIAL THICKNESS	0.012 INCHES NOMINAL

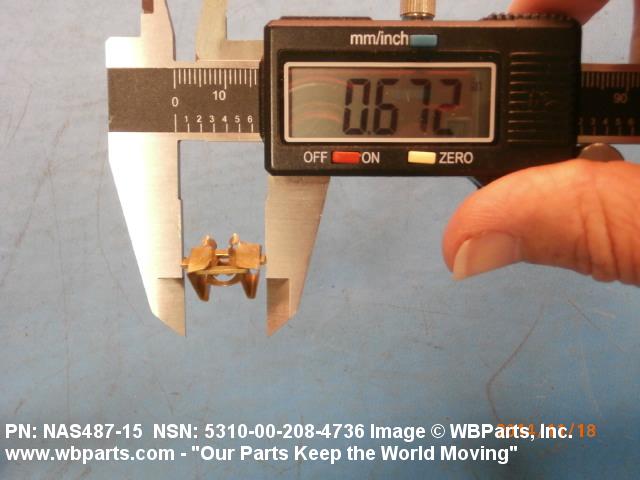

NUT LENGTH	0.656 INCHES NOMINAL
NUT HEIGHT	0.500 INCHES NOMINAL

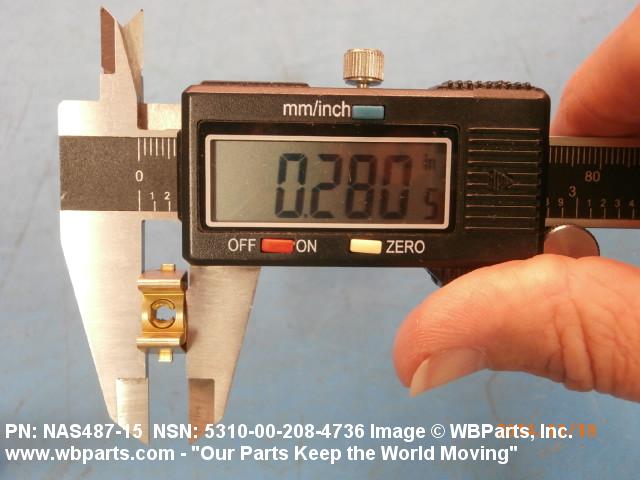

NUT WIDTH	0.281 INCHES NOMINAL
PANEL THICKNESS	0.125 INCHES NOMINAL

Restrictions/Controls & Freight Information | NSN 5310-00-208-4736

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093460	BOLTS/NUTS NOI BBC/ZINC
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-208-4736

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
