NSN 5310-00-004-5118 MS212246, MS21224-6, NE82356

Product Details | ASSEMBLED WASHER SELF-LOCKING NUT

5310-00-004-5118 A nut on which has been assembled a nonremovable washer. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS212246, MS21224-6, NE82356, NE8235-6, F12N7699624, F12N7699-624, 5310-00-004-5118, 00-004-5118, 5310000045118, 000045118

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	07 JUN 1972	00-004-5118	29736 ( NUT, SELF-LOCKING, ASSEMBLED WASHER )

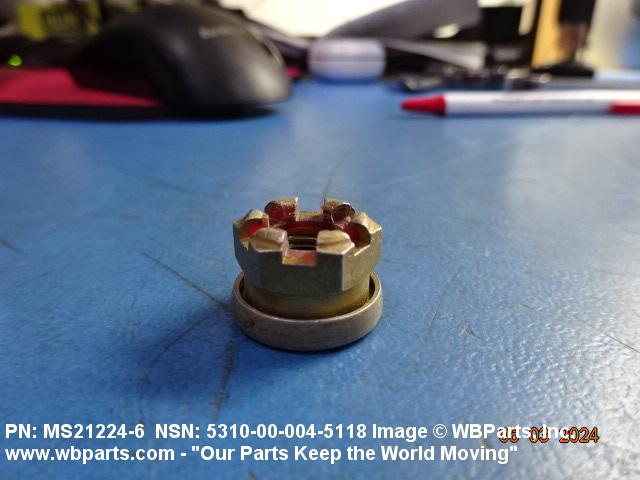

Drawings & Photos | NSN 5310-00-004-5118

Part Number	Request Date	QTY	Origin
5310-00-004-5118	2024-05-141	50	us
5310-00-004-5118	2023-09-254	248	Singapore
5310-00-004-5118	2018-11-334	20479	DIBBS
5310-00-004-5118	2018-10-288	20479	DIBBS
5310-00-004-5118	2018-05-130	1	DIBBS-RFPs
5310-00-004-5118	2018-02-50	100	us
5310-00-004-5118	2017-10-296	25	US
5310-00-004-5118	2017-10-274	4496	DIBBS
5310-00-004-5118	2017-08-240	20500	US
5310-00-004-5118	2017-07-192	20479	US
5310-00-004-5118	2017-06-180	20479	DIBBS
5310-00-004-5118	2016-10-305	4307	DIBBS
5310-00-004-5118	2016-10-297	4307	DIBBS
5310-00-004-5118	2016-02-39	3956	DIBBS
MS21224-6	2015-07-201	50
5310-00-004-5118	2015-06-166	3116	DIBBS
5310-00-004-5118	2014-10-303	1960	DIBBS
5310-00-004-5118	2014-08-217	3964	DIBBS

Cross Reference | NSN 5310-00-004-5118

Part Number	Cage Code	Manufacturer
F12N7699-624	27687	GREER STOP NUT INC.
MS21224-6	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21224-6	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NE8235-6	019L2	MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA
NE8235-6	72962	HARVARD INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-00-004-5118

Compare

Related Products | NSN 5310-00-004-5118

5310-00-004-5119, 5310-00-004-5139, 5310-00-004-5140, 5310-00-004-5142, 5310-00-004-5158

Technical Data | NSN 5310-00-004-5118

Characteristic	Specifications

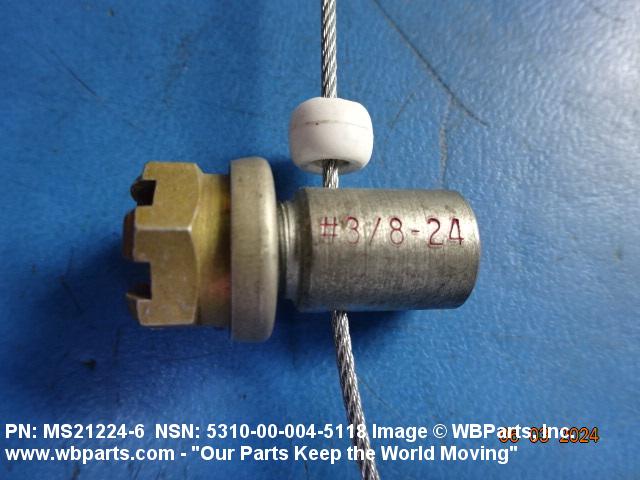

THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.375 INCHES
THREAD QUANTITY PER INCH	24
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	PLASTIC NYLON LOCKING INSERT STEEL COMP 1137 OR STEEL COMP 11L37 OR STEEL COMP 8740 NUT ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 7075 WASHER
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5024 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5020 ASSN STD 2ND MATERIAL RESPONSE OR AMS 6322 ASSN STD 3RD MATERIAL RESPONSE OR AMS 6323 ASSN STD 3RD MATERIAL RESPONSE OR AMS 6325 ASSN STD 3RD MATERIAL RESPONSE OR AMS 6327 ASSN STD 3RD MATERIAL RESPONSE OR AMS 6358 ASSN STD 3RD MATERIAL RESPONSE NUT QQ-A-225/6,T4 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-250/13,T6 FED SPEC 2ND MATERIAL RESPONSE WASHER
SURFACE TREATMENT	CADMIUM AND CHROMATE NUT CHROMATE WASHER
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TYPE 2 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE NUT MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE WASHER
HARDNESS RATING	NOT RATED
NUT STYLE	A312 FLAT WITH TURNED BACK EDGE

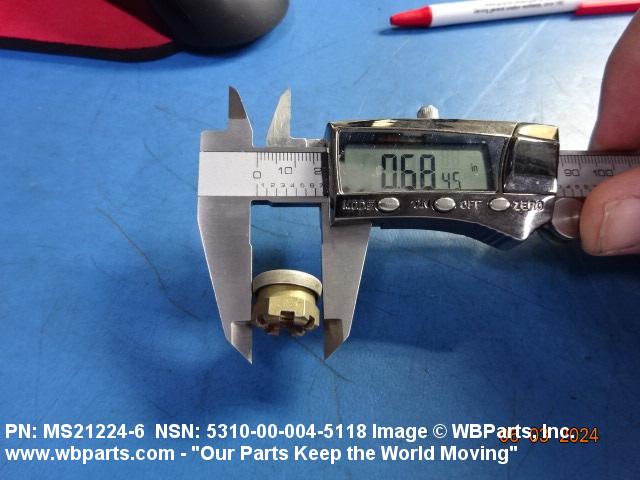

WASHER OUTSIDE DIAMETER	0.680 INCHES MINIMUM AND 0.710 INCHES MAXIMUM

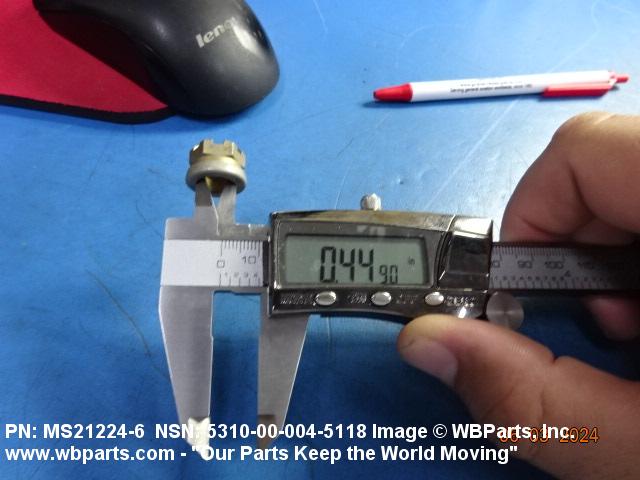

OVERALL HEIGHT	0.442 INCHES MINIMUM AND 0.482 INCHES MAXIMUM
NUT HEIGHT	ANY ACCEPTABLE

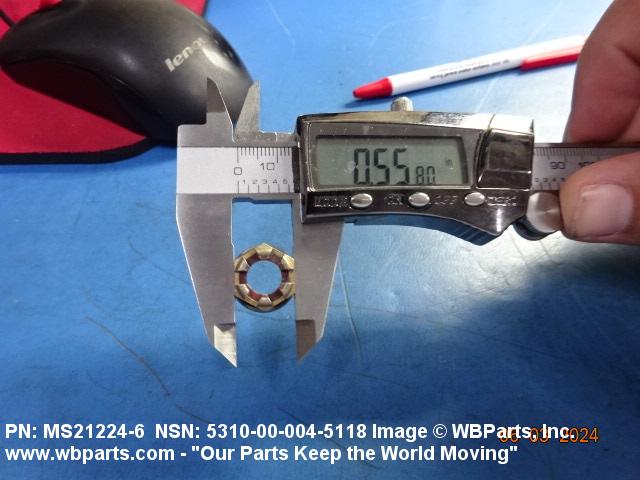

WIDTH ACROSS FLATS	0.553 INCHES MINIMUM AND 0.564 INCHES MAXIMUM

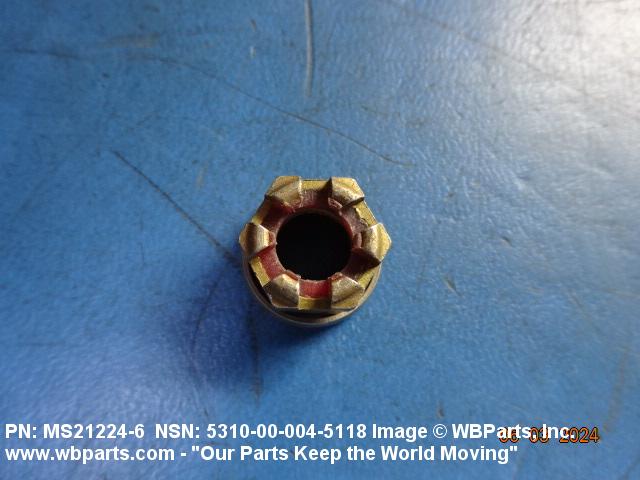

LOCKING FEATURE	PREVAILING TORQUE WITH NONMETALLIC INSERT
NUT COUNTERBORE DEPTH	0.218 INCHES MINIMUM AND 0.238 INCHES MAXIMUM NUT
COUNTERBORE DIAMETER	0.450 INCHES MINIMUM AND 0.460 INCHES MAXIMUM NUT
TEMP RATING	250.0 DEG FAHRENHEIT MAXIMUM
III BEARING SURFACE FINISH	125.0 MICROINCHES

Restrictions/Controls & Freight Information | NSN 5310-00-004-5118

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013540	ALUM NUTS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-00-004-5118

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
