NSN 5307-01-479-9681 CB4000C5MCRA15M, CB4000C-5M-CRA-15M, CB4000CR5MCRA15M
Product Details | BONDED STUD
5307-01-479-9681 A headed fastener, externally threaded. The head is intended to be fastened by an adhesive. The head may also be fastened with rivets. The head is not designed to be turned with a wrench or inserted driver.
Part Alternates: CB4000C5MCRA15M, CB4000C-5M-CRA-15M, CB4000CR5MCRA15M, 5307-01-479-9681, 01-479-9681, 5307014799681, 014799681
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 NOV 2000 | 01-479-9681 | 37234 ( STUD, BONDED ) |
Drawings & Photos | NSN 5307-01-479-9681
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-479-9681
Technical Data | NSN 5307-01-479-9681
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 |

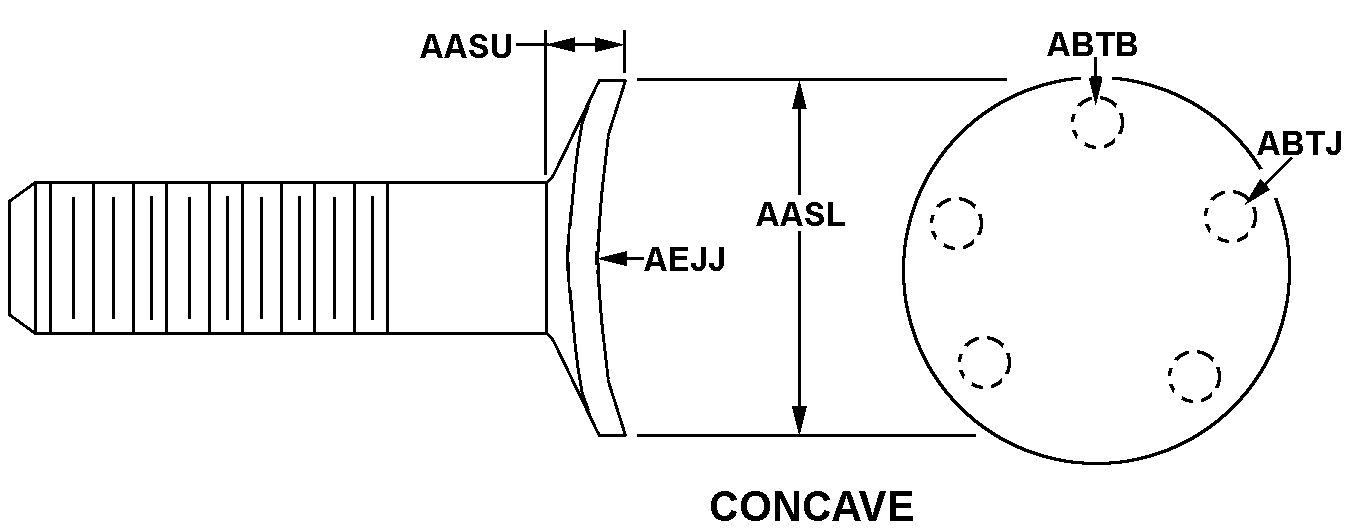

| STYLE DESIGNATOR | 149 CONCAVE |
| HEAD HEIGHT | 0.1 MILLIMETERS MAXIMUM |
| OVERALL LENGTH | 35.0 METERS NOMINAL |
| III END ITEM IDENTIFICATION | HELICOPTER UH-TIGER FUSELAGE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | STUD,COMPOSITE BASE,ADHESIVE BONDED |
Restrictions/Controls & Freight Information | NSN 5307-01-479-9681
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
