Product Details | BONDED STUD
5307-01-360-9120 A headed fastener, externally threaded. The head is intended to be fastened by an adhesive. The head may also be fastened with rivets. The head is not designed to be turned with a wrench or inserted driver.
Part Alternates: P07525, P075-25, 5307-01-360-9120, 01-360-9120, 5307013609120, 013609120
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JUL 1992 | 01-360-9120 | 37234 ( STUD, BONDED ) |
Drawings & Photos | NSN 5307-01-360-9120
Demand History | NSN 5307-01-360-9120
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-360-9120 | 2024-05-136 | 77 | DIBBS |
| P07525 | 2023-02-52 | 1 | United States |
| 5307-01-360-9120 | 2021-12-342 | 25 | US |
Cross Reference | NSN 5307-01-360-9120
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P075-25 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-01-360-9120
Related Products | NSN 5307-01-360-9120
Technical Data | NSN 5307-01-360-9120
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

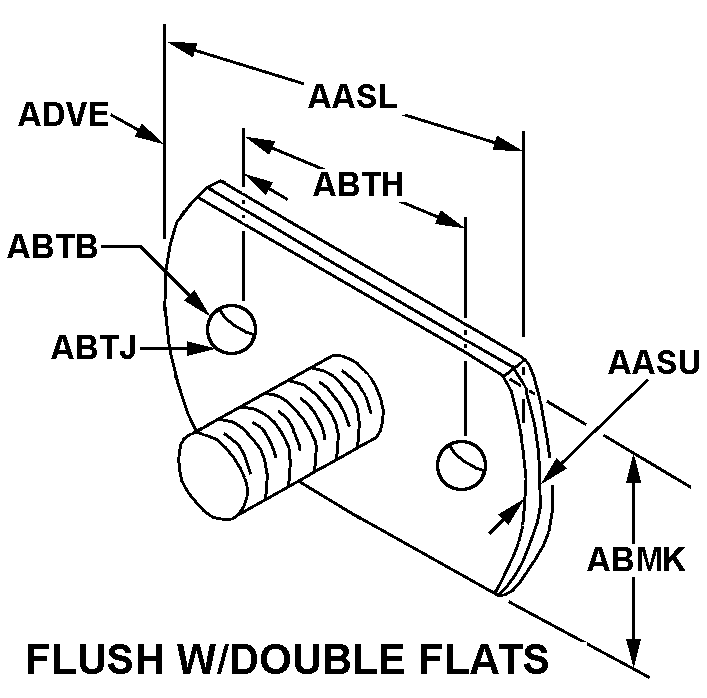

| STYLE DESIGNATOR | 153 FLUSH WITH DOUBLE FLATS |
| HEAD DIAMETER | 0.680 INCHES NOMINAL |
| HEAD HEIGHT | 0.080 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.156 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.875 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY | 2 |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.380 INCHES NOMINAL |
| SPECIAL TEST FEATURES | FOR STUD THREAD PROTECTION USE P690-172-14 VINYL CAPS |
