NSN 5307-01-197-5365 2201500, 01-197-5365, 011975365
Product Details | SHOULDERED AND STEPPED STUD
5307-01-197-5365 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends, on which the nominal diameter of one threaded section is greater than the other. All or part of the unthreaded section is greater than the maximum major diameter of the largest threaded section. It may be thread relieved. Excludes items with tapered threads. See also STUD, LOCKED IN.
Part Alternates: 2201500, 5307-01-197-5365, 01-197-5365, 5307011975365, 011975365
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 DEC 1984 | 01-197-5365 | 15944 ( STUD, SHOULDERED AND STEPPED ) |

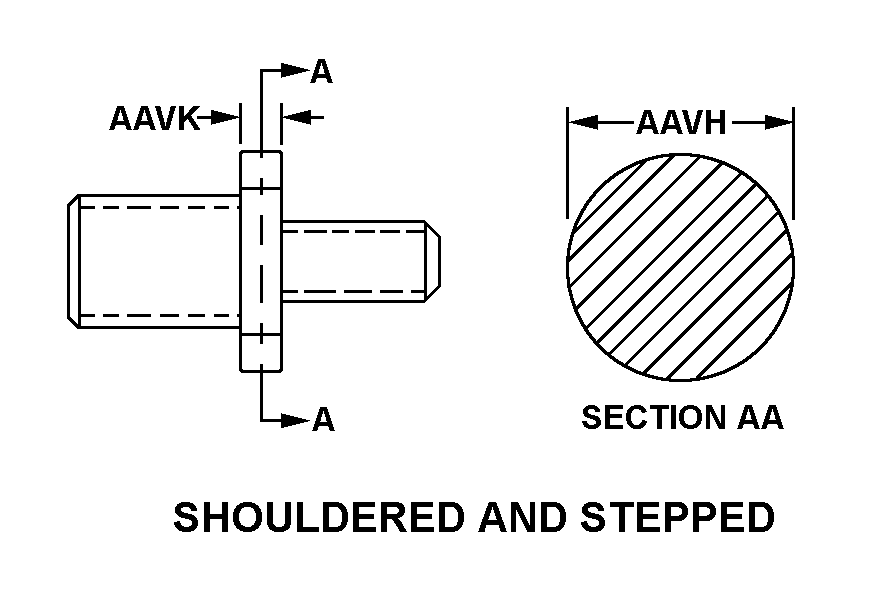

Drawings & Photos | NSN 5307-01-197-5365
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-01-197-5365
Technical Data | NSN 5307-01-197-5365
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP B1112 |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE I FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 107C SHOULDERED AND STEPPED |
| SHOULDER DIAMETER | 0.562 INCHES NOMINAL |
| SHOULDER LENGTH | 0.125 INCHES NOMINAL |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNF STUD THREAD |
| NOMINAL THREAD SIZE | 0.190 INCHES NUT THREAD 0.250 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD 28 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.562 INCHES NOMINAL NUT THREAD 0.500 INCHES NOMINAL STUD THREAD |
| SPECIAL FEATURES | NUT END IS 1.000 IN. LONG HOWEVER IT IS THREADED ONLY 0.562 IN. |
Restrictions/Controls & Freight Information | NSN 5307-01-197-5365
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
