NSN 5307-00-939-2229 510863, 5108863, 00-939-2229
Product Details | SHOULDERED AND STEPPED STUD
5307-00-939-2229 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends, on which the nominal diameter of one threaded section is greater than the other. All or part of the unthreaded section is greater than the maximum major diameter of the largest threaded section. It may be thread relieved. Excludes items with tapered threads. See also STUD, LOCKED IN.
Part Alternates: 510863, 5108863, 5307-00-939-2229, 00-939-2229, 5307009392229, 009392229
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 NOV 1965 | 00-939-2229 | 15944 ( STUD, SHOULDERED AND STEPPED ) |

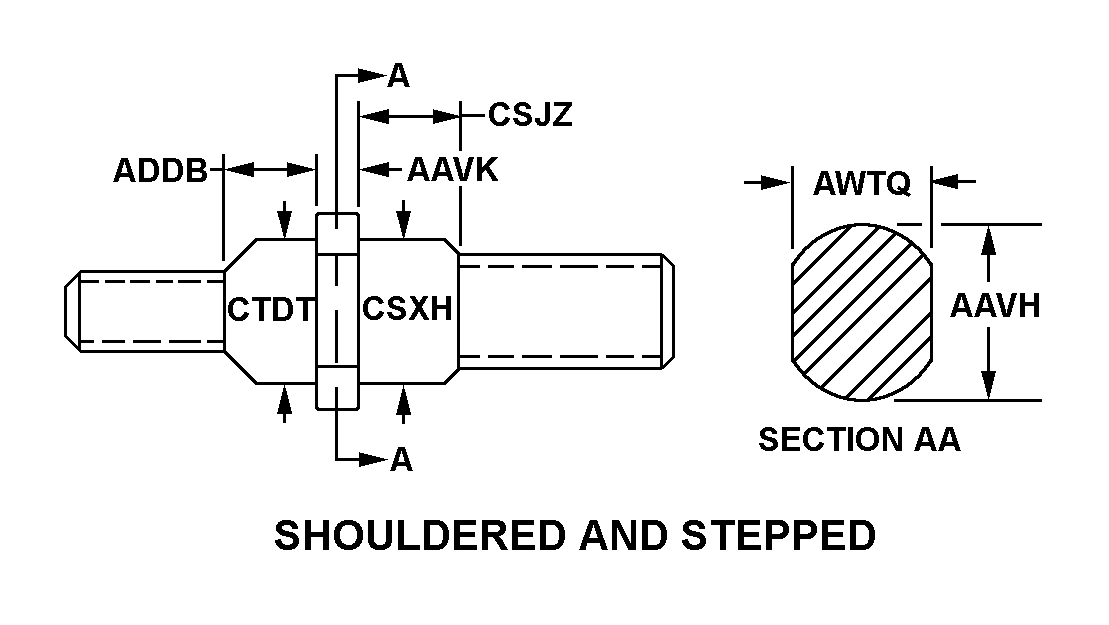

Drawings & Photos | NSN 5307-00-939-2229
Cross Reference | NSN 5307-00-939-2229
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 510863 | 02991 | PRECISION THREADED PRODUCTS, INC. |
| 510863 | 11449 | TURBO POWER & MARINE SYSTEM INC SUB OF UNITED TECHNOLOGIES CORP |
| 510863 | 56055 | PRECISION SPEED MANUFACTURING, LLC |
| 510863 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 5108863 | 55213 | AIRCRAFT COMPONENTS AND FASTENERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-939-2229
Related Products | NSN 5307-00-939-2229
Technical Data | NSN 5307-00-939-2229
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 7456 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2400 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 106 SHOULDERED AND STEPPED |
| SHOULDER DIAMETER | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.060 INCHES MINIMUM AND 0.065 INCHES MAXIMUM |
| NUT END SHANK LENGTH | 0.595 INCHES MINIMUM AND 0.610 INCHES MAXIMUM |
| DISTANCE ACROSS FLATS | 0.430 INCHES MINIMUM AND 0.439 INCHES MAXIMUM |
| STUD END SHANK DIAMETER | 0.374 INCHES NOMINAL |
| OVERALL LENGTH | 1.615 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNF STUD THREAD |
| NOMINAL THREAD SIZE | 0.250 INCHES NUT THREAD 0.312 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 28 NUT THREAD 24 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.325 INCHES NOMINAL NUT THREAD 0.625 INCHES NOMINAL STUD THREAD |
| III HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM |
| III DISTANCE FROM COTTER PIN HOLE CENTERLINE TO NUT END | 0.110 INCHES NOMINAL FIRST HOLE |
| III COTTER PIN HOLE DIAMETER | 0.070 INCHES NOMINAL FIRST HOLE |
Restrictions/Controls & Freight Information | NSN 5307-00-939-2229
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-00-939-2229
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | PQ | SX:PRATT & WHITNEY ENGINES AND COMPONENTS, TF-30 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
