NSN 5307-00-894-9596 10044404, 00-894-9596, 008949596
Product Details | SHOULDERED AND STEPPED STUD
5307-00-894-9596 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends, on which the nominal diameter of one threaded section is greater than the other. All or part of the unthreaded section is greater than the maximum major diameter of the largest threaded section. It may be thread relieved. Excludes items with tapered threads. See also STUD, LOCKED IN.
Part Alternates: 10044404, 5307-00-894-9596, 00-894-9596, 5307008949596, 008949596
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 SEP 1967 | 00-894-9596 | 15944 ( STUD, SHOULDERED AND STEPPED ) |

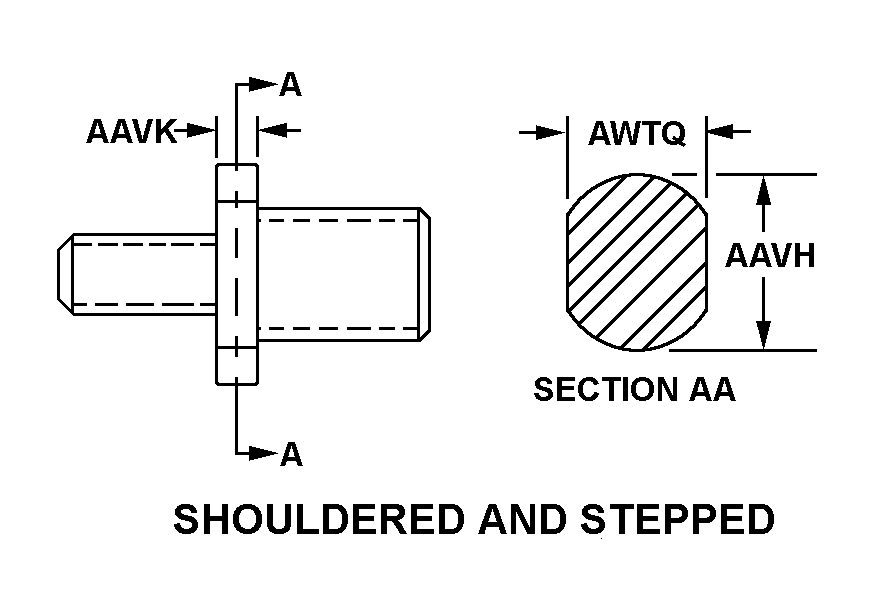

Drawings & Photos | NSN 5307-00-894-9596
Cross Reference | NSN 5307-00-894-9596
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10044404 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-00-894-9596
Technical Data | NSN 5307-00-894-9596
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 304 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763, COND A, FIN CD FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-STD-171, FINISH 5.4.1 MIL STD SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 106C SHOULDERED AND STEPPED |
| SHOULDER DIAMETER | 0.312 INCHES NOMINAL |
| SHOULDER LENGTH | 0.188 INCHES NOMINAL |
| DISTANCE ACROSS FLATS | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.190 INCHES NUT THREAD 0.250 INCHES STUD THREAD |
| THREAD CLASS | 2A NUT THREAD 2A STUD THREAD |
| THREAD QUANTITY PER INCH | 24 NUT THREAD 20 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.375 INCHES NOMINAL NUT THREAD 0.109 INCHES NOMINAL STUD THREAD |
Restrictions/Controls & Freight Information | NSN 5307-00-894-9596
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
