NSN 5307-00-835-6618 10QC31AP6, 00-835-6618, 008356618
Product Details | BALL STUD
5307-00-835-6618 A metal item with a spherical shaped head and a straight and/or tapered body, usually with a threaded shank.
Part Alternates: 10QC31AP6, 5307-00-835-6618, 00-835-6618, 5307008356618, 008356618
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-835-6618 | 17484 ( STUD, BALL ) |
Drawings & Photos | NSN 5307-00-835-6618
Cross Reference | NSN 5307-00-835-6618
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10QC31AP6 | 89619 | MACK TRUCKS, INC. DBA MACUNGIE OPERATIONS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-835-6618
Related Products | NSN 5307-00-835-6618
Technical Data | NSN 5307-00-835-6618
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

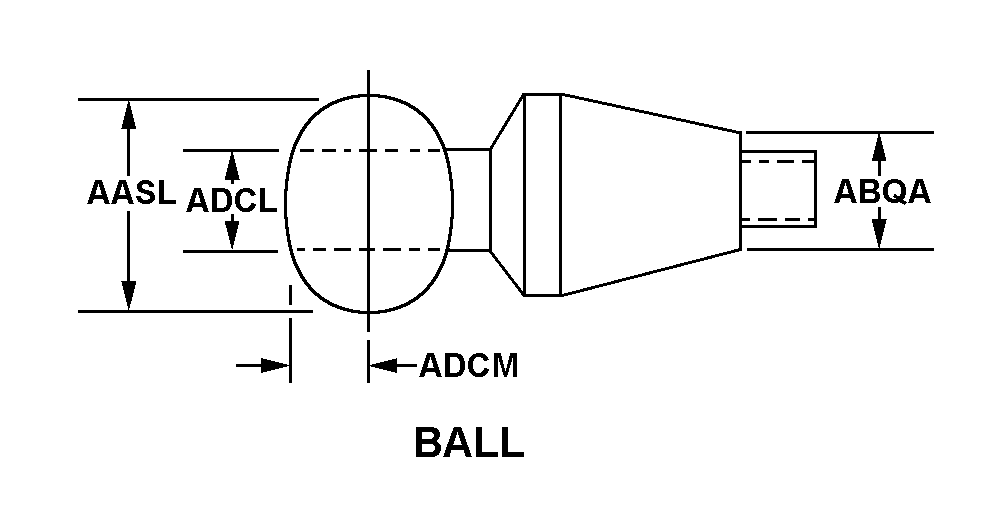

| STYLE DESIGNATOR | 3 BALL |
| HEAD DIAMETER | 1.748 INCHES NOMINAL |
| TAPER MINOR DIAMETER | 1.062 INCHES NOMINAL |
| BODY LENGTH | 1.188 INCHES NOMINAL |
| NECK DIAMETER | 0.875 INCHES NOMINAL |
| DISTANCE FROM SPHERICAL HEAD CENTERLINE TO HEAD END | 0.675 INCHES NOMINAL |
| OVERALL LENGTH | 4.469 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD CLASS | 3A |
| THREAD QUANTITY PER INCH | 14 |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.031 INCHES NOMINAL |
| III DISTANCE FROM COTTER PIN HOLE CENTERLINE TO NUT END | 0.969 INCHES NOMINAL FIRST HOLE |
| III COTTER PIN HOLE DIAMETER | 0.125 INCHES NOMINAL FIRST HOLE |
| MANUFACTURERS CODE | 89619 |
| DESIGN CONTROL REFERENCE | 10QC31AP6 |
Restrictions/Controls & Freight Information | NSN 5307-00-835-6618
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-00-835-6618
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
