NSN 5307-00-835-7048 6987041, 698704-1, 00-835-7048
Product Details | RECESSED STUD
5307-00-835-7048 A headless fastener not exceeding twelve inches (304.8 mm) in length, threaded externally on both ends with threads of the same nominal diameter. One end or both ends may have a point. The unthreaded section may have more than one diameter, none of which may be greater than the maximum major thread diameter. It may be thread relieved. Excludes items with taper threads.
Part Alternates: 6987041, 698704-1, 5307-00-835-7048, 00-835-7048, 5307008357048, 008357048
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 NOV 1966 | 00-835-7048 | 15945 ( STUD, RECESSED ) |

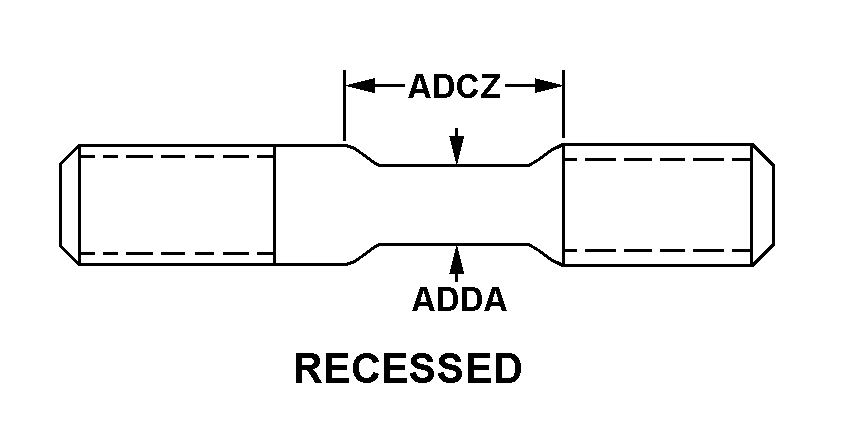

Drawings & Photos | NSN 5307-00-835-7048
Cross Reference | NSN 5307-00-835-7048
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 698704-1 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-835-7048
Related Products | NSN 5307-00-835-7048
Technical Data | NSN 5307-00-835-7048
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 50 RECESSED |
| LENGTH OF RECESSED PORTION OF SHANK | 1.641 INCHES NOMINAL |
| DIAMETER OF RECESSED PORTION OF SHANK | 0.281 INCHES NOMINAL |
| OVERALL LENGTH | 4.782 INCHES MINIMUM AND 4.802 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNS STUD THREAD |
| NOMINAL THREAD SIZE | 0.375 INCHES NUT THREAD 0.375 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 24 NUT THREAD 16 STUD THREAD |
| THREAD PITCH DIAMETERS | 0.3387 TO 0.3397 INCHES NUT THREAD 0.3417 TO 0.3427 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 1.595 INCHES NOMINAL NUT THREAD 0.849 INCHES MINIMUM AND 0.869 INCHES MAXIMUM STUD THREAD |
| MANUFACTURERS CODE | 99167 |
| DESIGN CONTROL REFERENCE | 698704-1 |
