NSN 5307-00-292-3245 P101499, P101-499 , P1164212224
Product Details | BALL STUD
5307-00-292-3245 A metal item with a spherical shaped head and a straight and/or tapered body, usually with a threaded shank.
Part Alternates: P101499, P101-499 , P1164212224, P116-421-22-24, P1164212224A, P116-421-22-24A, P116447724A, P116-447-7-24A, 5307-00-292-3245, 00-292-3245, 5307002923245, 002923245
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-292-3245 | 17484 ( STUD, BALL ) |

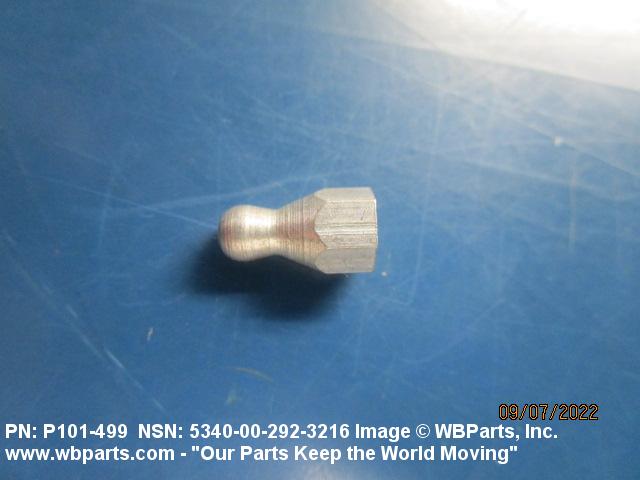

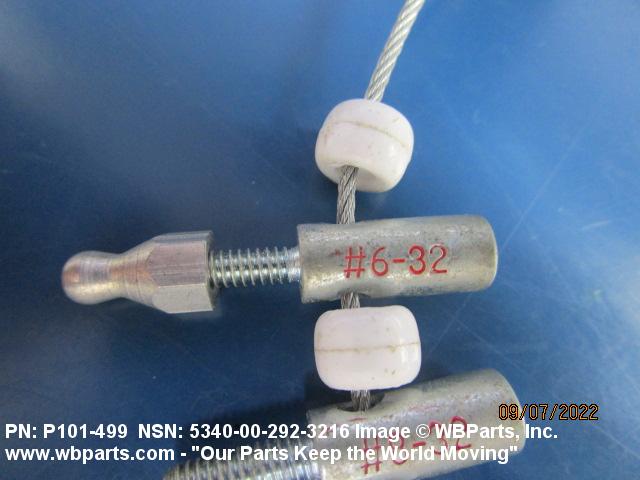

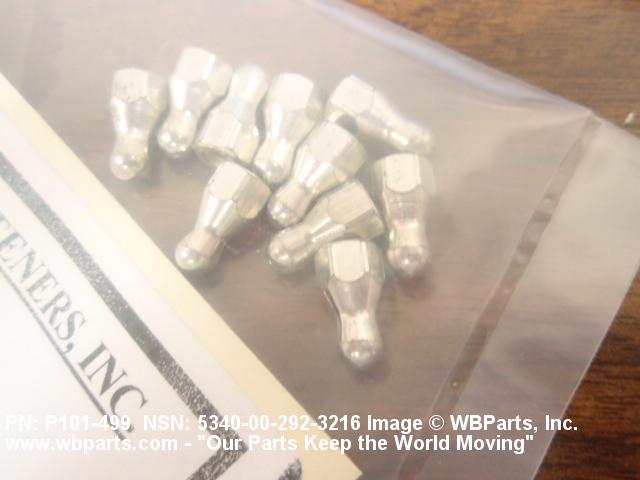

Drawings & Photos | NSN 5307-00-292-3245
Demand History | NSN 5307-00-292-3245
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-00-292-3245 | 2021-10-299 | 420 | Malaysia |
| P101499 | 2016-06-159 | 52 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-292-3245
Related Products | NSN 5307-00-292-3245
Technical Data | NSN 5307-00-292-3245
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OR STEEL COMP 1213 |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE 1113 ASSN STD 1ST MATERIAL RESPONSE OR SAE ASSN STD 2ND MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | 7 BALL |

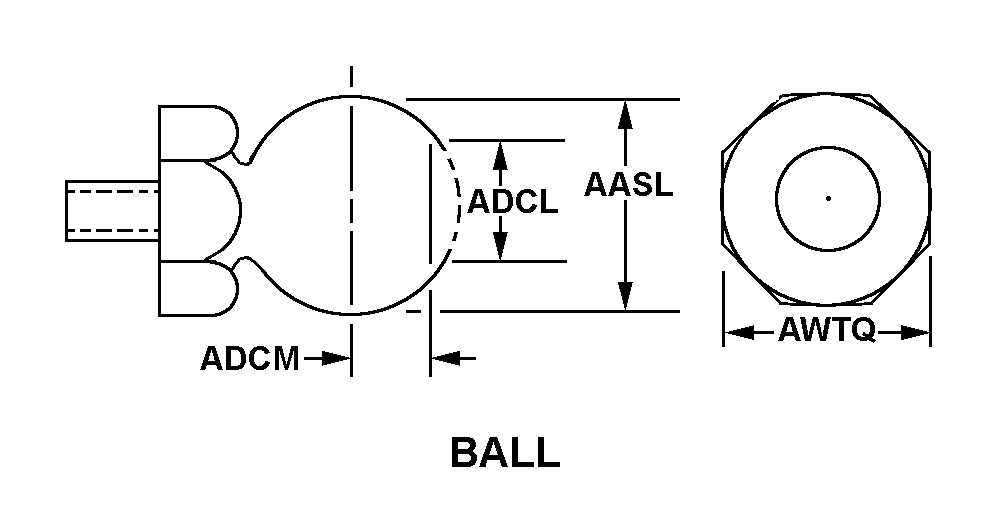

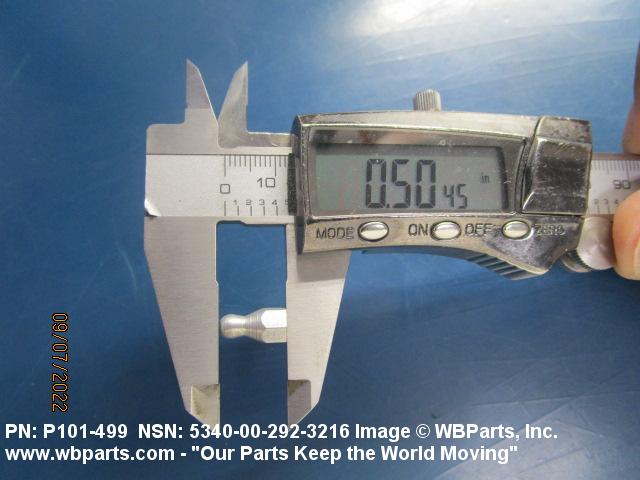

| HEAD DIAMETER | 0.187 INCHES NOMINAL |
| NECK DIAMETER | 0.156 INCHES NOMINAL |
| DISTANCE FROM SPHERICAL HEAD CENTERLINE TO HEAD END | 0.093 INCHES NOMINAL |

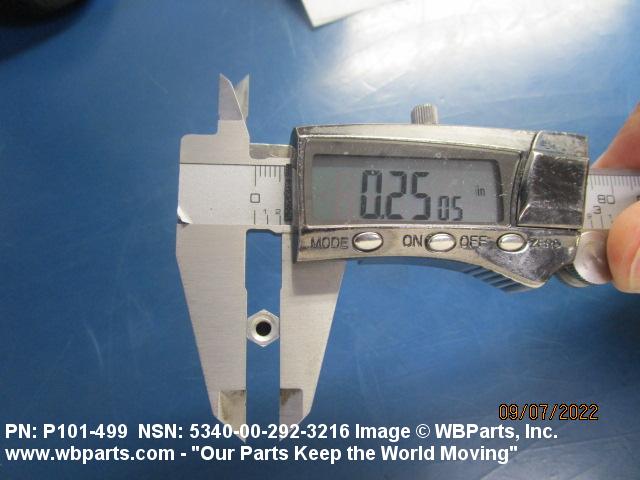

| DISTANCE ACROSS FLATS | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 1.108 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.687 INCHES NOMINAL |
