NSN 5307-00-598-3195 J158P013A, 00-598-3195, 005983195
Product Details | SHOULDERED AND STEPPED STUD
5307-00-598-3195 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends, on which the nominal diameter of one threaded section is greater than the other. All or part of the unthreaded section is greater than the maximum major diameter of the largest threaded section. It may be thread relieved. Excludes items with tapered threads. See also STUD, LOCKED IN.
Part Alternates: J158P013A, 5307-00-598-3195, 00-598-3195, 5307005983195, 005983195
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JAN 1975 | 00-598-3195 | 15944 ( STUD, SHOULDERED AND STEPPED ) |

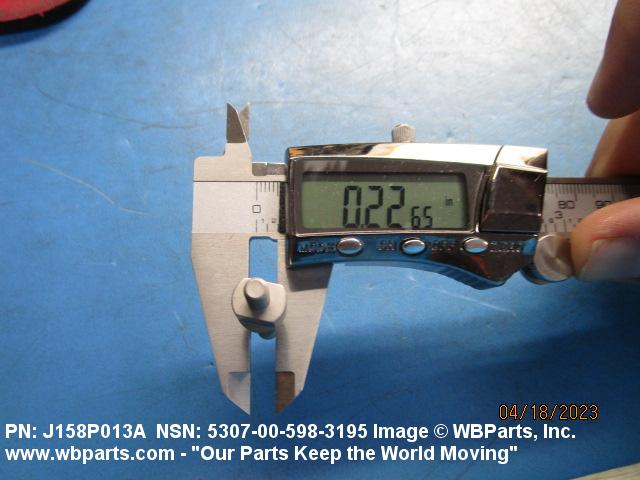

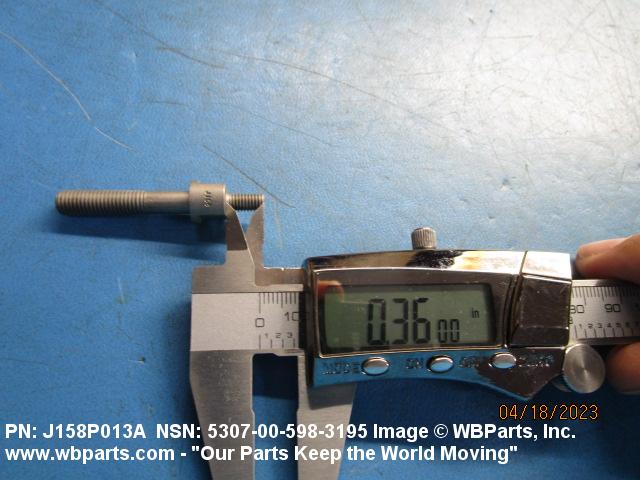

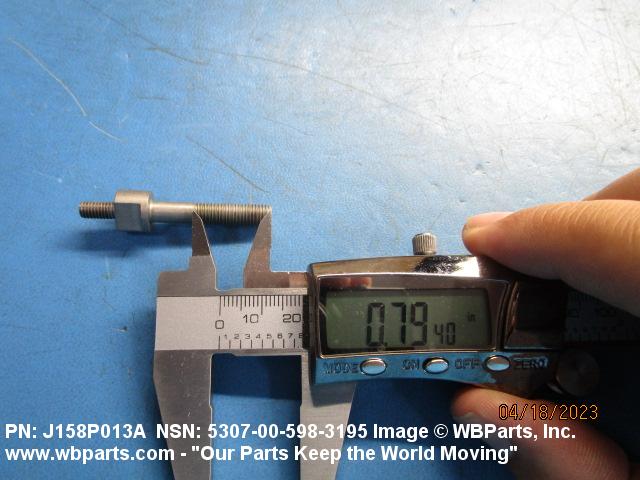

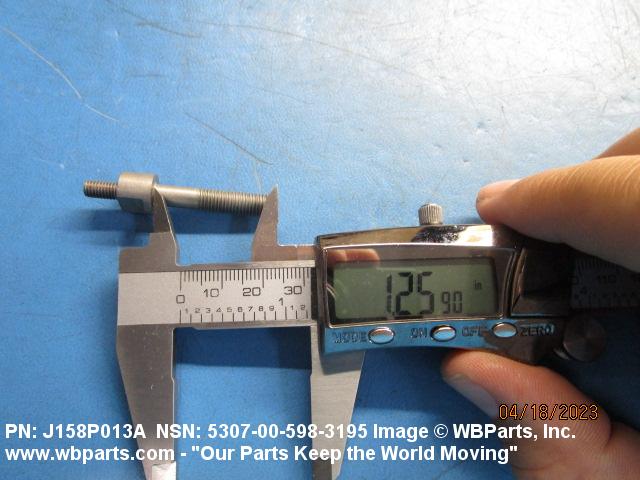

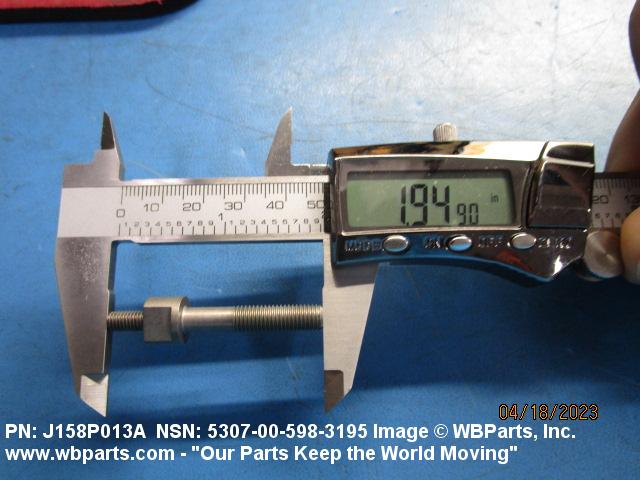

Drawings & Photos | NSN 5307-00-598-3195
Demand History | NSN 5307-00-598-3195
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| J158P013A | 2024-11-319 | 100 | DIBBS |
| J158P013A | 2024-08-231 | 38 | DIBBS |
| J158P013A | 2024-07-201 | 70 | Japan |
| 5307-00-598-3195 | 2024-07-197 | 4 | us |
| J158P013A | 2024-06-158 | 29 | DIBBS |
| J158P013A | 2023-06-170 | 64 | DIBBS |
| 5307-00-598-3195 | 2023-04-96 | 16 | United States |
| J158P013A | 2023-03-75 | 20 | DIBBS |
| J158P013A | 2022-09-261 | 12 | DIBBS |
| J158P013A | 2022-05-135 | 25 | DIBBS |
| J158P013A | 2022-02-48 | 32 | DIBBS |
| J158P013A | 2022-01-25 | 32 | DIBBS |
| 5307-00-598-3195 | 2018-10-302 | 154 | DIBBS |
| 5307-00-598-3195 | 2017-10-277 | 200 | DIBBS |
| 5307-00-598-3195 | 2015-07-210 | 354 | DIBBS |
| 5307-00-598-3195 | 2014-08-218 | 271 | DIBBS |
| 5307-00-598-3195 | 2014-03-76 | 141 | DIBBS |
Cross Reference | NSN 5307-00-598-3195
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J158P013A | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-00-598-3195
Technical Data | NSN 5307-00-598-3195
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 1.955 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNJF NUT THREAD UNJF STUD THREAD |
| NOMINAL THREAD SIZE | 0.190 INCHES NUT THREAD 0.250 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD 28 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
Restrictions/Controls & Freight Information | NSN 5307-00-598-3195
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-00-598-3195
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
