NSN 5307-00-436-7986 12L93519, 12L9351-9, 00-436-7986
Product Details | SHOULDERED AND STEPPED STUD
5307-00-436-7986 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends, on which the nominal diameter of one threaded section is greater than the other. All or part of the unthreaded section is greater than the maximum major diameter of the largest threaded section. It may be thread relieved. Excludes items with tapered threads. See also STUD, LOCKED IN.
Part Alternates: 12L93519, 12L9351-9, 5307-00-436-7986, 00-436-7986, 5307004367986, 004367986
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 AUG 1969 | 00-436-7986 | 15944 ( STUD, SHOULDERED AND STEPPED ) |

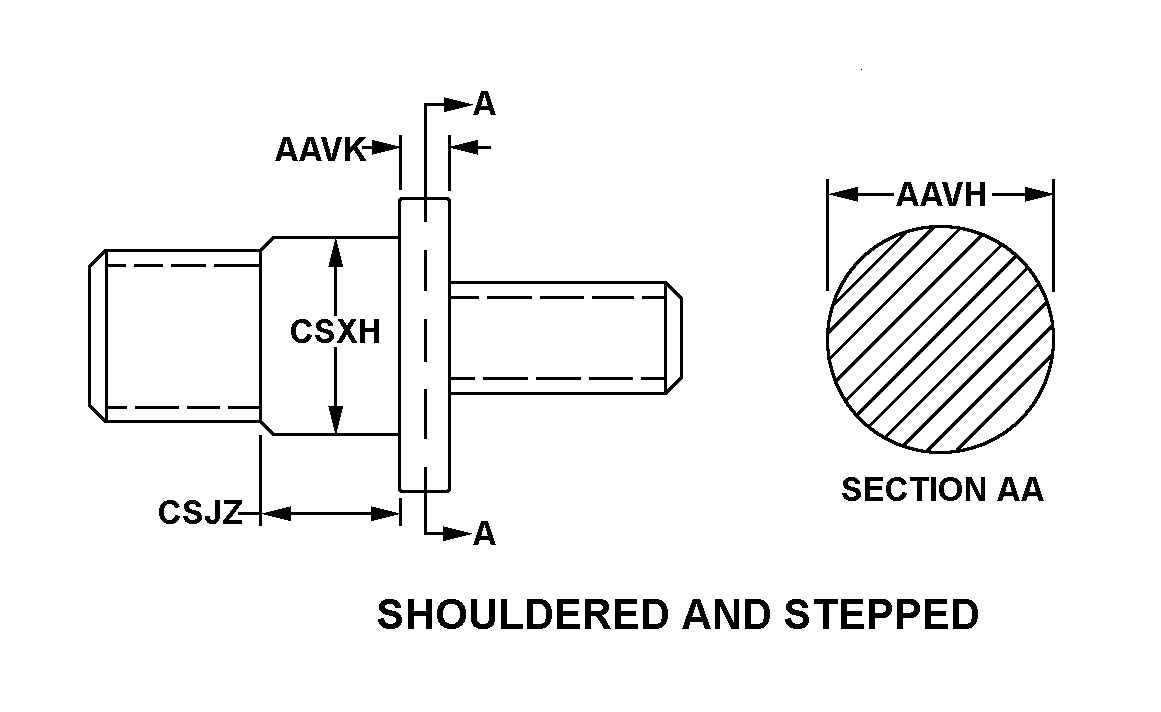

Drawings & Photos | NSN 5307-00-436-7986
Cross Reference | NSN 5307-00-436-7986
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12L9351-9 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
