NSN 5307-00-274-6933 1284686101, 1284686-101, 00-274-6933
Product Details | SHOULDERED AND STEPPED STUD
5307-00-274-6933 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends, on which the nominal diameter of one threaded section is greater than the other. All or part of the unthreaded section is greater than the maximum major diameter of the largest threaded section. It may be thread relieved. Excludes items with tapered threads. See also STUD, LOCKED IN.
Part Alternates: 1284686101, 1284686-101, 5307-00-274-6933, 00-274-6933, 5307002746933, 002746933
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 AUG 1973 | 00-274-6933 | 15944 ( STUD, SHOULDERED AND STEPPED ) |

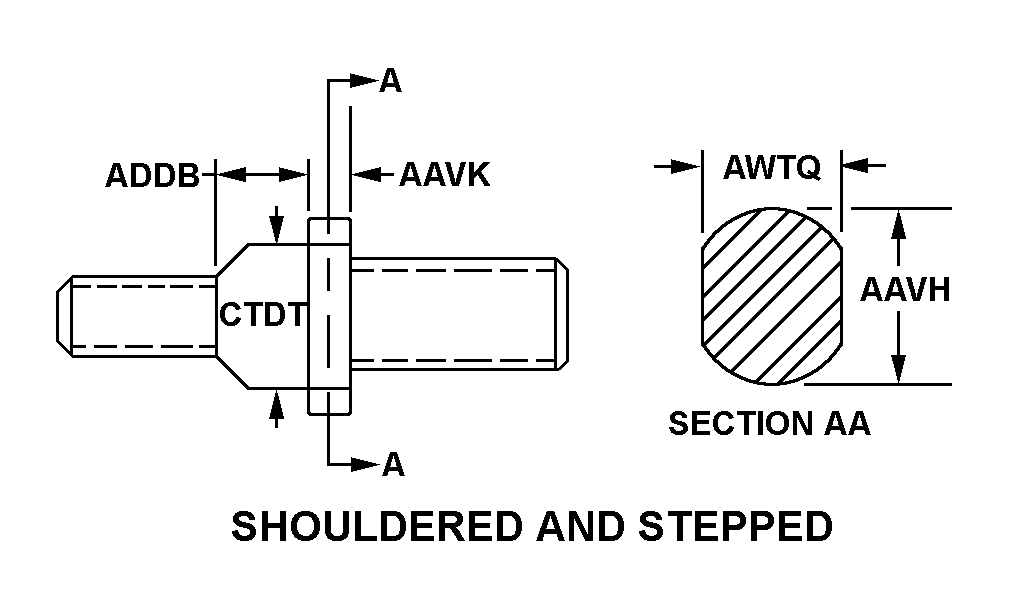

Drawings & Photos | NSN 5307-00-274-6933
Cross Reference | NSN 5307-00-274-6933
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1284686-101 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-00-274-6933
Technical Data | NSN 5307-00-274-6933
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E4340 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC ALL MATERIAL RESPONSES |
| STYLE DESIGNATOR | 106A SHOULDERED AND STEPPED |
| SHOULDER DIAMETER | 0.750 INCHES NOMINAL |
| SHOULDER LENGTH | 0.261 INCHES NOMINAL |
| NUT END SHANK LENGTH | 0.389 INCHES NOMINAL |
| DISTANCE ACROSS FLATS | 0.625 INCHES NOMINAL |
| NUT END SHANK DIAMETER | 0.240 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| OVERALL LENGTH | 2.680 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF STUD THREAD |
| NOMINAL THREAD SIZE | 0.375 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |
| THREAD QUANTITY PER INCH | 24 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.530 INCHES NOMINAL NUT THREAD 0.520 INCHES NOMINAL STUD THREAD |
| SPECIAL FEATURES | COTTER PIN HOLE CENTERLINE TO STUD END DISTANCE0.159,0.108 IN. MIN,0.113 IN. DIA |
| III DISTANCE FROM COTTER PIN HOLE CENTERLINE TO NUT END | 0.154 INCHES NOMINAL FIRST HOLE |
| III COTTER PIN HOLE DIAMETER | 0.080 INCHES MINIMUM FIRST HOLE 0.085 INCHES MAXIMUM SECOND HOLE |
| III SURFACE FINISH | 125.0 MICROINCHES OVERALL |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 1284686-101 |
