NSN 5307-00-151-7272 2653635, 00-151-7272, 001517272
Product Details | SHOULDERED AND STEPPED STUD
5307-00-151-7272 A headless fastener not exceeding 12 inches (304.8 mm) in length, threaded externally on both ends, on which the nominal diameter of one threaded section is greater than the other. All or part of the unthreaded section is greater than the maximum major diameter of the largest threaded section. It may be thread relieved. Excludes items with tapered threads. See also STUD, LOCKED IN.
Part Alternates: 2653635, 5307-00-151-7272, 00-151-7272, 5307001517272, 001517272
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 JAN 1973 | 00-151-7272 | 15944 ( STUD, SHOULDERED AND STEPPED ) |

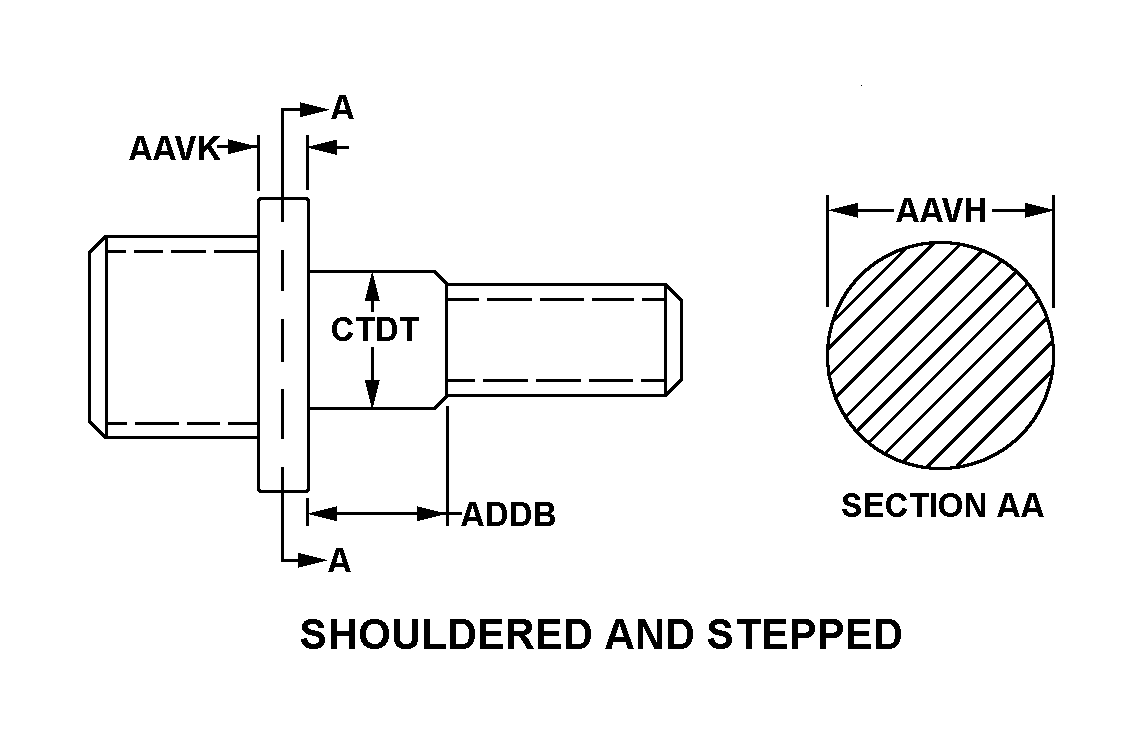

Drawings & Photos | NSN 5307-00-151-7272
Cross Reference | NSN 5307-00-151-7272
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2653635 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-00-151-7272
Technical Data | NSN 5307-00-151-7272
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A461 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 107B SHOULDERED AND STEPPED |
| SHOULDER DIAMETER | 0.380 INCHES NOMINAL |
| SHOULDER LENGTH | 0.050 INCHES NOMINAL |
| NUT END SHANK LENGTH | 0.388 INCHES NOMINAL |
| NUT END SHANK DIAMETER | 0.468 INCHES NOMINAL |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.438 INCHES NUT THREAD 0.375 INCHES STUD THREAD |
| THREAD CLASS | 2A NUT THREAD 2A STUD THREAD |
| THREAD QUANTITY PER INCH | 20 NUT THREAD 16 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.437 INCHES MINIMUM NUT THREAD 0.400 INCHES MINIMUM STUD THREAD |
