NSN 5307-00-047-4525 P07513, P075-13, 00-047-4525
Product Details | BONDED STUD

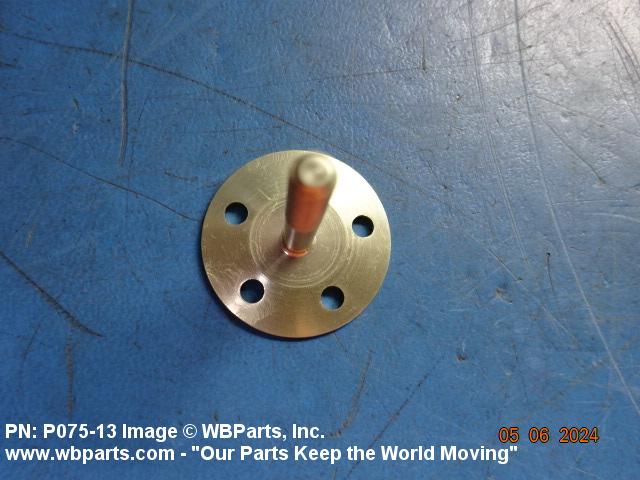

5307-00-047-4525 A headed fastener, externally threaded. The head is intended to be fastened by an adhesive. The head may also be fastened with rivets. The head is not designed to be turned with a wrench or inserted driver.
Part Alternates: P07513, P075-13, 5307-00-047-4525, 00-047-4525, 5307000474525, 000474525
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 NOV 1972 | 00-047-4525 | 37234 ( STUD, BONDED ) |

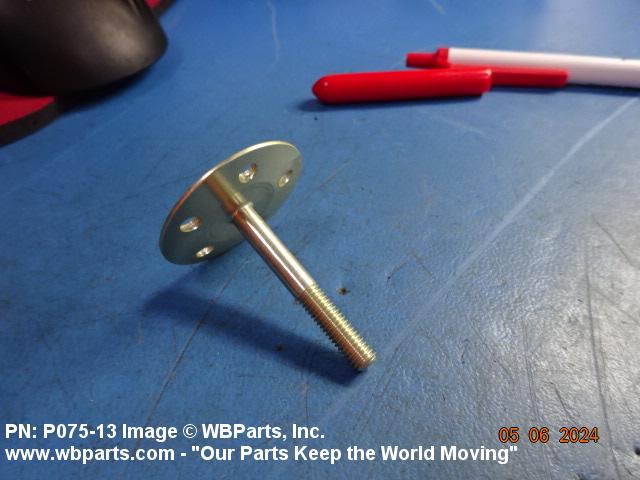

Drawings & Photos | NSN 5307-00-047-4525
Demand History | NSN 5307-00-047-4525
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-00-047-4525 | 2024-06-164 | 165 | United States |
| P07513 | 2024-05-122 | 23 | United States |
| P07513 | 2024-04-117 | 30 | US |
| 5307-00-047-4525 | 2023-12-341 | 20 | United States |
| P07513 | 2023-01-17 | 10 | United States |
| 5307-00-047-4525 | 2021-12-342 | 25 | US |
| 5307-00-047-4525 | 2021-12-342 | 50 | US |
| 5307-00-047-4525 | 2021-12-342 | 100 | US |
| P07513 | 2021-09-272 | 100 | us |
| 5307-00-047-4525 | 2020-07-209 | 100 | United States |
| 5307-00-047-4525 | 2019-06-162 | 4 | US |
| P07513 | 2018-05-129 | 865 | United States |
| 5307-00-047-4525 | 2017-12-342 | 25 | US |
| 5307-00-047-4525 | 2017-08-242 | 1 | DIBBS-RFPs |
| 5307-00-047-4525 | 2017-08-240 | 1359 | DIBBS |
| 5307-00-047-4525 | 2016-05-138 | 1046 | DIBBS |
Cross Reference | NSN 5307-00-047-4525
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| P075-13 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-047-4525
Related Products | NSN 5307-00-047-4525
Technical Data | NSN 5307-00-047-4525

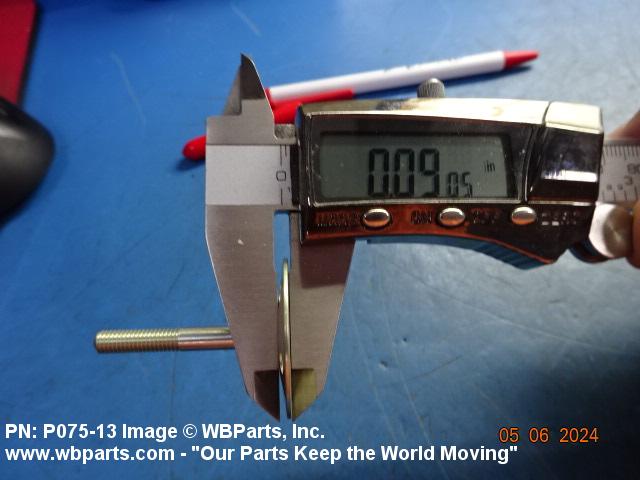

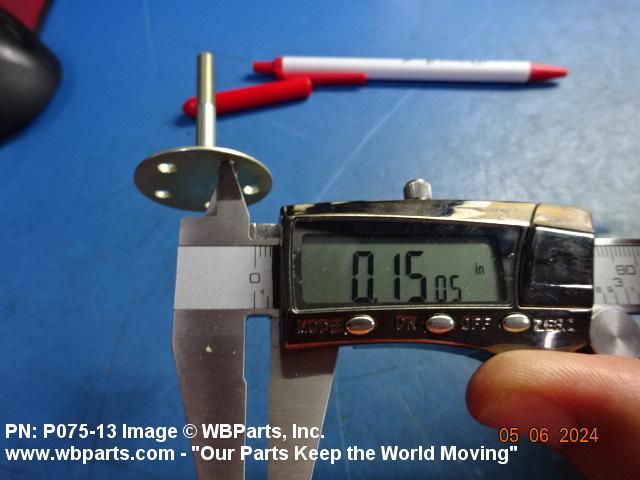

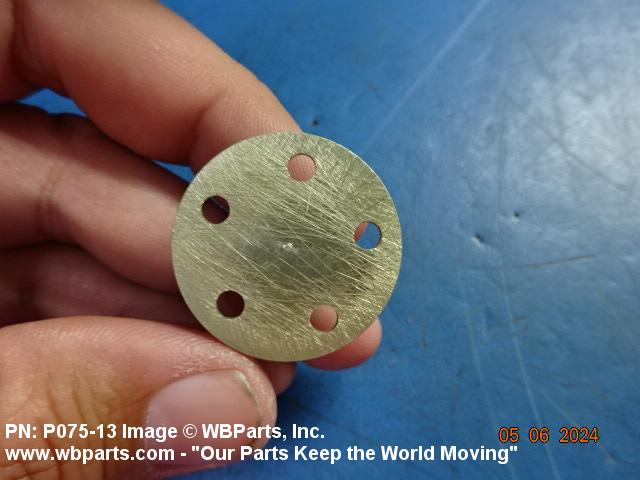

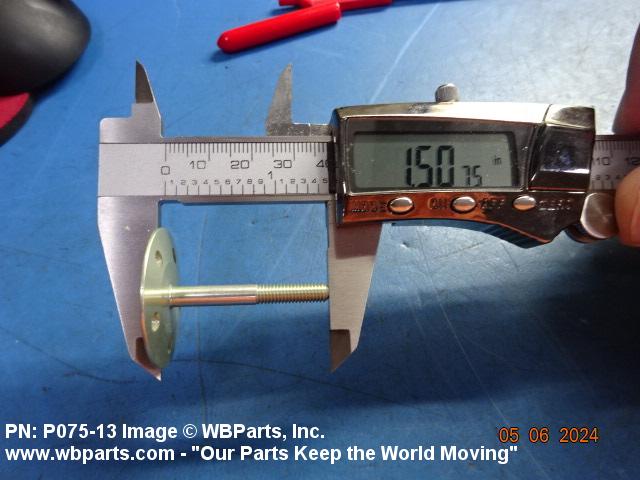

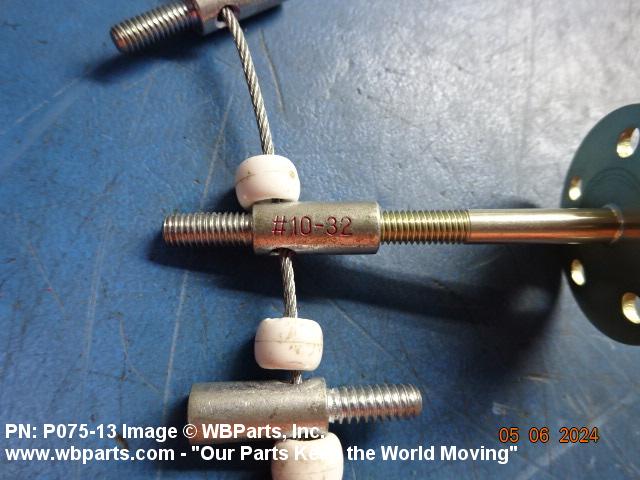

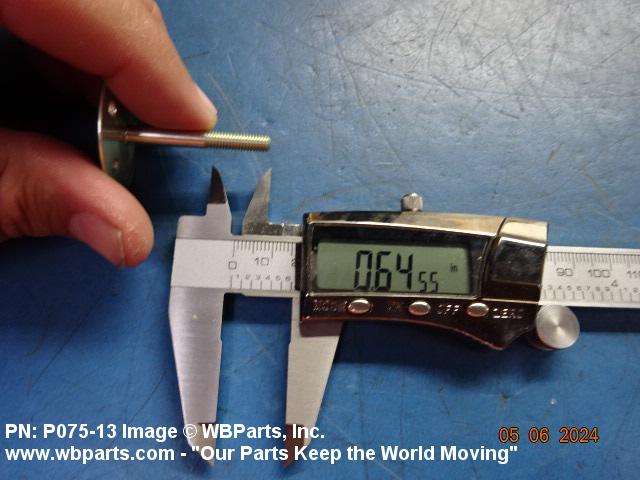

| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/6 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 TYPE 1 OR TYPE 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 151 FLUSH |
| HEAD DIAMETER | 1.240 INCHES MINIMUM AND 1.260 INCHES MAXIMUM |
| HEAD HEIGHT | 0.070 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| MOUNTING HOLE DIAMETER | 0.146 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| MOUNTING HOLE QUANTITY | 5 |
| OVERALL LENGTH | 1.490 INCHES MINIMUM AND 1.510 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 32 |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.610 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5307-00-047-4525
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013280 | ALUM BOLTS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
