NSN 5306-01-353-2740 ES75418, ES754-18 , 559001
Product Details | INTERNALLY RELIEVED BODY BOLT
5306-01-353-2740 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: ES75418, ES754-18 , 559001, 559-001, 5306-01-353-2740, 01-353-2740, 5306013532740, 013532740
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 FEB 1992 | 01-353-2740 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-01-353-2740
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-353-2740
Related Products | NSN 5306-01-353-2740
Technical Data | NSN 5306-01-353-2740
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.270 INCHES MINIMUM AND 0.320 INCHES MAXIMUM |
| FASTENER LENGTH | 0.320 INCHES NOMINAL |

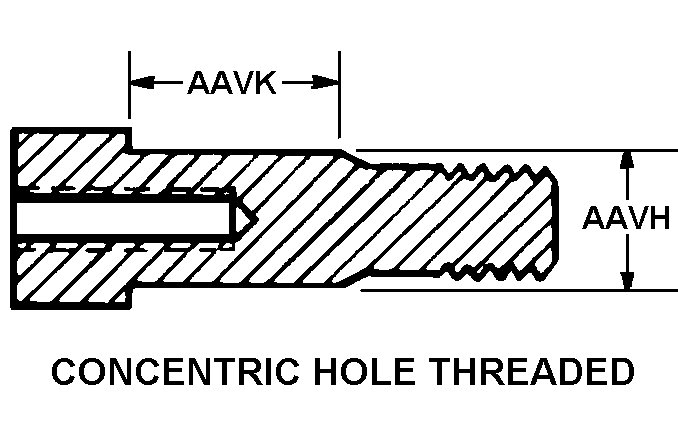

| STYLE DESIGNATOR | B43A CONCENTRIC HOLE THREADED |
| SHOULDER DIAMETER | 0.145 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.110 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| THREAD SERIES | UNC CONCENTRIC HOLE |
| NOMINAL THREAD SIZE | 0.112 INCHES CONCENTRIC HOLE |
| THREADS PER INCH | 2B CONCENTRIC HOLE |
| INTERNAL THREAD DIRECTION | RIGHT-HAND CONCENTRIC HOLE |
| INTERNAL THREAD LENGTH | 0.125 INCHES MINIMUM CONCENTRIC HOLE |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.060 INCHES MINIMUM AND 0.080 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.180 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
