NSN 5306-01-162-0017 12315741, 01-162-0017, 011620017
Product Details | INTERNALLY RELIEVED BODY BOLT
5306-01-162-0017 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: 12315741, 5306-01-162-0017, 01-162-0017, 5306011620017, 011620017
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 SEP 1983 | 01-162-0017 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |

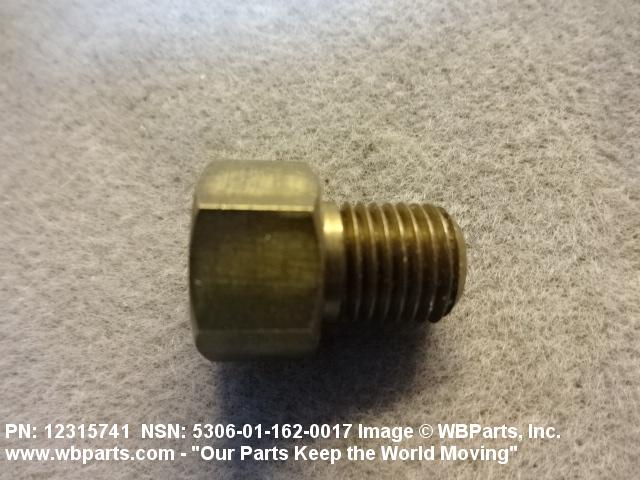

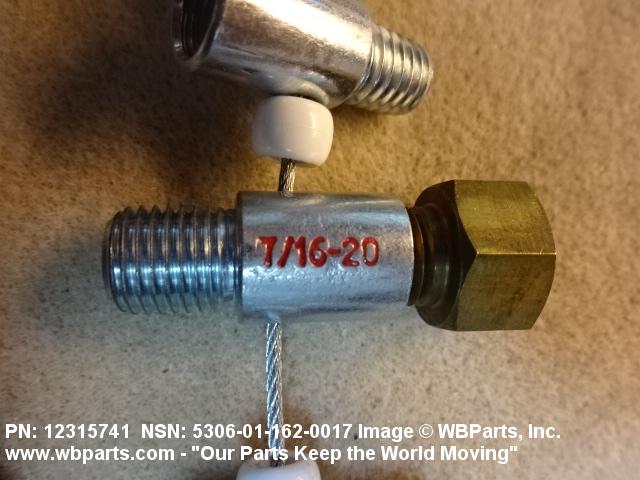

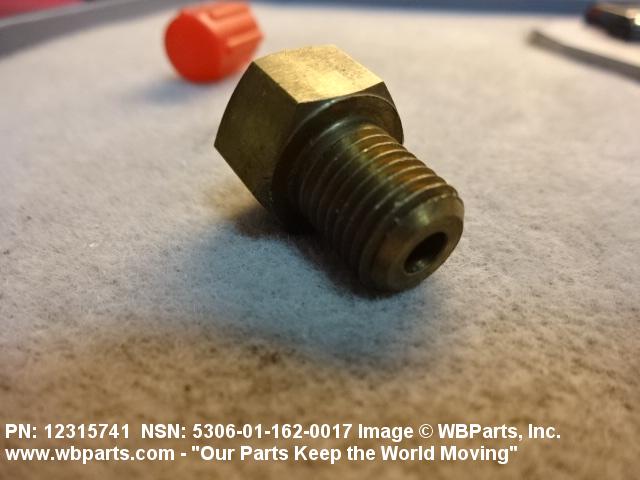

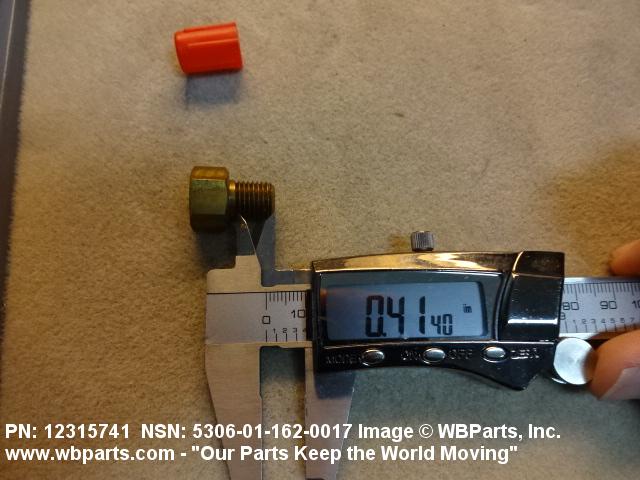

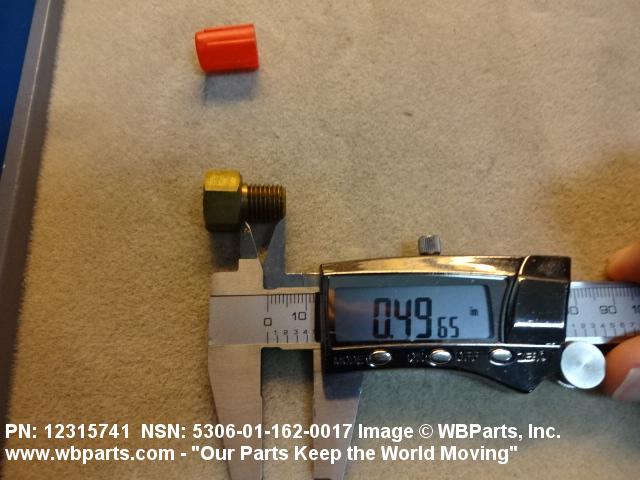

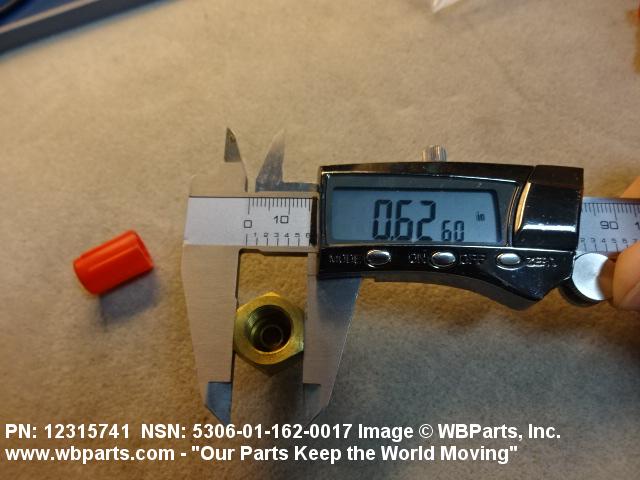

Drawings & Photos | NSN 5306-01-162-0017
Demand History | NSN 5306-01-162-0017
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-162-0017 | 2019-04-94 | 10 | United States |
Cross Reference | NSN 5306-01-162-0017
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12315741 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-162-0017
Related Products | NSN 5306-01-162-0017
Technical Data | NSN 5306-01-162-0017
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.438 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.395 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| FASTENER LENGTH | 0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1022 OR STEEL COMP 1025 OR STEEL COMP 1212 OR STEEL COMP 1213 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A108 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | COPPER OR TIN OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-14550 CL 2 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-T-10727 TY 1 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | B47A COUNTERBORE THREADED |
| CONCENTRIC HOLE DIAMETER | 0.174 INCHES MINIMUM AND 0.180 INCHES MAXIMUM |
| THREAD SERIES | UNS COUNTERBORE |
| NOMINAL THREAD SIZE | 0.438 INCHES COUNTERBORE |
| THREADS PER INCH | 24 COUNTERBORE |
| INTERNAL THREAD CLASS | 2B COUNTERBORE |
| INTERNAL THREAD DIRECTION | RIGHT-HAND COUNTERBORE |
| INTERNAL THREAD LENGTH | 0.250 INCHES MINIMUM COUNTERBORE |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.370 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.615 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| SPECIAL FEATURES | PAC SFTT IS FOR STL MATL ONLY |
Restrictions/Controls & Freight Information | NSN 5306-01-162-0017
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-162-0017
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
