NSN 5306-01-090-4853 3356B54H01, 01-090-4853, 010904853

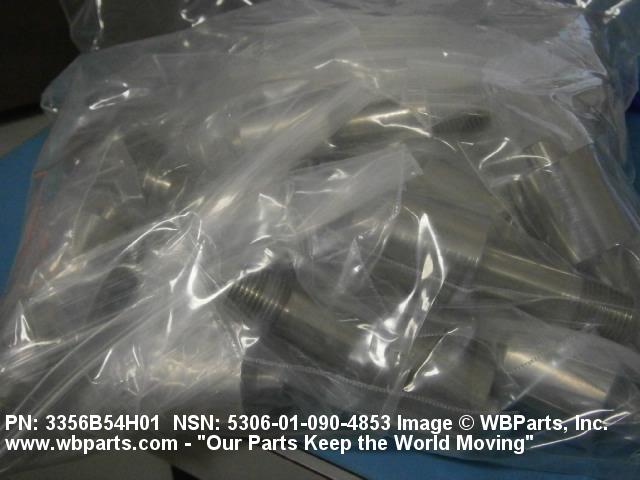

Product Details | INTERNALLY RELIEVED BODY BOLT
5306-01-090-4853 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: 3356B54H01, 5306-01-090-4853, 01-090-4853, 5306010904853, 010904853
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 FEB 1980 | 01-090-4853 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-01-090-4853
Demand History | NSN 5306-01-090-4853
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-090-4853 | 2024-06-156 | 90 | US |
| 5306-01-090-4853 | 2023-01-27 | 61 | GE |
| 5306-01-090-4853 | 2022-12-361 | 28 | DIBBS |
| 5306-01-090-4853 | 2022-12-349 | 17 | DIBBS |
| 5306-01-090-4853 | 2022-09-261 | 28 | DIBBS |
| 5306-01-090-4853 | 2020-11-308 | 200 | US |
| 5306-01-090-4853 | 2020-07-184 | 440 | US |
| 5306-01-090-4853 | 2020-06-178 | 1280 | US |
| 5306-01-090-4853 | 2020-06-167 | 500 | US |
| 5306-01-090-4853 | 2019-11-324 | 6 | United States |
| 5306-01-090-4853 | 2019-02-44 | 300 | US |
| 5306-01-090-4853 | 2019-02-44 | 228 | US |
| 5306-01-090-4853 | 2019-02-44 | 288 | US |
| 5306-01-090-4853 | 2018-10-278 | 288 | US |
| 5306-01-090-4853 | 2018-10-277 | 288 | US |
| 5306-01-090-4853 | 2018-10-275 | 288 | US |
| 5306-01-090-4853 | 2016-12-355 | 572 | US |
| 5306-01-090-4853 | 2016-12-348 | 576 | US |
| 5306-01-090-4853 | 2016-06-164 | 32 | DIBBS |
| 5306-01-090-4853 | 2013-10-294 | 8 | US |
| 5306-01-090-4853 | 2011-11-334 | 24 | United States |
| 5306-01-090-4853 | 2009-11-323 | 4 | US |
| 5306-01-090-4853 | 2009-03-84 | 20 | United States |
| 5306-01-090-4853 | 2009-03-84 | 20 | United States |
| 5306-01-090-4853 | 2009-03-84 | 20 | United States |
Cross Reference | NSN 5306-01-090-4853
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3356B54H01 | 18323 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ELECTRONIC SYSTEMS |
