NSN 5306-01-298-6474 AS359, AS490, SS27576638

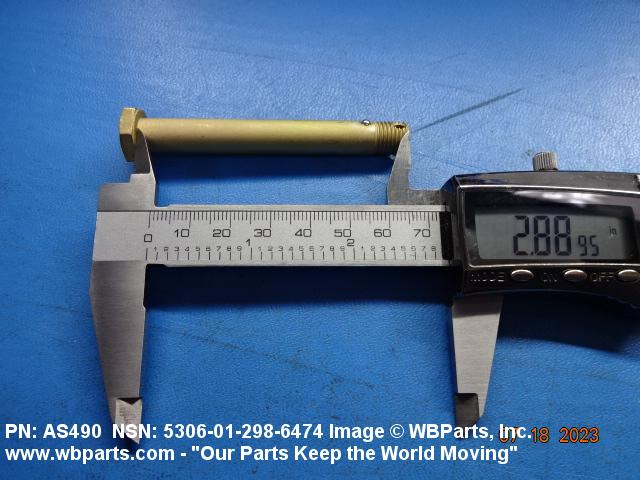

Product Details | INTERNALLY RELIEVED BODY BOLT

5306-01-298-6474 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.

Part Alternates: AS359, AS490, SS27576638, SS27576-6-38 , 124045, 70400-06802-101, 5306-01-298-6474, 01-298-6474, 5306012986474, 7040006802101, 012986474

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	19 APR 1989	01-298-6474	06676 ( BOLT, INTERNALLY RELIEVED BODY )

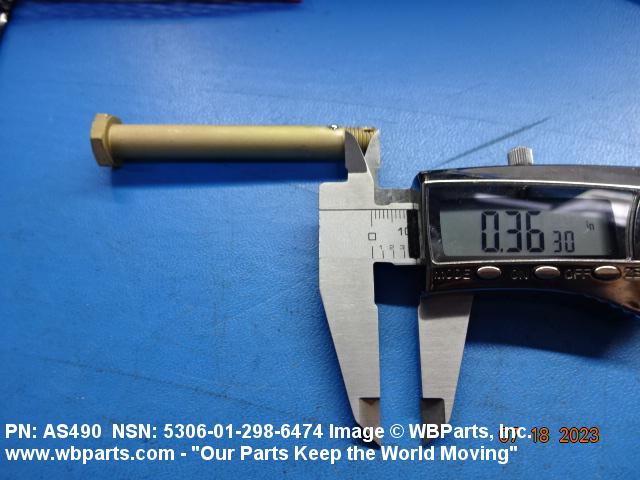

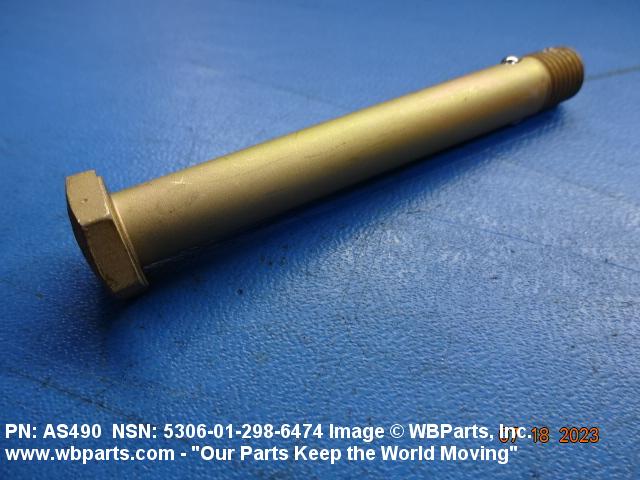

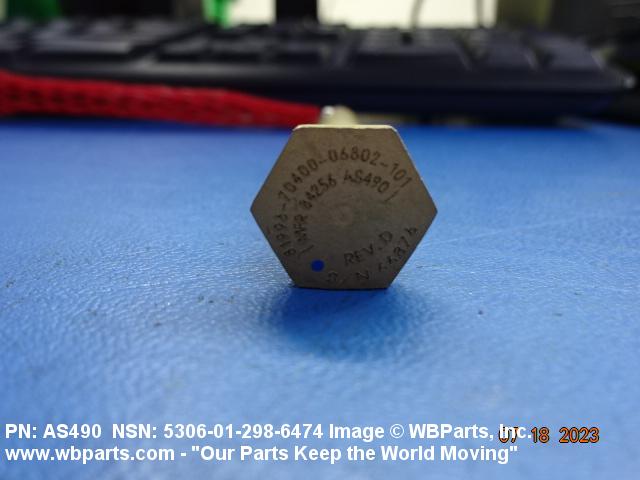

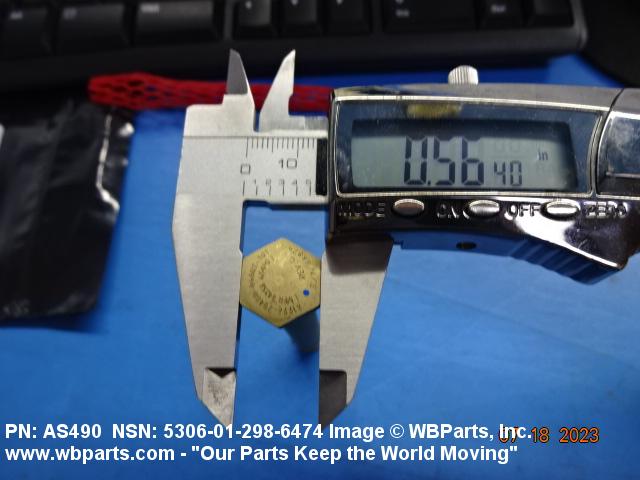

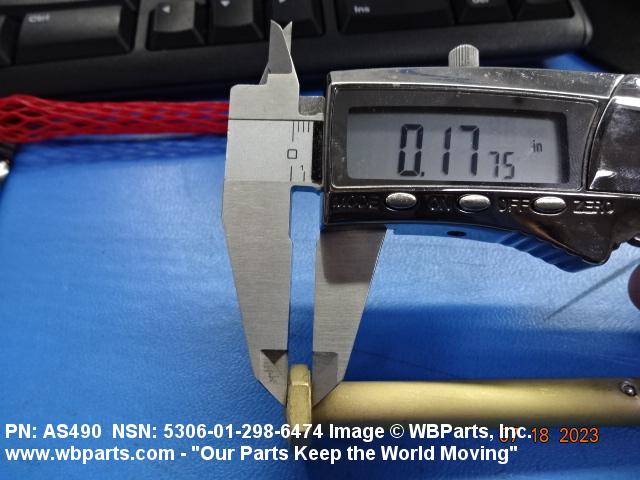

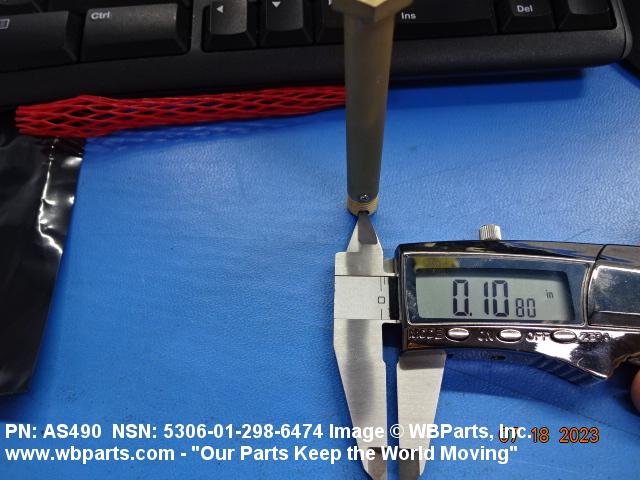

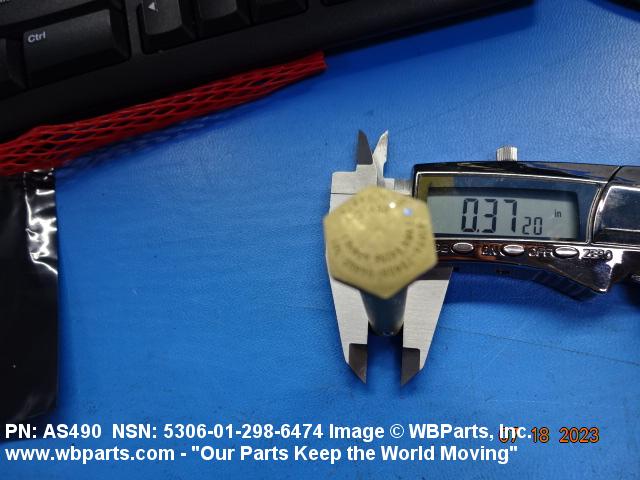

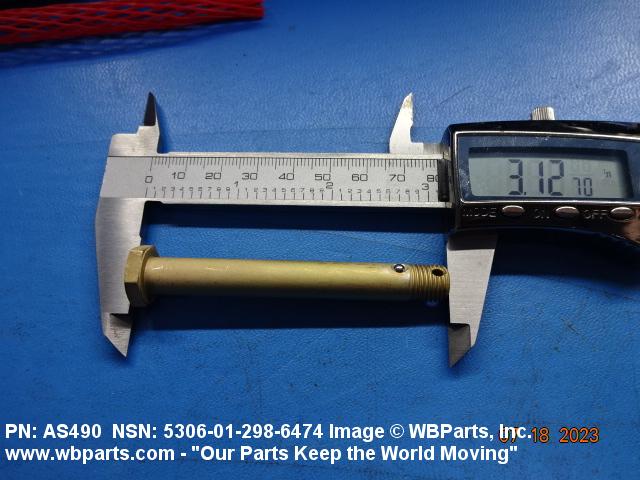

Drawings & Photos | NSN 5306-01-298-6474

Part Number	Request Date	QTY	Origin
70400-06802-101	2023-11-334	576	DIBBS
AS490	2023-11-334	576	DIBBS
5306-01-298-6474	2023-06-156	1	United States
70400-06802-101	2021-07-199	621	DIBBS
AS490	2021-07-199	621	DIBBS
7040-00-680-2101	2021-07-183	1	United States
70400-06802-101	2021-06-168	7	DIBBS
70400-06802-101	2021-06-168	10	DIBBS
70400-06802-101	2021-06-168	20	DIBBS
AS490	2021-06-168	7	DIBBS
