NSN 5306-01-232-8626 75B2990532003, 75B299053-2003, 01-232-8626
Product Details | EYE BOLT
5306-01-232-8626 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: 75B2990532003, 75B299053-2003, 5306-01-232-8626, 01-232-8626, 5306012328626, 012328626
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 MAY 1986 | 01-232-8626 | 01853 ( BOLT, EYE ) |

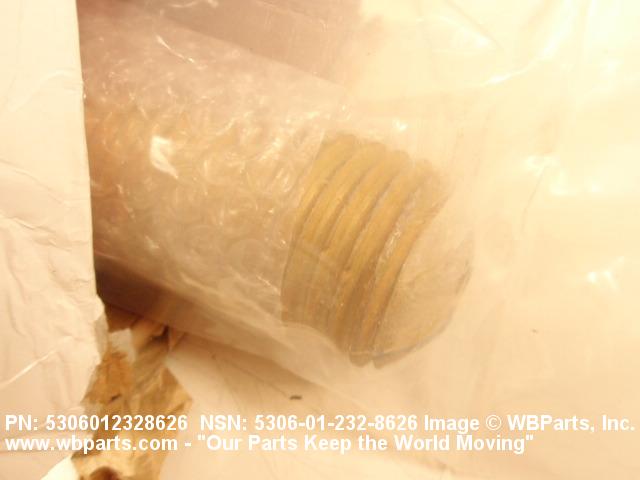

Drawings & Photos | NSN 5306-01-232-8626
Demand History | NSN 5306-01-232-8626
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-232-8626 | 2024-06-171 | 2 | DIBBS |
| 5306-01-232-8626 | 2024-05-135 | 4 | DIBBS |
| 5306-01-232-8626 | 2023-05-136 | 1 | DIBBS |
| 5306-01-232-8626 | 2021-09-256 | 2 | DIBBS |
| 5306-01-232-8626 | 2020-11-327 | 1 | DIBBS |
| 5306-01-232-8626 | 2010-07-201 | 25 | DIBBS |
| 5306-01-232-8626 | 2010-05-126 | 25 | DIBBS |
| 5306-01-232-8626 | 2009-10-301 | 40 | DIBBS |
| 5306-01-232-8626 | 2009-09-244 | 40 | DIBBS |
| 5306-01-232-8626 | 2009-08-223 | 27 | DIBBS |
| 5306-01-232-8626 | 2009-07-183 | 27 | DIBBS |
| 5306-01-232-8626 | 2009-06-174 | 5 | DIBBS |
| 5306-01-232-8626 | 2009-05-151 | 22 | DIBBS |
| 5306-01-232-8626 | 2009-05-138 | 8 | United States |
| 5306-01-232-8626 | 2009-05-133 | 8 | DIBBS |
| 5306-01-232-8626 | 2009-04-105 | 6 | DIBBS |
| 5306-01-232-8626 | 2009-02-56 | 8 | DIBBS |
| 5306-01-232-8626 | 2009-02-41 | 8 | DIBBS |
| 5306-01-232-8626 | 2008-12-364 | 1 | DIBBS |
| 5306-01-232-8626 | 2008-12-349 | 1 | DIBBS |
| 5306-01-232-8626 | 2008-12-339 | 1 | DIBBS |
| 5306-01-232-8626 | 2008-11-324 | 1 | United States |
Cross Reference | NSN 5306-01-232-8626
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 75B299053-2003 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-232-8626
Related Products | NSN 5306-01-232-8626
Technical Data | NSN 5306-01-232-8626
| Characteristic | Specifications |
|---|---|
| EYE STOCK DIAMETER | 2.000 INCHES NOMINAL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NOMINAL THREAD DIAMETER | 2.000 INCHES |
| SHANK LENGTH | 11.750 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| SURFACE TREATMENT | CADMIUM OVERALL |
| MATERIAL | STEEL OVERALL |
| OVERALL LENGTH | 25.500 INCHES MINIMUM AND 26.500 INCHES MAXIMUM |
| THREAD LENGTH | 10.000 INCHES NOMINAL |
| THREAD CLASS | 2A |
| EYE WIDTH | 2.600 INCHES NOMINAL |
| EYE LENGTH | 5.300 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 4-1/2 |
| THREAD DIRECTION | LEFT-HAND |
Restrictions/Controls & Freight Information | NSN 5306-01-232-8626
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-232-8626
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
