NSN 5306-01-198-0245 MS519375, MS51937-5, 01-198-0245
Product Details | EYE BOLT
5306-01-198-0245 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: MS519375, MS51937-5, 5306-01-198-0245, 01-198-0245, 5306011980245, 011980245
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 JAN 1985 | 01-198-0245 | 01853 ( BOLT, EYE ) |

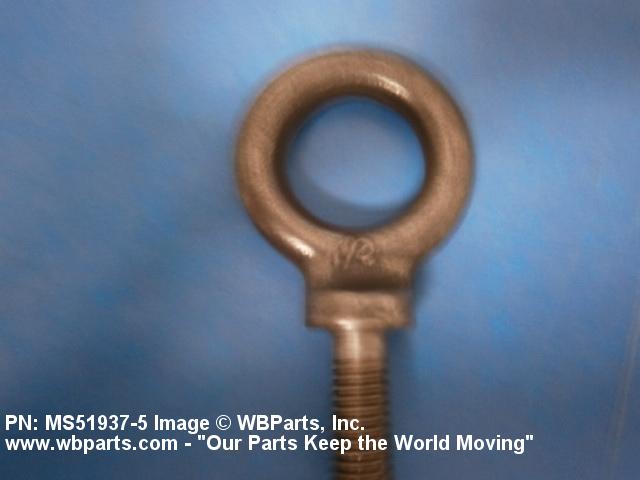

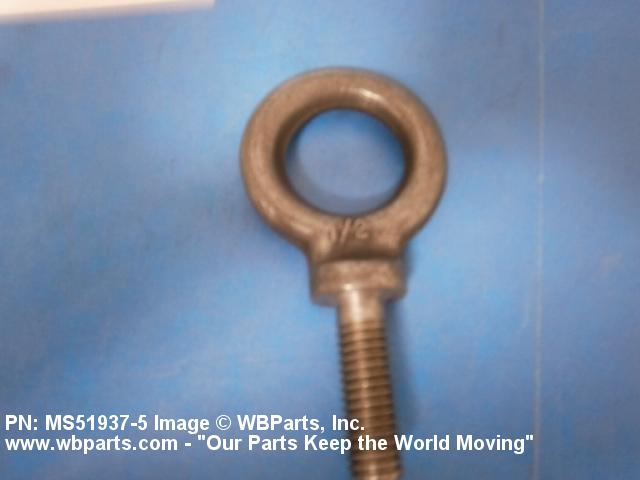

Drawings & Photos | NSN 5306-01-198-0245
Demand History | NSN 5306-01-198-0245
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS519375 | 2021-08-236 | 500 | United States |
| MS519375 | 2020-05-149 | 1000 | United States |
| MS519375 | 2018-12-361 | 374 | Israel |
| MS51937-5 | 2018-11-310 | 198 | Israel |
| MS519375 | 2017-10-276 | 36 | US |
| MS519375 | 2013-10-287 | 16 | US |
| MS519375 | 2013-02-49 | 170 | Israel |
| MS519375 | 2012-03-88 | 8 | Israel |
| MS519375 | 2012-03-73 | 24 | Israel |
| MS519375 | 2012-01-19 | 16 | Israel |
| MS519375 | 2010-02-35 | 18 | US |
Cross Reference | NSN 5306-01-198-0245
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51937-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-198-0245
Related Products | NSN 5306-01-198-0245
Technical Data | NSN 5306-01-198-0245
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.120 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-45908 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-C-320,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| EYE INSIDE DIAMETER | 1.120 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| SHOULDER THICKNESS | 0.190 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| SHANK LENGTH | 1.500 INCHES MINIMUM AND 1.620 INCHES MAXIMUM |
| EYE STOCK DIAMETER | 0.440 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| SHOULDER DIAMETER | 0.880 INCHES MINIMUM AND 0.940 INCHES MAXIMUM |
| OVERALL LENGTH | 3.810 INCHES MINIMUM AND 4.190 INCHES MAXIMUM |
| DISTANCE FROM CENTER OF EYE TO SHANK END | 2.810 INCHES MINIMUM AND 3.060 INCHES MAXIMUM |
| EYE OUTSIDE WIDTH | 2.120 INCHES NOMINAL |
| DEPARTURE FROM CITED DOCUMENT | MATERIAL WILL BE IN ACCORDANCE WITH SHIPS PARTS CONTROL CENTER ACTIVITY HX QUALITY CONTROL,MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZW |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS51937-5 |
Restrictions/Controls & Freight Information | NSN 5306-01-198-0245
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | C | The item has critical features such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | HX | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-198-0245
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X3 | Nuclear Reactor Plant (NRP) material under the technical cognizance of the NAVSEA 08 special designed, manufactured and/or treated for use in a NRP or controls thereof. This category includes all other NRP items which are not coded X2 or X4. |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
