NSN 5306-01-130-5766 ZJ085808, ZJ-085808, 12310943

Product Details | INTERNALLY RELIEVED BODY BOLT

5306-01-130-5766 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.

Part Alternates: ZJ085808, ZJ-085808, 12310943, 5306-01-130-5766, 01-130-5766, 5306011305766, 011305766

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	28 APR 1982	01-130-5766	06676 ( BOLT, INTERNALLY RELIEVED BODY )

Drawings & Photos | NSN 5306-01-130-5766

Part Number	Request Date	QTY	Origin
5306-01-130-5766	2015-11-314	104	DIBBS
5306-01-130-5766	2015-10-302	104	DIBBS
5306-01-130-5766	2015-07-182	104	DIBBS

Cross Reference | NSN 5306-01-130-5766

Part Number	Cage Code	Manufacturer
12310943	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
ZJ-085808	96266	ALBION INDUSTRIES, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-01-130-5766

Compare

Related Products | NSN 5306-01-130-5766

5306-01-130-5870, 5306-01-130-5994, 5306-01-130-6095, 5306-01-130-6097, 5306-01-130-6499

Technical Data | NSN 5306-01-130-5766

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.500 INCHES NOMINAL
FASTENER LENGTH	3.687 INCHES MAXIMUM
MINIMUM YIELD STRENGTH	90000 POUNDS PER SQUARE INCH

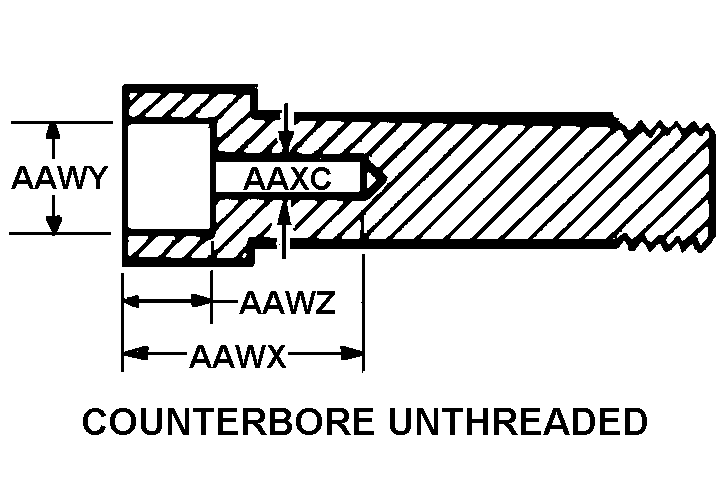

STYLE DESIGNATOR	B46 COUNTERBORE UNTHREADED
