Product Details | INTERNALLY RELIEVED BODY BOLT
5306-01-107-5741 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: 363124, 36-3124, 5306-01-107-5741, 01-107-5741, 5306011075741, 011075741
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 FEB 1981 | 01-107-5741 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-01-107-5741
Cross Reference | NSN 5306-01-107-5741
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 36-3124 | 82918 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-107-5741
Technical Data | NSN 5306-01-107-5741
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.550 INCHES NOMINAL |
| FASTENER LENGTH | 5.750 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6428 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMATE ZINC OVERALL |

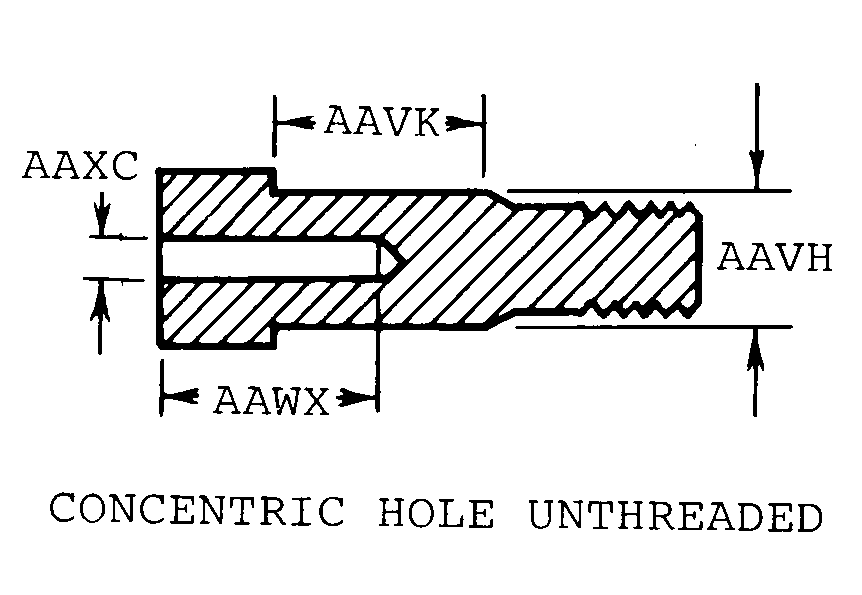

| STYLE DESIGNATOR | B43 CONCENTRIC HOLE UNTHREADED |
| SHOULDER DIAMETER | 1.059 INCHES MINIMUM AND 1.060 INCHES MAXIMUM |
| SHOULDER LENGTH | 4.770 INCHES NOMINAL |
| CONCENTRIC HOLE DEPTH | 4.770 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.480 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.180 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 1.440 INCHES NOMINAL |
| MANUFACTURERS CODE | 82918 |
| DESIGN CONTROL REFERENCE | 36-3124 |
