NSN 5306-01-107-3333 12293013, 01-107-3333, 011073333
Product Details | INTERNALLY RELIEVED BODY BOLT
5306-01-107-3333 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: 12293013, 5306-01-107-3333, 01-107-3333, 5306011073333, 011073333
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 FEB 1981 | 01-107-3333 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-01-107-3333
Cross Reference | NSN 5306-01-107-3333
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12293013 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-107-3333
Related Products | NSN 5306-01-107-3333
Technical Data | NSN 5306-01-107-3333
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.625 INCHES NOMINAL |
| FASTENER LENGTH | 0.990 INCHES MINIMUM AND 1.010 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-A108 ASSN STD SINGLE MATERIAL RESPONSE AND ASTM-A103 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

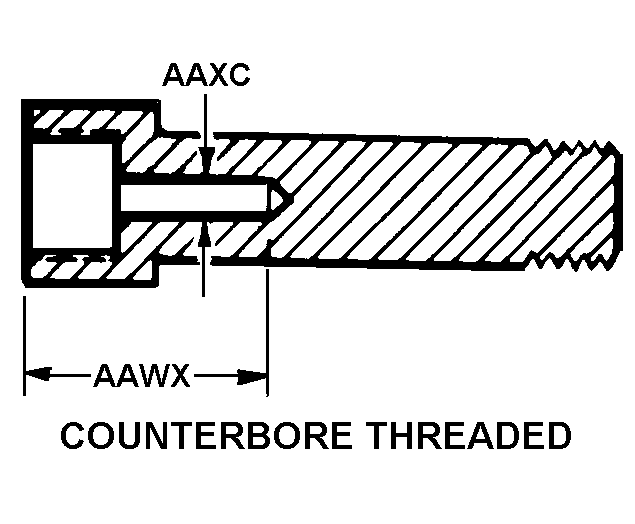

| STYLE DESIGNATOR | B46A COUNTERBORE THREADED |
| CONCENTRIC HOLE DEPTH | 0.400 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.1875 INCHES MINIMUM AND 0.2188 INCHES MAXIMUM |
| THREAD SERIES | UNF COUNTERBORE |
| NOMINAL THREAD SIZE | 0.250 INCHES COUNTERBORE |
| THREADS PER INCH | 28 COUNTERBORE |
| INTERNAL THREAD CLASS | 2B COUNTERBORE |
| INTERNAL THREAD DIRECTION | RIGHT-HAND COUNTERBORE |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.4500 INCHES MINIMUM AND 0.470 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.5625 INCHES MINIMUM |
