Product Details | EYE BOLT
5306-00-913-7713 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: 11700060, 5306-00-913-7713, 00-913-7713, 5306009137713, 009137713
Hardware and Abrasives | Bolts
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
53 | 29 JUN 1966 | 00-913-7713 | 01853 ( BOLT, EYE ) |
Cross Reference | NSN 5306-00-913-7713
Part Number | Cage Code | Manufacturer |
---|---|---|
11700060 | 19205 | SPRINGFIELD ARMORY |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-913-7713
Related Products | NSN 5306-00-913-7713
Technical Data | NSN 5306-00-913-7713
Characteristic | Specifications |
---|---|
THREAD SERIES DESIGNATOR | UNEF |
NOMINAL THREAD DIAMETER | 0.500 INCHES |
THREAD QUANTITY PER INCH | 32 |
THREAD CLASS | 3A |
THREAD DIRECTION | RIGHT-HAND |
THREAD LENGTH | 2.250 INCHES MINIMUM |
MATERIAL | STEEL COMP H11 OVERALL |

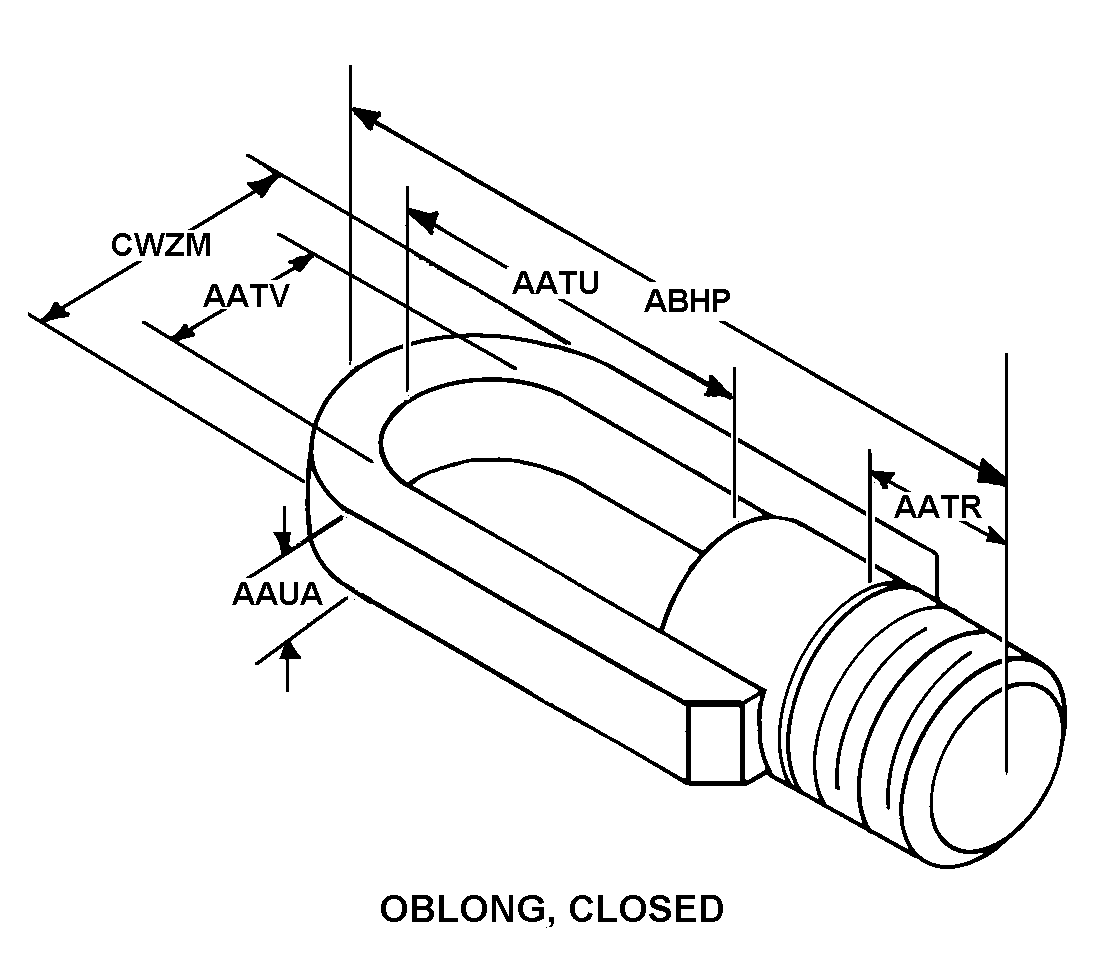

STYLE DESIGNATOR | B14 OBLONG, CLOSED |
SHANK LENGTH | 2.250 INCHES NOMINAL |
EYE LENGTH | 0.990 INCHES MINIMUM AND 1.050 INCHES MAXIMUM |
EYE WIDTH | 0.500 INCHES MINIMUM AND 0.540 INCHES MAXIMUM |
EYE STOCK THICKNESS | 0.280 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
OVERALL LENGTH | 3.620 INCHES MINIMUM AND 3.650 INCHES MAXIMUM |
EYE OUTSIDE WIDTH | 0.876 INCHES MINIMUM AND 0.880 INCHES MAXIMUM |
