Product Details | EYE BOLT
5306-00-903-9648 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: 3F32043101, 3F32043-101, 5306-00-903-9648, 00-903-9648, 5306009039648, 009039648
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-903-9648 | 01853 ( BOLT, EYE ) |
Drawings & Photos | NSN 5306-00-903-9648
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-903-9648
Related Products | NSN 5306-00-903-9648
Technical Data | NSN 5306-00-903-9648
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.850 INCHES MINIMUM |
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

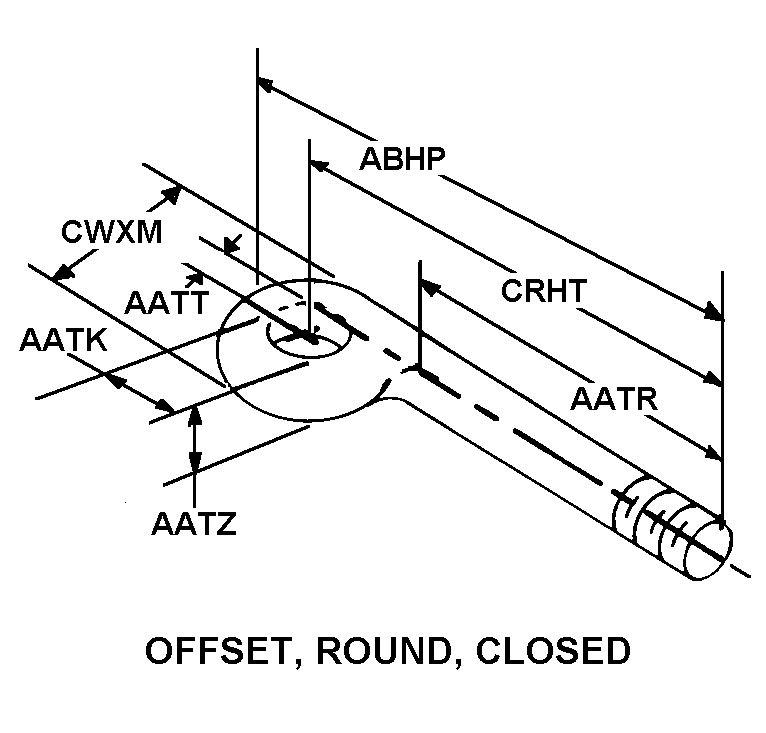

| STYLE DESIGNATOR | B7 OFFSET, ROUND, CLOSED |
| EYE INSIDE DIAMETER | 0.626 INCHES NOMINAL |
| SHANK LENGTH | 6.055 INCHES NOMINAL |
| EYE OFFSET | 0.655 INCHES NOMINAL |
| EYE STOCK DIAMETER | 0.363 INCHES NOMINAL |
| OVERALL LENGTH | 8.315 INCHES NOMINAL |
| DISTANCE FROM CENTER OF EYE TO SHANK END | 7.185 INCHES NOMINAL |
| EYE OUTSIDE WIDTH | 1.640 INCHES NOMINAL |
