NSN 5306-00-377-4119 4001882, 00-377-4119, 003774119
Product Details | INTERNALLY RELIEVED BODY BOLT
5306-00-377-4119 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: 4001882, 5306-00-377-4119, 00-377-4119, 5306003774119, 003774119
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 MAR 1974 | 00-377-4119 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-00-377-4119
Demand History | NSN 5306-00-377-4119
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-377-4119 | 2010-03-74 | 97 | DIBBS |
Cross Reference | NSN 5306-00-377-4119
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4001882 | 00285 | KWIK FILE STORAGE SYSTEMS LLC |
| 4001882 | 02779 | DEMPLER CO |
| 4001882 | 08244 | MOELLER MFG. COMPANY, INC. DIV AIRCRAFT |
| 4001882 | 11449 | TURBO POWER & MARINE SYSTEM INC SUB OF UNITED TECHNOLOGIES CORP |
| 4001882 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-377-4119
Related Products | NSN 5306-00-377-4119
Technical Data | NSN 5306-00-377-4119
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJ |
| NOMINAL THREAD DIAMETER | 0.9375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.275 INCHES NOMINAL |
| FASTENER LENGTH | 1.335 INCHES MINIMUM AND 1.345 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 601 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS6304 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| HARDNESS RATING | 35.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL |

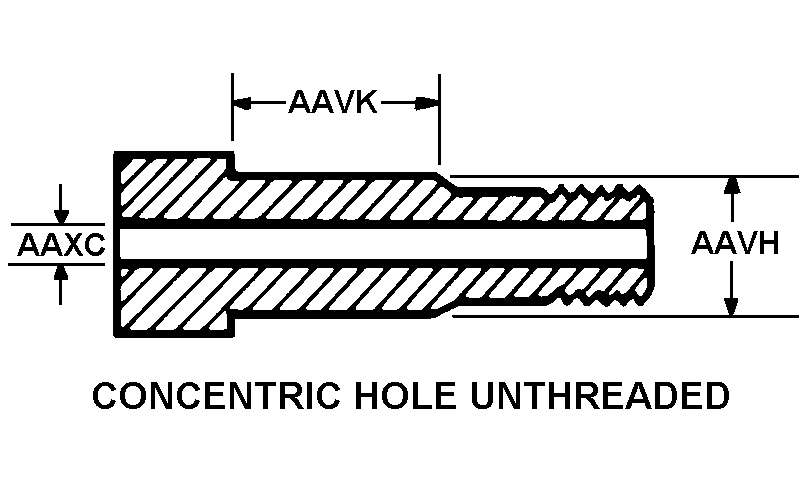

| STYLE DESIGNATOR | B45 CONCENTRIC HOLE UNTHREADED |
| SHOULDER DIAMETER | 0.974 INCHES MINIMUM AND 0.976 INCHES MAXIMUM |
| SHOULDER LENGTH | 1.000 INCHES MINIMUM AND 1.020 INCHES MAXIMUM |
| CONCENTRIC HOLE DIAMETER | 0.470 INCHES MINIMUM AND 0.480 INCHES MAXIMUM |
| HEAD STYLE | C48 FLAT FILLISTER |
| HEAD DIAMETER | 1.465 INCHES MINIMUM AND 1.470 INCHES MAXIMUM |
| HEAD HEIGHT | 0.127 INCHES MINIMUM AND 0.133 INCHES MAXIMUM |
| HOLE CONFIGURATION STYLE | E12 ROUND LONGITUDINAL HOLE |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.470 INCHES MINIMUM AND 0.480 INCHES MAXIMUM |
| SPECIAL FEATURES | INTERNAL HOLE CONFIGURATION HAS ACROSS RECESS SHAPE AS WELL AS THE 0.470-0.480 IN. DIA.;ORIGINAL NAME-BOLT,SPECIAL |
| III END ITEM IDENTIFICATION | P&W F-100,P-100 ENG |
Restrictions/Controls & Freight Information | NSN 5306-00-377-4119
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 574 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-377-4119
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | NZ | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS, F-100–P-100 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
