NSN 5306-00-338-0411 1283393101, 1283393-101, 1292040101
Product Details | INTERNALLY RELIEVED BODY BOLT
5306-00-338-0411 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: 1283393101, 1283393-101, 1292040101, 1292040-101, 5306-00-338-0411, 00-338-0411, 5306003380411, 003380411
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 JAN 1974 | 00-338-0411 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-00-338-0411
Demand History | NSN 5306-00-338-0411
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-338-0411 | 2014-05-126 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-338-0411
Technical Data | NSN 5306-00-338-0411
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.575 INCHES MAXIMUM |
| FASTENER LENGTH | 4.100 INCHES NOMINAL |
| MATERIAL | STEEL COMP XM-13 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | LCP77-1061 36659 MFR REF SINGLE TREATMENT RESPONSE OVERALL |

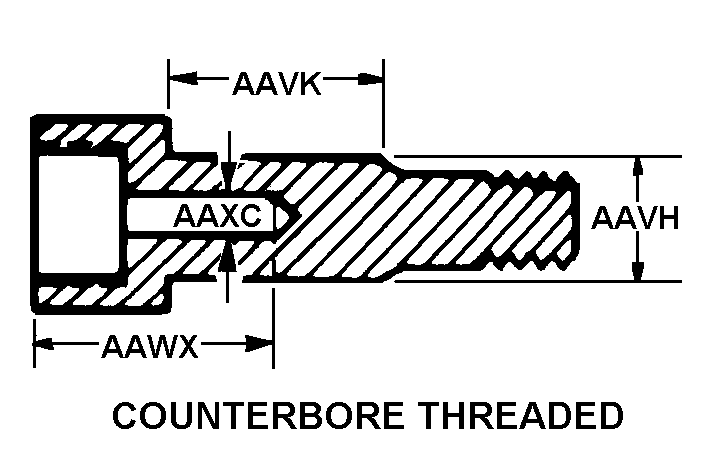

| STYLE DESIGNATOR | B48A COUNTERBORE THREADED |
| SHOULDER DIAMETER | 0.6395 INCHES MINIMUM AND 0.6400 INCHES MAXIMUM |
| SHOULDER LENGTH | 3.325 INCHES MINIMUM AND 3.355 INCHES MAXIMUM |
| CONCENTRIC HOLE DEPTH | 0.700 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.338 INCHES MINIMUM AND 0.345 INCHES MAXIMUM |
| THREAD SERIES | UNJF COUNTERBORE |
| NOMINAL THREAD SIZE | 0.375 INCHES COUNTERBORE |
| THREADS PER INCH | 24 COUNTERBORE |
| INTERNAL THREAD CLASS | 3B COUNTERBORE |
| INTERNAL THREAD DIRECTION | RIGHT-HAND COUNTERBORE |
| INTERNAL THREAD LENGTH | 0.450 INCHES NOMINAL COUNTERBORE |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.320 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.928 INCHES MINIMUM AND 0.940 INCHES MAXIMUM |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 3.975 INCHES NOMINAL FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.143 INCHES MINIMUM AND 0.149 INCHES MAXIMUM FIRST HOLE |
| TEST DATA DOCUMENT | 36659-LCP72-1076 SPECIFICATION |
| CRITICALITY CODE JUSTIFICATION | AAVH |
Restrictions/Controls & Freight Information | NSN 5306-00-338-0411
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-338-0411
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
