Product Details | EYE BOLT
5306-00-297-4094 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: SCB93159, 105333, 5306-00-297-4094, 00-297-4094, 5306002974094, 002974094
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-297-4094 | 01853 ( BOLT, EYE ) |
Drawings & Photos | NSN 5306-00-297-4094
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-297-4094
Related Products | NSN 5306-00-297-4094
Technical Data | NSN 5306-00-297-4094
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.875 INCHES |
| THREAD QUANTITY PER INCH | 9 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.250 INCHES MINIMUM |
| MATERIAL | STEEL COMP 303 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

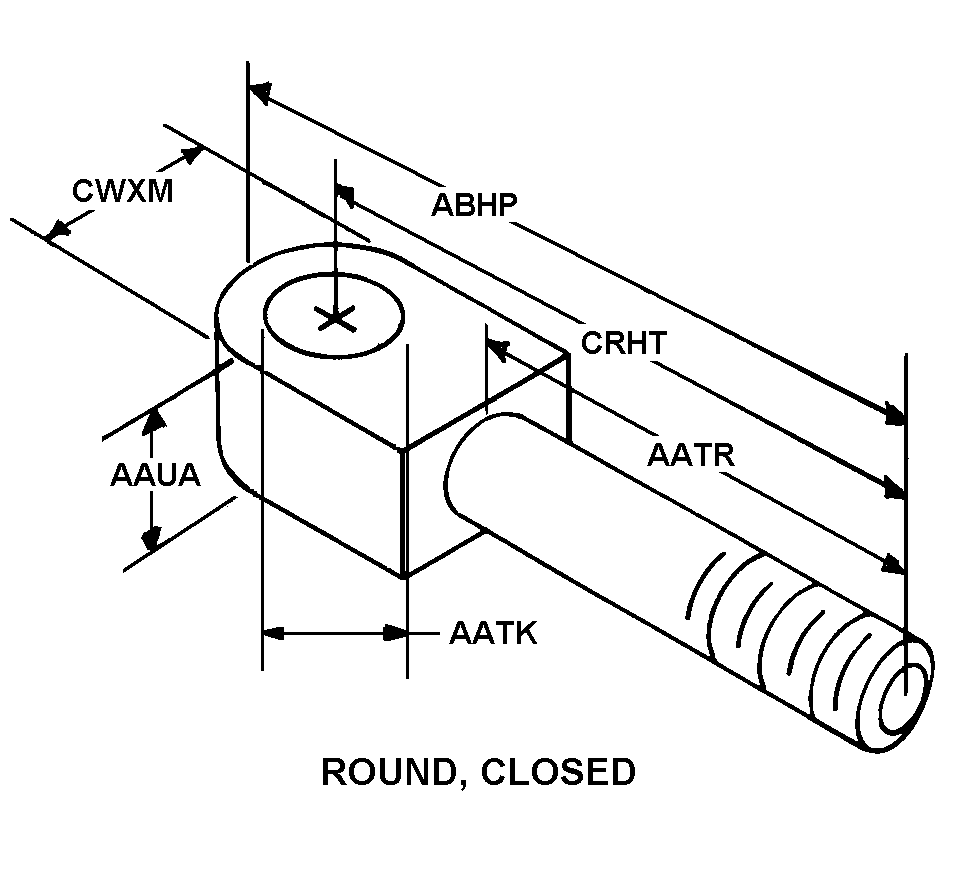

| STYLE DESIGNATOR | B13 ROUND, CLOSED |
| EYE INSIDE DIAMETER | 0.502 INCHES MINIMUM AND 0.503 INCHES MAXIMUM |
| SHANK LENGTH | 1.375 INCHES NOMINAL |
| EYE STOCK THICKNESS | 0.490 INCHES MINIMUM AND 0.495 INCHES MAXIMUM |
| OVERALL LENGTH | 2.531 INCHES NOMINAL |
| EYE OUTSIDE WIDTH | 1.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 80063 |
| DESIGN CONTROL REFERENCE | SCB93159 |
Restrictions/Controls & Freight Information | NSN 5306-00-297-4094
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
