NSN 5306-00-206-6337 AUT0110340CA, CEGT90000113, CEGT90000-11-3
Product Details | INTERNALLY RELIEVED BODY BOLT
5306-00-206-6337 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: AUT0110340CA, CEGT90000113, CEGT90000-11-3, GLN151828338, GLN15182-833-8, KF52743100SH4PC814, KF52-743-100SH4PC81-4, KF52743100SH4PC824, KF52-743-100SH4PC82-4, 21556, 2155-6, 22003167146PC814, 2200-3167146PC81-4, 22003167146PC824, 2200-3167146PC82-4, 5306-00-206-6337, 00-206-6337, 5306002066337, 002066337
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-206-6337 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-00-206-6337
Cross Reference | NSN 5306-00-206-6337
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2155-6 | 41387 | SIEMENS ENERGY & AUTOMATION |
| 2155-6 | U2445 | SIEMENS MOORE PROCESS AUTOMATION |
| 2200-3167146PC81-4 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 2200-3167146PC82-4 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| AUT0110340CA | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| CEGT90000-11-3 | 06659 | TESTEK, INC. |
| GLN15182-833-8 | 06659 | TESTEK, INC. |
| KF52-743-100SH4PC81-4 | 04220 | GPE CONTROLS, INC DBA SHAND & JURS |
| KF52-743-100SH4PC82-4 | 04220 | GPE CONTROLS, INC DBA SHAND & JURS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-206-6337
Related Products | NSN 5306-00-206-6337
Technical Data | NSN 5306-00-206-6337
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.562 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.219 INCHES MINIMUM |
| FASTENER LENGTH | 0.328 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |

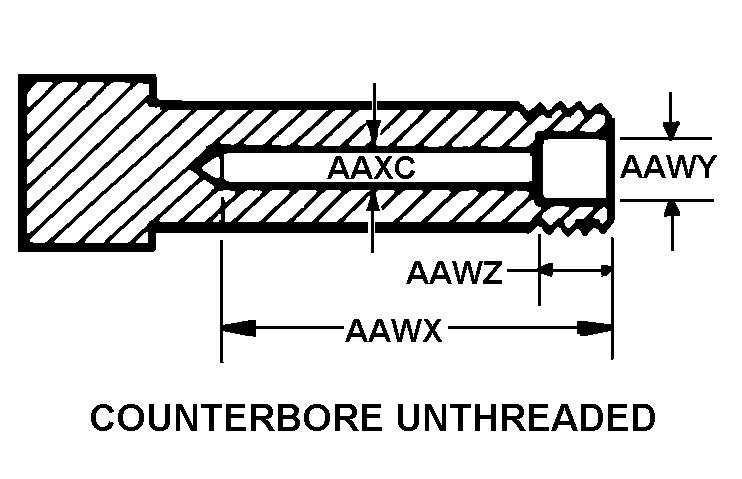

| STYLE DESIGNATOR | B50 COUNTERBORE UNTHREADED |
