NSN 5306-00-151-2319 AN2362, AN23-62, 00-151-2319
Product Details | CLEVIS BOLT
5306-00-151-2319 An externally threaded fastener whose threaded and unthreaded portions are of one nominal diameter and are separated by a narrow circumferential groove. The head is designed to be held or driven with an inserted driver. Excludes BOLT, SHEAR.
Part Alternates: AN2362, AN23-62, 5306-00-151-2319, 00-151-2319, 5306001512319, 001512319
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-151-2319 | 06662 ( BOLT, CLEVIS ) |

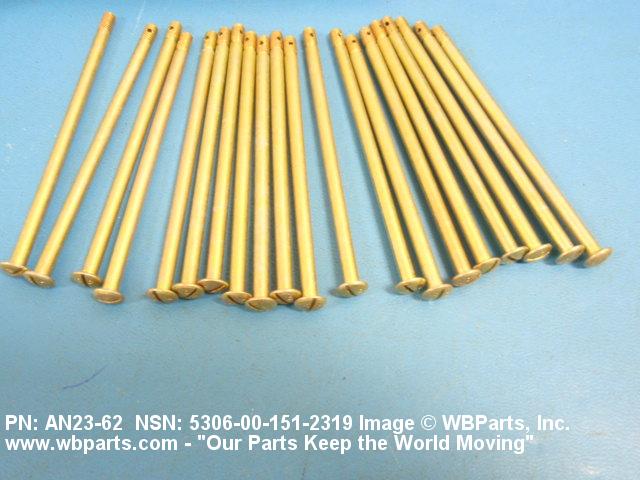

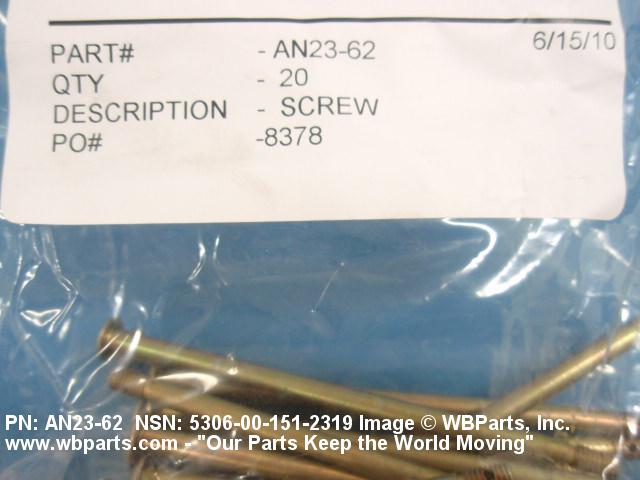

Drawings & Photos | NSN 5306-00-151-2319
Demand History | NSN 5306-00-151-2319
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN2362 | 2010-04-119 | 20 | United States |
Cross Reference | NSN 5306-00-151-2319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN23-62 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-151-2319
Related Products | NSN 5306-00-151-2319
Technical Data | NSN 5306-00-151-2319
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.344 INCHES NOMINAL |
| FASTENER LENGTH | 3.906 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-6812 MIL SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SINGLE SHEAR STRENGTH | 2125 POUNDS PER SQUARE INCH |
| HEAD STYLE | B30 BUTTON |
| HEAD DIAMETER | 0.375 INCHES NOMINAL |
| HEAD HEIGHT | 0.094 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D14 SLOT |
| GROOVE DIAMETER | 0.141 INCHES NOMINAL |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 3.750 INCHES NOMINAL FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.070 INCHES MINIMUM AND 0.080 INCHES MAXIMUM FIRST HOLE |
| DEPARTURE FROM CITED DOCUMENT | THREAD T PER MIL-S-7742 EXCEPT MAJOR DIA IS NOT TO EXCEED MAX ALLOW SHANK BOLT DIA |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN23-62 |
