NSN 5306-00-151-1965 AN2313, AN23-13, 27847A
Product Details | CLEVIS BOLT

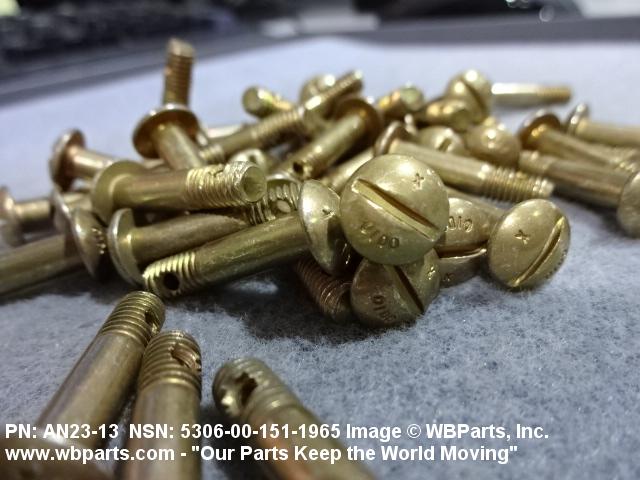

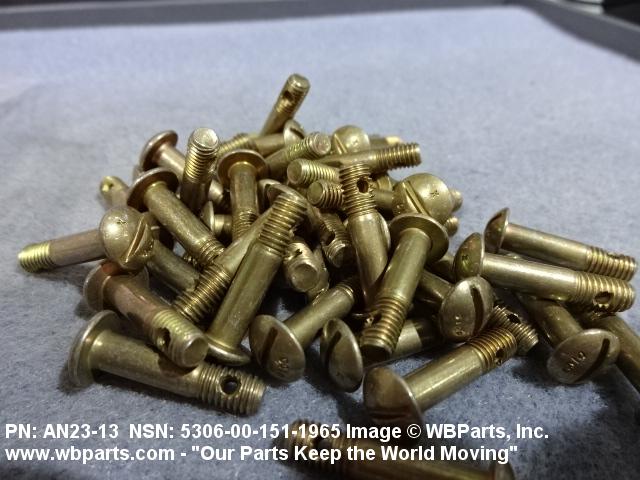

5306-00-151-1965 An externally threaded fastener whose threaded and unthreaded portions are of one nominal diameter and are separated by a narrow circumferential groove. The head is designed to be held or driven with an inserted driver. Excludes BOLT, SHEAR.
Part Alternates: AN2313, AN23-13, 27847A, 278-47A, 400 675, 400675, 5306-00-151-1965, 00-151-1965, 5306001511965, 001511965
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-151-1965 | 06662 ( BOLT, CLEVIS ) |
Drawings & Photos | NSN 5306-00-151-1965
Demand History | NSN 5306-00-151-1965
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN2313 | 2024-07-200 | 4 | US |
| AN2313 | 2023-10-284 | 8 | US |
| AN2313 | 2020-05-149 | 140 | United States |
| 5306-00-151-1965 | 2014-07-208 | 2655 | DIBBS |
| 5306-00-151-1965 | 2013-10-295 | 1947 | DIBBS |
| 5306-00-151-1965 | 2009-06-175 | 3552 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-151-1965
Related Products | NSN 5306-00-151-1965
Technical Data | NSN 5306-00-151-1965
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

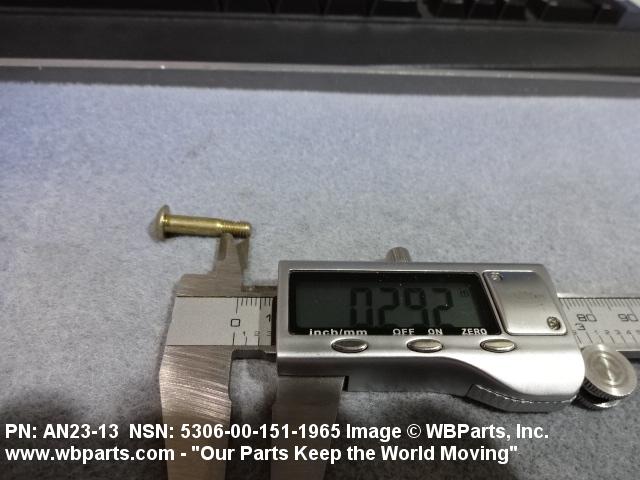

| THREAD LENGTH | 0.297 INCHES MINIMUM |

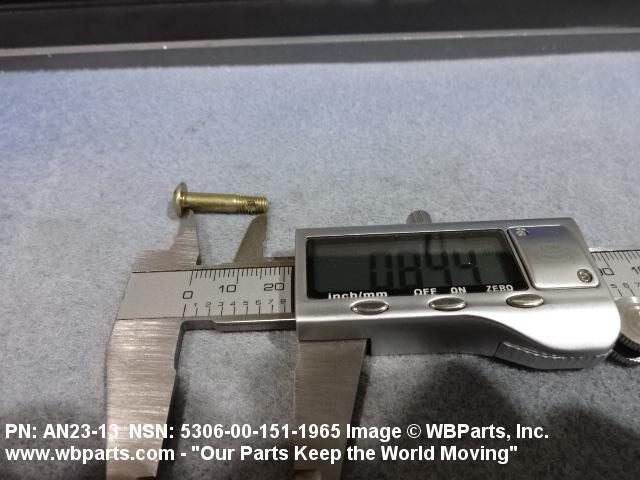

| FASTENER LENGTH | 0.844 INCHES NOMINAL |
| MATERIAL | STEEL COMP 8740 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 4140 OR STEEL COMP 4130 OR STEEL COMP 4037 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 5TH MATERIAL RESPONSE OR MIL-S-8695 MIL SPEC 6TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SINGLE SHEAR STRENGTH | 2125 POUNDS PER SQUARE INCH |
| HEAD STYLE | B30 BUTTON |
| HEAD DIAMETER | 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |
| HEAD HEIGHT | 0.078 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D14 SLOT |
| GROOVE DIAMETER | 0.141 INCHES NOMINAL |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 0.688 INCHES NOMINAL FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.070 INCHES MINIMUM AND 0.080 INCHES MAXIMUM FIRST HOLE |
| DEPARTURE FROM CITED DOCUMENT | THREAD T PER M1L-S-7742 EXCEPT MAJOR D1A IS NOT TO EXCEED MAX ALLOW BOLT SHANK D1A |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN23-13 |
