NSN 5306-00-108-1592 4042007, 00-108-1592, 001081592
Product Details | CLEVIS BOLT
5306-00-108-1592 An externally threaded fastener whose threaded and unthreaded portions are of one nominal diameter and are separated by a narrow circumferential groove. The head is designed to be held or driven with an inserted driver. Excludes BOLT, SHEAR.
Part Alternates: 4042007, 5306-00-108-1592, 00-108-1592, 5306001081592, 001081592
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 AUG 1968 | 00-108-1592 | 06662 ( BOLT, CLEVIS ) |

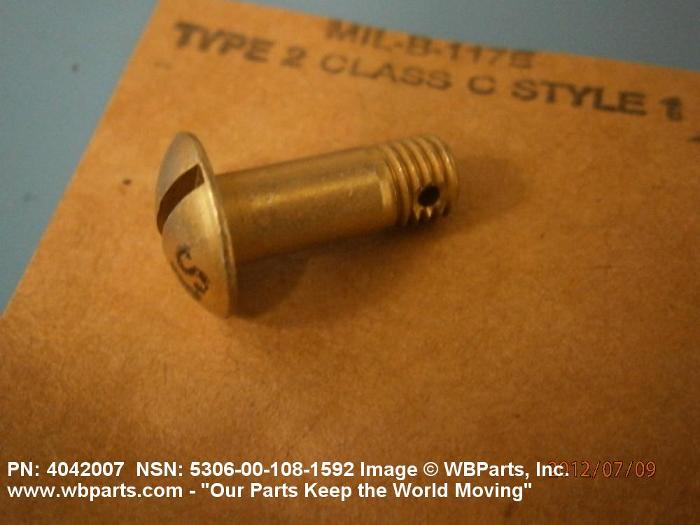

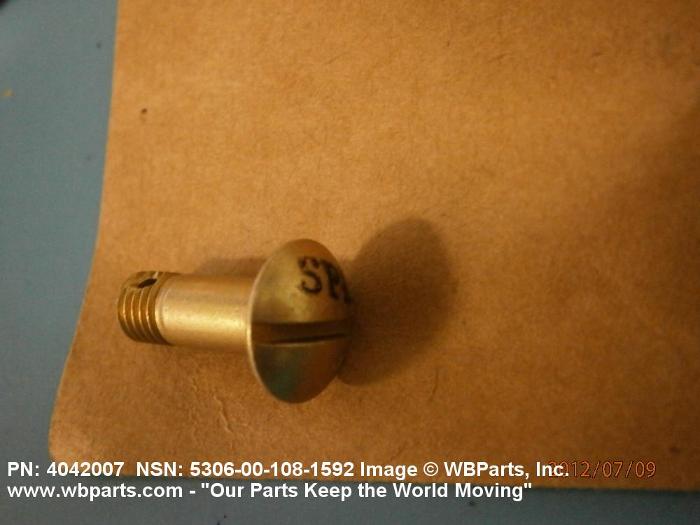

Drawings & Photos | NSN 5306-00-108-1592
Demand History | NSN 5306-00-108-1592
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-108-1592 | 2012-06-178 | 4 | United States |
| 5306-00-108-1592 | 2012-06-174 | 4 | United States |
| 4042007 | 2012-06-172 | 4 | United States |
Cross Reference | NSN 5306-00-108-1592
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4042007 | 71379 | CESSNA AIRCRAFT COMPANY |
