NSN 5306-00-151-1420 AN4148, AN4-148, AN414A

Product Details | MACHINE BOLT

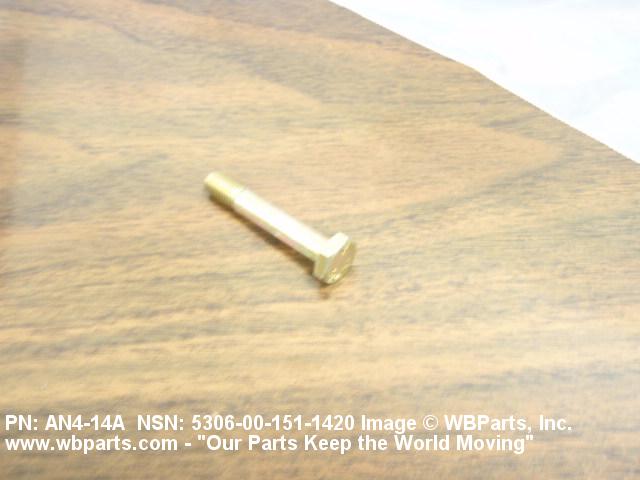

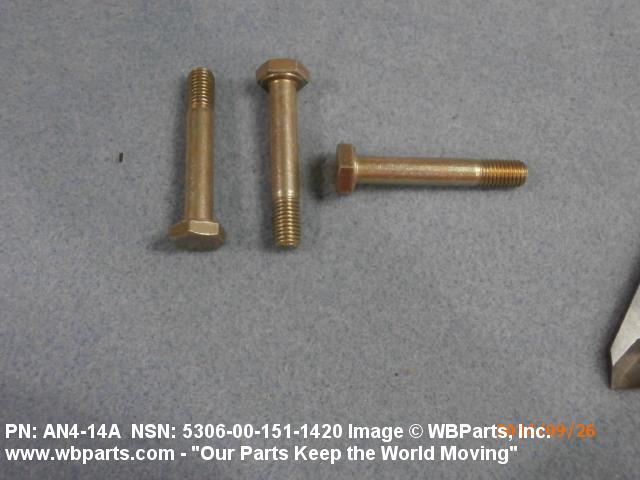

5306-00-151-1420 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AN4148, AN4-148, AN414A, AN4-14A, 2010300, 400 009, 400009, 5306-00-151-1420, 00-151-1420, 5306001511420, 001511420

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-151-1420	01847 ( BOLT, MACHINE )

Drawings & Photos | NSN 5306-00-151-1420

Part Number	Request Date	QTY	Origin
5306-00-151-1420	2024-07-203	3	DIBBS
AN414A	2024-03-72	1	US
AN414A	2022-01-03	200	United States
AN414A	2021-10-278	45	United States
AN414A	2021-02-33	10	Taiwan
5306-00-151-1420	2018-11-311	384	US
5306-00-151-1420	2018-08-222	8	United States
5306-00-151-1420	2018-08-218	8	United States
AN414A	2017-03-80	25	United States
AN414A	2017-03-79	10	United States
5306-00-151-1420	2017-03-79	8	United States
5306-00-151-1420	2016-08-243	487	DIBBS
AN414A	2016-07-203	25	United States
AN414A	2016-01-22	150	us
AN414A	2015-06-156	4	United States
AN4-14A	2015-05-138	7	United States
AN4-14A	2015-05-138	7	United States
AN414A	2015-05-124	5	United States
AN4-14A	2014-05-142	2500	United States
AN414A	2014-03-63	200	Singapore
5306001511420	2012-11-311	30	Singapore
AN4-14A	2012-11-310	50
AN414A	2011-10-304	6	United States
5306-00-151-1420	2010-09-271	100	United States
5306-00-151-1420	2010-09-270	100	United States
AN414A	2009-11-328	50	ZA
AN414A	2009-11-313	2000	United States
AN414A	2009-09-252	10	Colombia
AN414A	2009-05-138	120	China
AN414A	2007-05-123	4	MX

Cross Reference | NSN 5306-00-151-1420

Part Number	Cage Code	Manufacturer
2010300	001JK	EMBRAER S/A
2010300	FB459	EMBRAER AVIATION INTERNATIONAL
2010300	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
400 009	77294	PIPER AIRCRAFT INC.
5306001511420	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
AN4-148	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
AN4-14A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-151-1420

Compare

Related Products | NSN 5306-00-151-1420

5306-00-151-1421, 5306-00-151-1422, 5306-00-151-1423, 5306-00-151-1424, 5306-00-151-1425

Technical Data | NSN 5306-00-151-1420

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

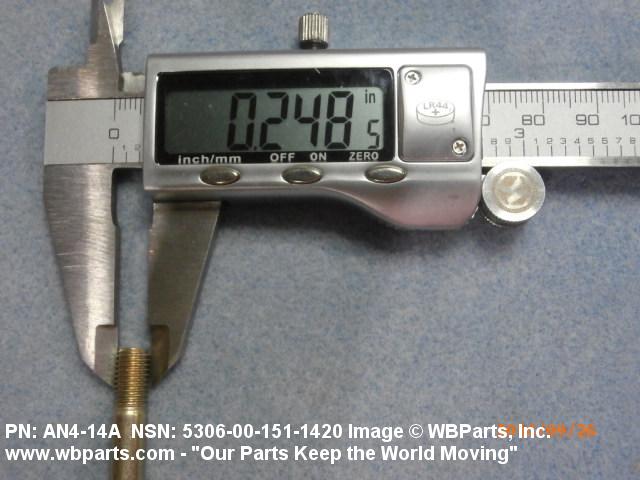

NOMINAL THREAD DIAMETER	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

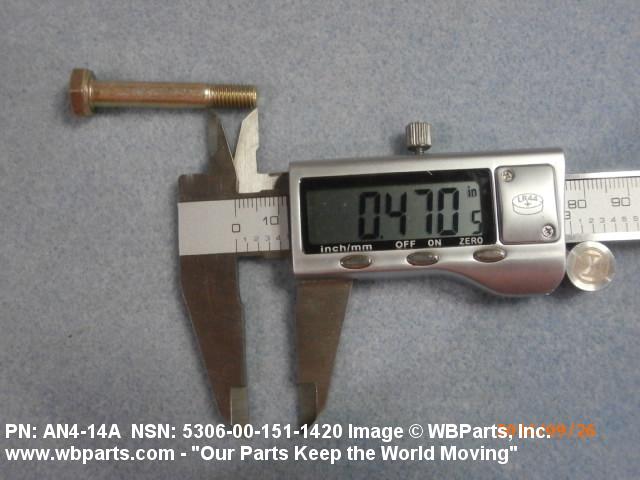

THREAD LENGTH	0.469 INCHES MINIMUM
FASTENER LENGTH	1.531 INCHES NOMINAL
MATERIAL	STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-B-6812 MIL SPEC ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	Q-P-416,TYPE 2,CLASS 3 FED SPEC 13TH TREATMENT RESPONSE OVERALL
HARDNESS RATING	26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON
HEAD HEIGHT	0.140 INCHES MINIMUM AND 0.172 INCHES MAXIMUM

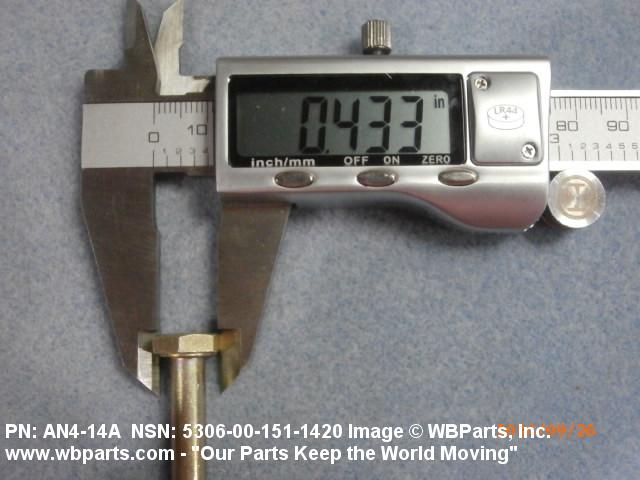

WIDTH BETWEEN FLATS	0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM

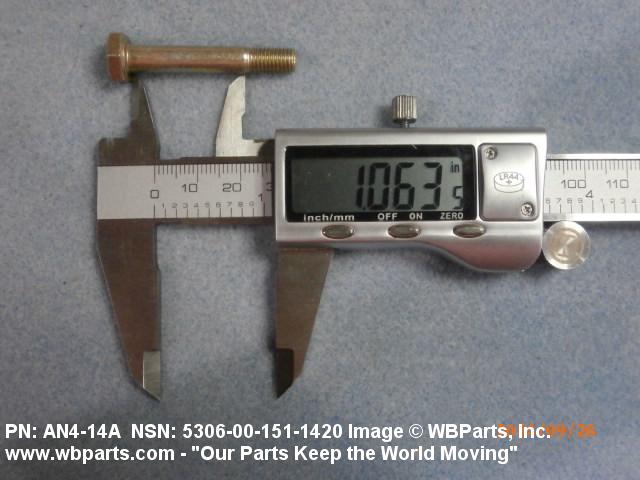

GRIP LENGTH	1.062 INCHES NOMINAL
