Product Details | INTERNALLY RELIEVED BODY BOLT
5306-00-131-9400 An externally threaded fastener whose external threaded portion is of one nominal diameter. It has a concentric hole along the longitudinal centerline which may extend a part or the full length of the bolt. The concentric hole along the centerline may be counterbored and/or internally threaded at the head end or the bolt end. The head is designed to be held or driven by an external and/or internal driver. For items having a hole(s) perpendicular to the axis which meet the concentric hole along the longitudinal centerline, see BOLT, FLUID PASSAGE.
Part Alternates: AA229, 5306-00-131-9400, 00-131-9400, 5306001319400, 001319400
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-131-9400 | 06676 ( BOLT, INTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5306-00-131-9400
Cross Reference | NSN 5306-00-131-9400
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AA229 | 29201 | JOHN DEER CONSUMER PRODUCTS INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5306-00-131-9400
5306-00-132-1367, 5306-00-132-1398, 5306-00-132-1458, 5306-00-132-1510, 5306-00-132-1512
Technical Data | NSN 5306-00-131-9400
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.750 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 3.750 INCHES MAXIMUM |
| FASTENER LENGTH | 4.000 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |

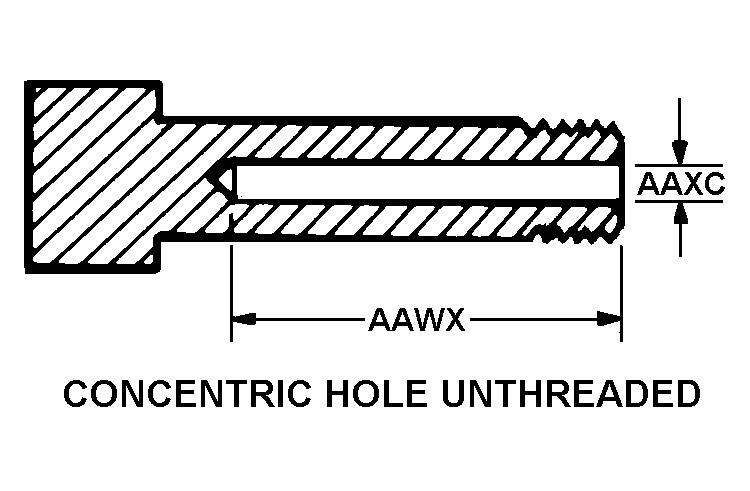

| STYLE DESIGNATOR | B41 CONCENTRIC HOLE UNTHREADED |
| CONCENTRIC HOLE DEPTH | 0.500 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.391 INCHES NOMINAL |
| THREAD SERIES | UNF CONCENTRIC HOLE |
| NOMINAL THREAD SIZE | 0.437 INCHES CONCENTRIC HOLE |
| THREADS PER INCH | 20 CONCENTRIC HOLE |
| INTERNAL THREAD CLASS | 2B CONCENTRIC HOLE |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.562 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 1.000 INCHES NOMINAL |
| SPECIAL FEATURES | INTERNAL THO IS LH |
